Engine Firing Order - 4.7L V-8

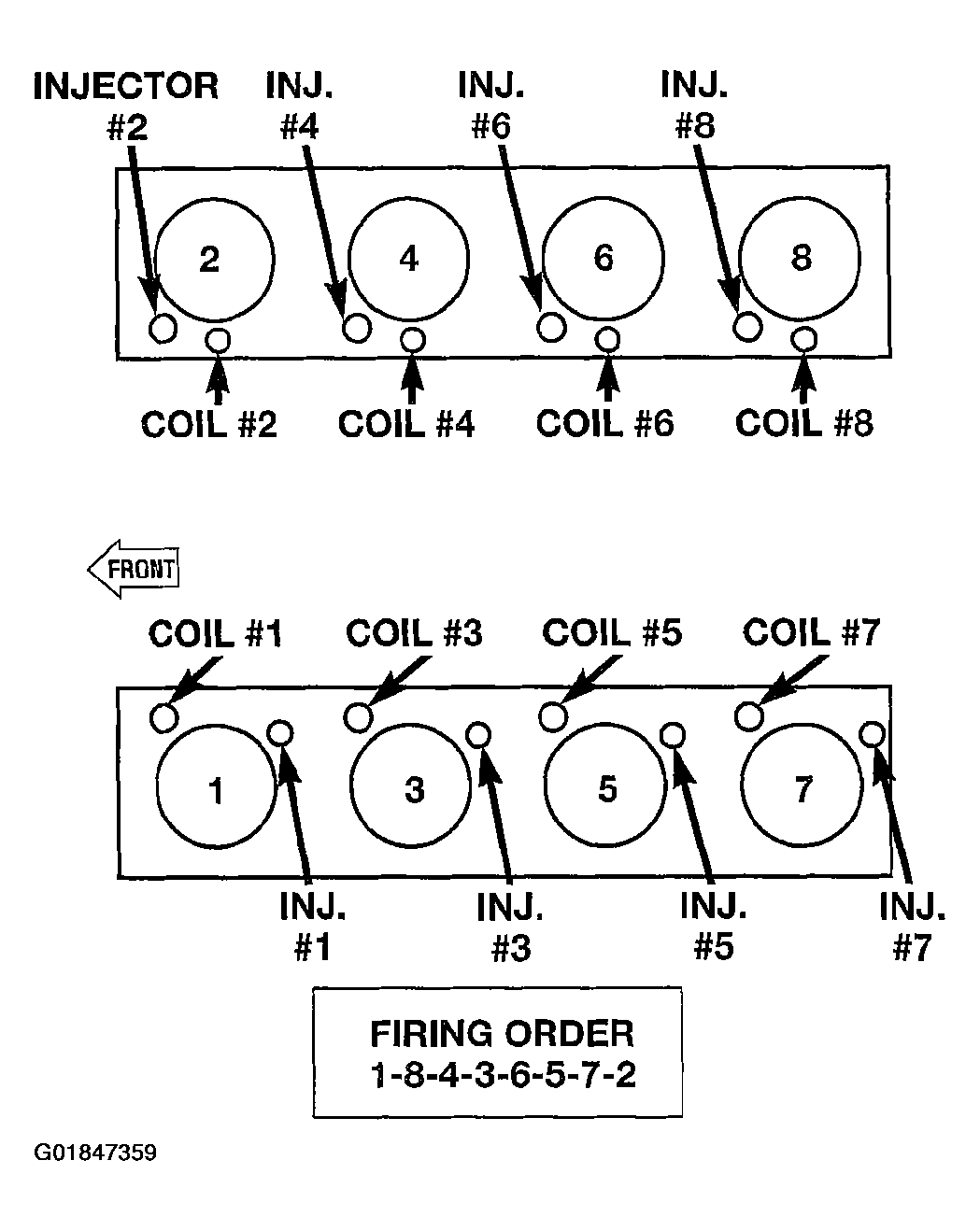

Fig 1: Firing Order (4.7L)

G01847359

Courtesy of DAIMLERCHRYSLER CORP.
