U0199-Lost Communication With Driver Door Module: Notes

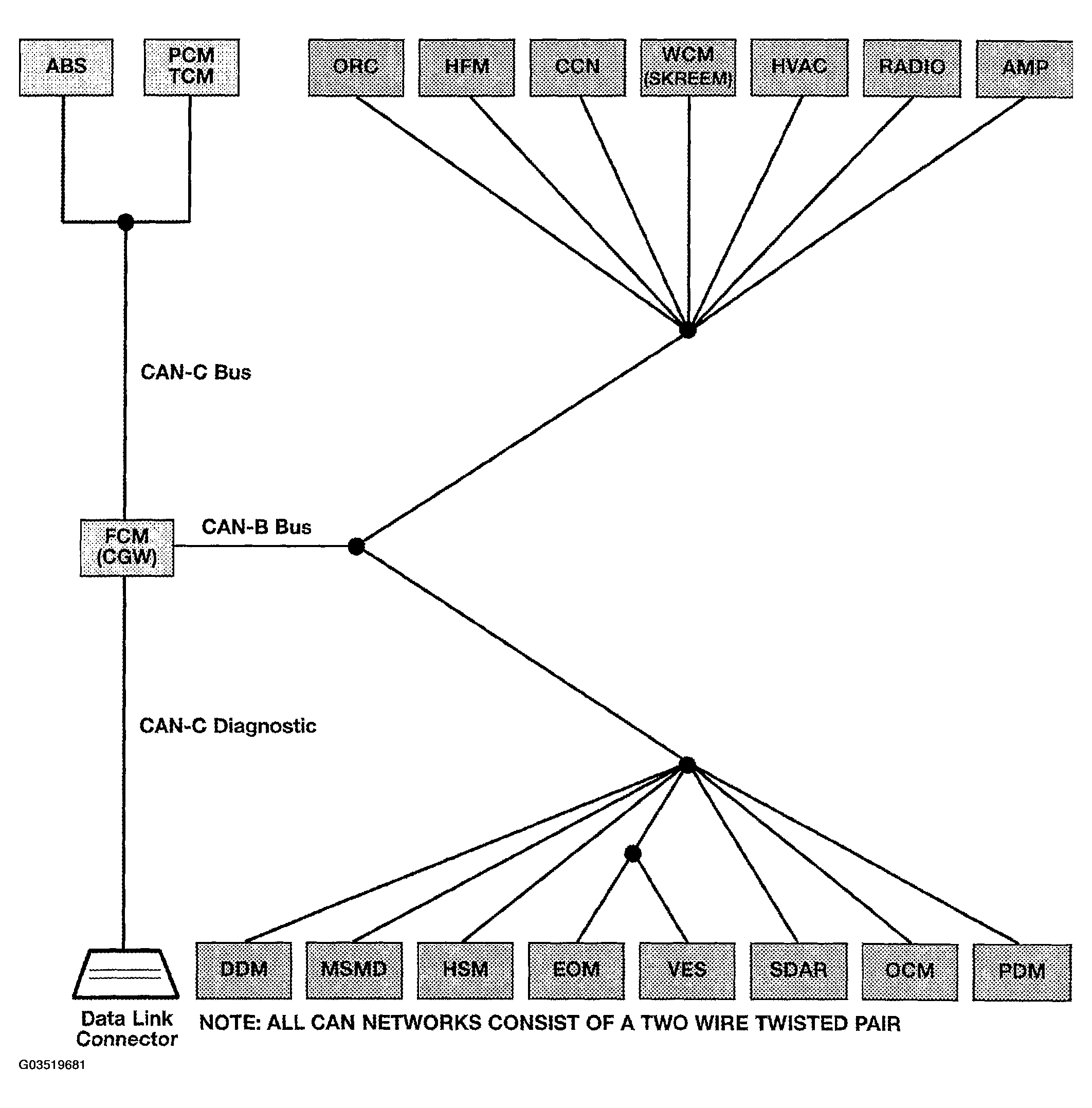

Fig 1: U0199-Lost Communication With Driver Door Module Diagram

Courtesy of DAIMLERCHRYSLER CORP.

For a complete wiring diagram Refer to  SYSTEM WIRING DIAGRAMS  .

• When Monitored:
  • With the ignition on
  • Battery voltage between 10 and 16 volts
  • IOD fuse installed
  • FCM is configured correctly
• Set Condition:

  Bus messages not received from the DDM for approximately 2 to 5 seconds.

Possible Causes

1. CAN B BUS CIRCUITS OPEN OR SHORTED
2. DTCS RELATED TO BATTERY VOLTAGE, IGNITION, OR VIN MESSAGES
3. FCM NOT CONFIGURED CORRECTLY
4. DRIVER MEMORY MIRROR MODULE
5. DRIVER MEMORY MIRROR MODULE POWER AND GROUND
6. MODULE THAT SET THE DTC
