U0196-Lost Communication With Vehicle Entertainment Control Module: Notes

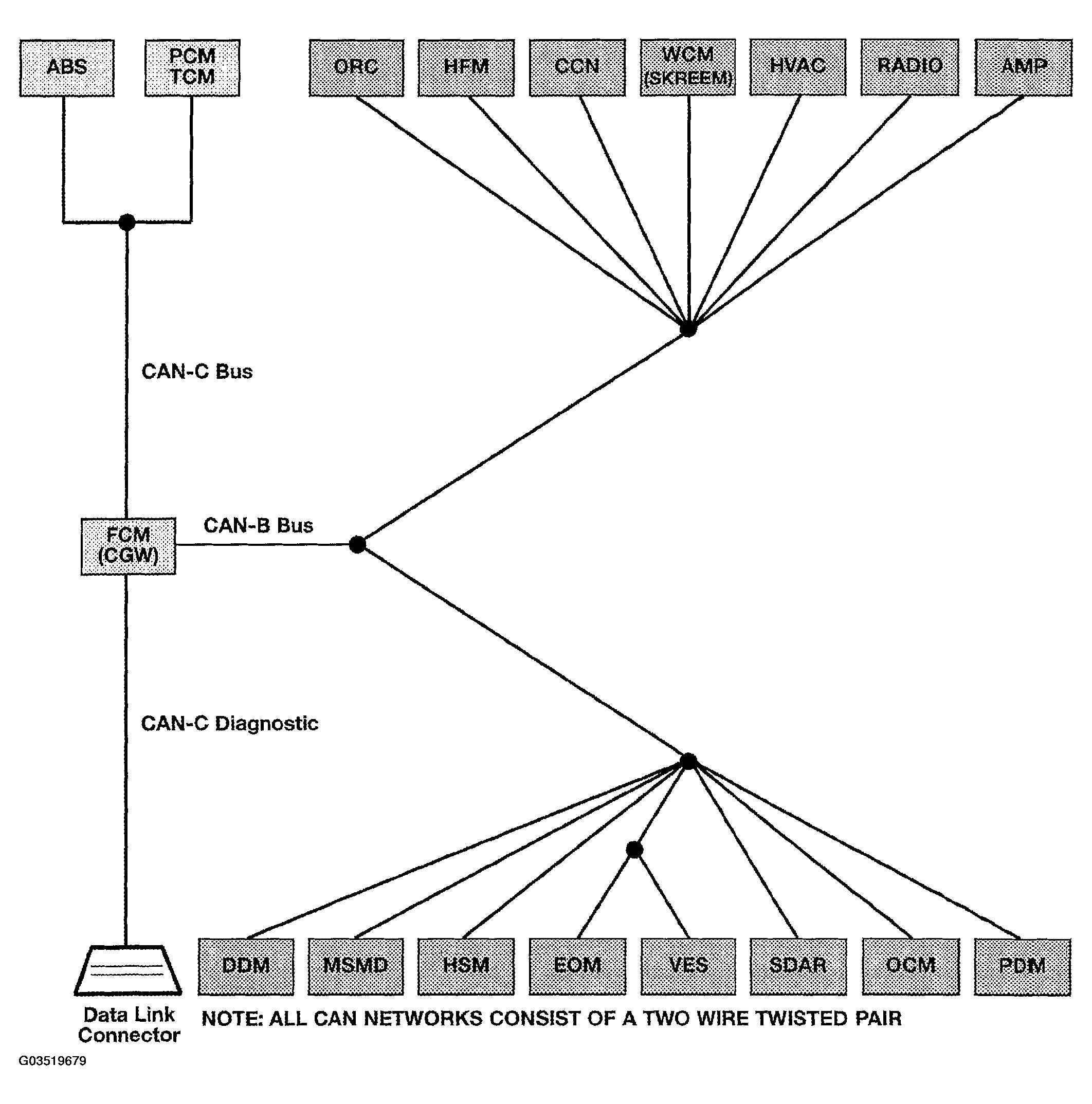

Fig 1: U0196-Lost Communication With Vehicle Entertainment Control Module Diagram

Courtesy of DAIMLERCHRYSLER CORP.

For a complete wiring diagram Refer to  SYSTEM WIRING DIAGRAMS  .

• When Monitored:
  • With the ignition on
  • Battery voltage between 10 and 16 volts
  • IOD fuse installed
  • FCM is configured correctly.
• Set Condition:

  Bus messages not received from the vehicle entertainment system (DVD player) for approximately 2 to 5 seconds.

Possible Causes

1. CAN B BUS CIRCUITS OPEN OR SHORTED
2. DTCS RELATED TO BATTERY VOLTAGE, IGNITION, OR VIN MESSAGES
3. FCM NOT CONFIGURED CORRECTLY
4. MONITOR/DVD MEDIA SYSTEM (DVD PLAYER)
5. MONITOR/DVD MEDIA SYSTEM (DVD PLAYER) POWER AND GROUND
6. MODULE THAT SET THIS DTC
