U0164-Lost Communication With HVAC Control Module: Notes

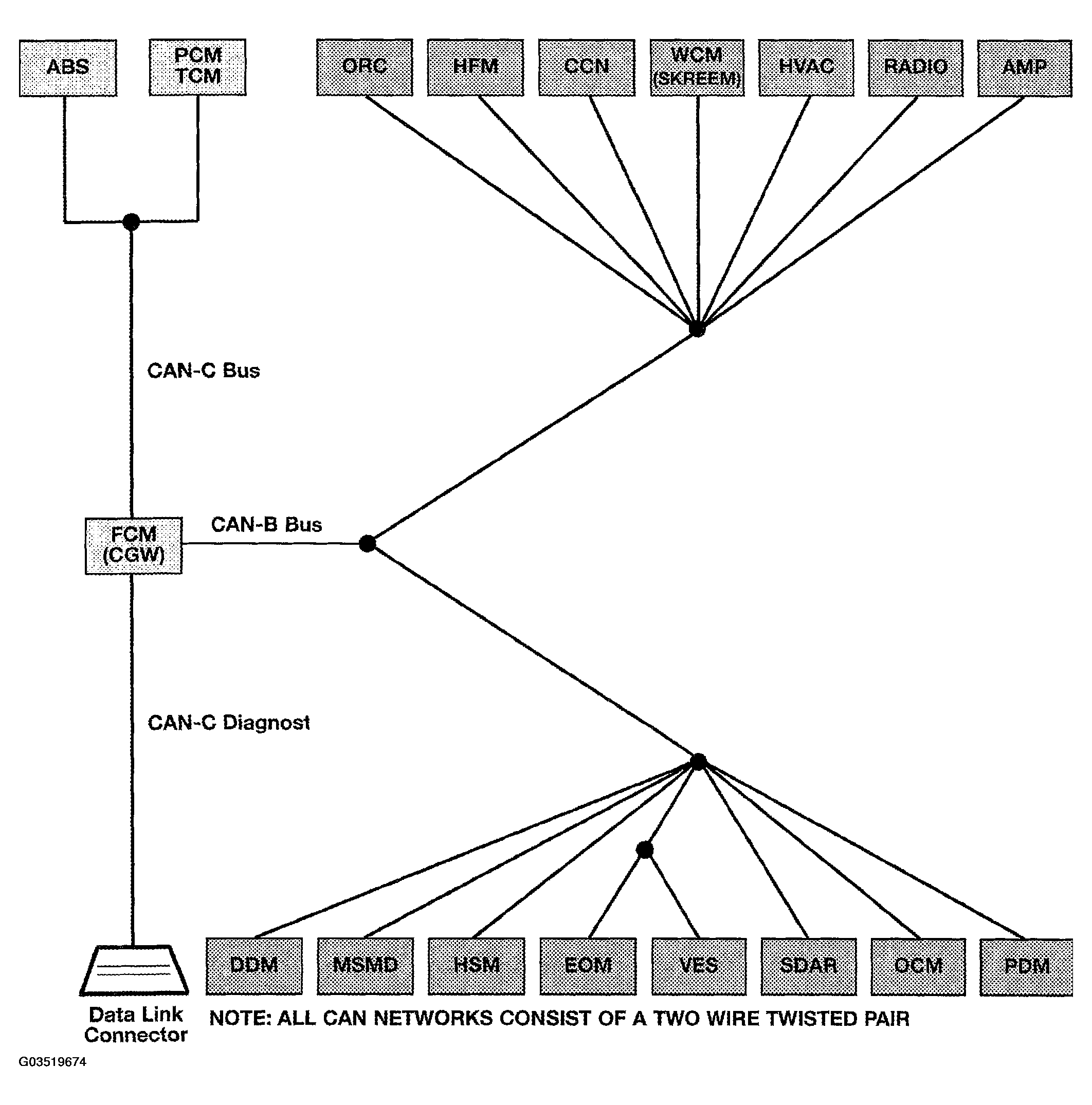

Fig 1: U0164-Lost Communication With HVAC Control Module Diagram

Courtesy of DAIMLERCHRYSLER CORP.

For a complete wiring diagram Refer to  SYSTEM WIRING DIAGRAMS  .

• When Monitored:
  • With the ignition on
  • Battery voltage between 10 and 16 volts
  • IOD fuse installed
  • FCM is configured correctly
• Set Condition:

  Bus messages not received from the A/C Heater Control (HVAC) for approximately 2 to 5 seconds.

Possible Causes

1. CAN B BUS CIRCUITS OPEN OR SHORTED
2. DTCS RELATED TO BATTERY VOLTAGE, IGNITION/OR VIN MESSAGES
3. FCM NOT CONFIGURED CORRECTLY
4. A/C HEATER CONTROL
5. A/C HEATER CONTROLS POWER AND GROUND
6. MODULE THAT SET THIS DTC
