Module-Heated Seat Connector End View

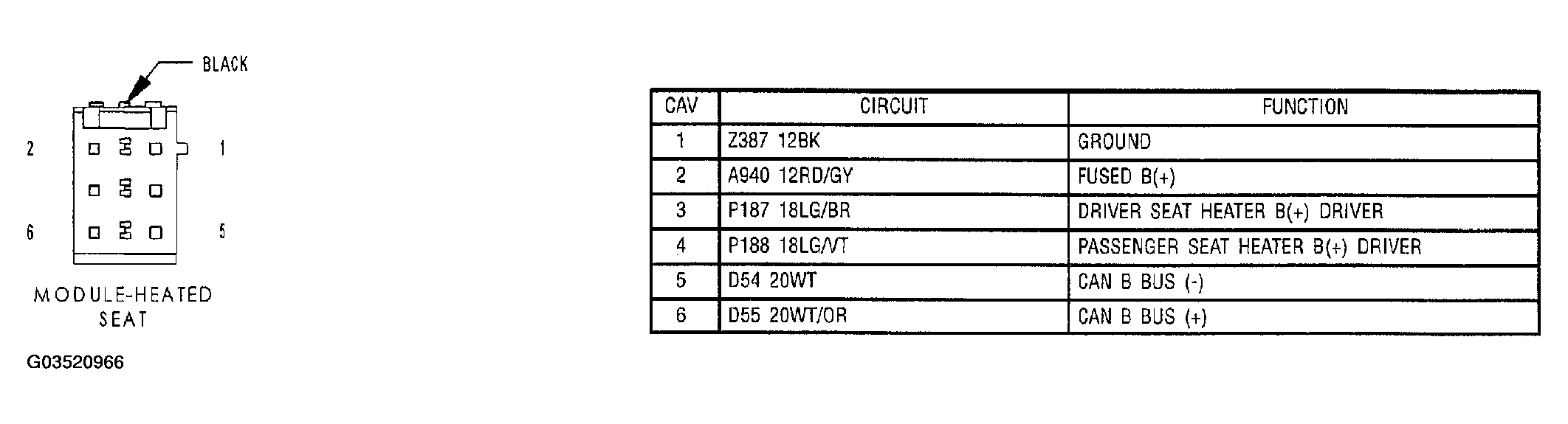

Fig 1: Heated Seat Module Connector End View

G03520966

Courtesy of DAIMLERCHRYSLER CORP.
