P1205-Rear Traction Control Inlet Valve Control Circuit Low: Notes

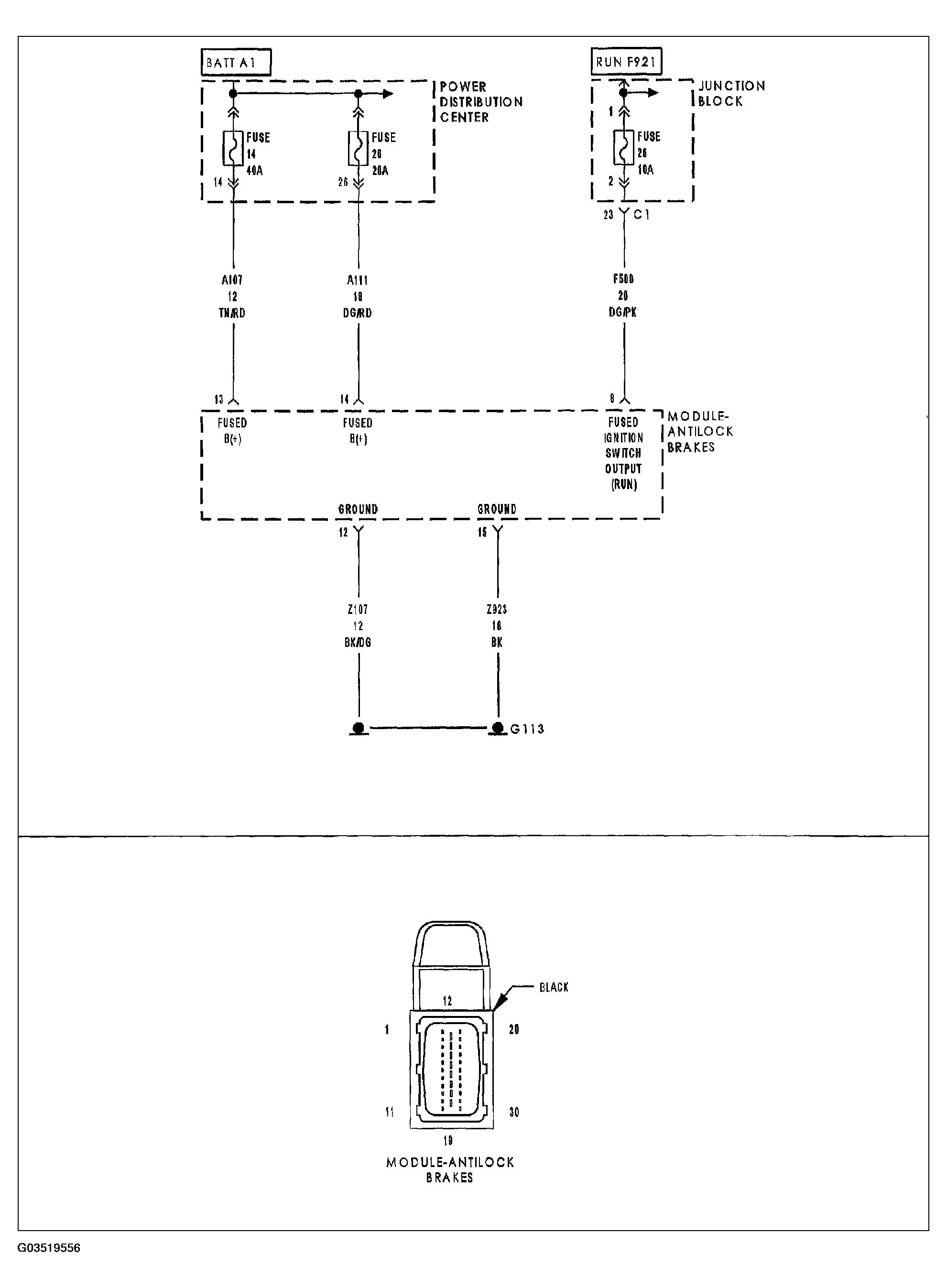

Fig 1: P1205-Rear Traction Control Inlet Valve Control Circuit Low Diagram

G03519556

Courtesy of DAIMLERCHRYSLER CORP.
