Module-Seat Memory: Description

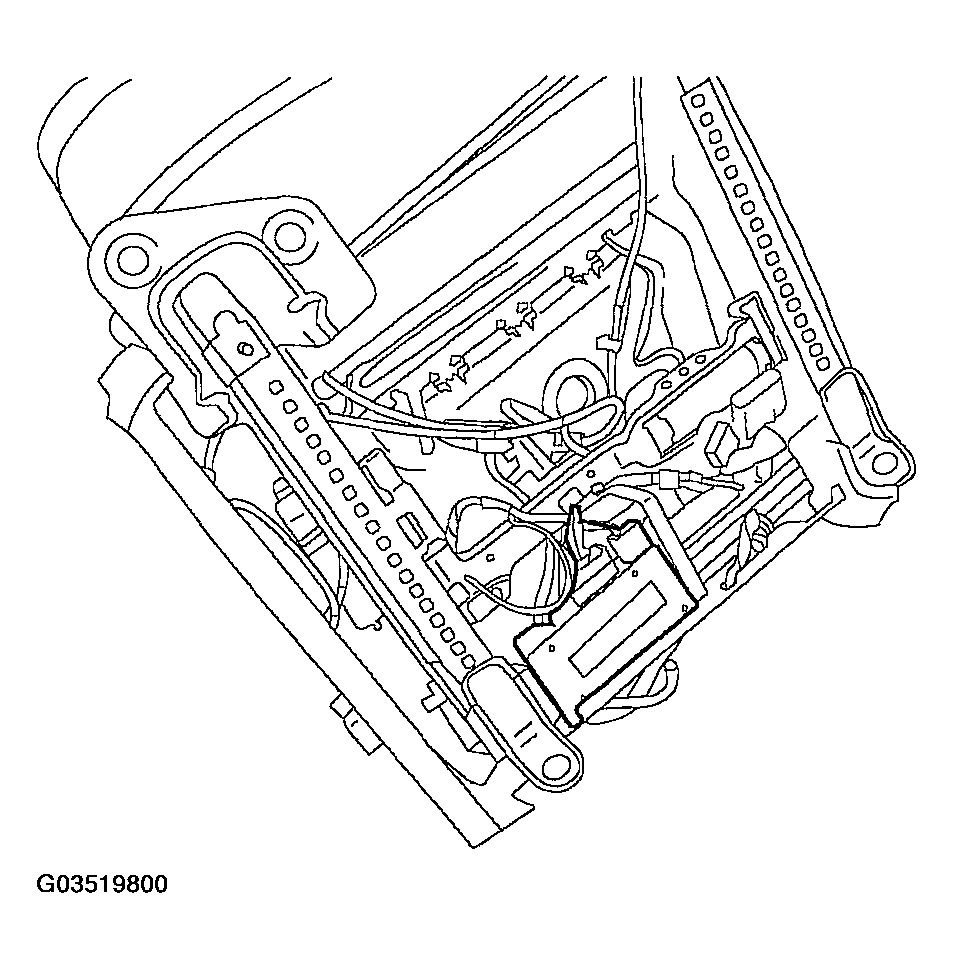

The Memory Seat Module (MSM) is located underneath the driver seat, towards the front and on the outboard side. It is used in conjunction with the other modules in the memory system (Refer to MODULE-MEMORY MIRROR to recall the seat to one of two preset seat functional adjustments (horizontal, vertical, and recliner)). The switch for the memory seat programming and selection mounts on the driver door trim panel. The MSM also controls the adjustable pedals, both for the memory and manual functionality. The adjustable accelerator and brake pedals are available on SLT and Limited models. On Limited, their positioning can be stored for recall by the memory system, allowing for two drivers to have unique, pre-programmed settings.
