Diagnostic Procedure

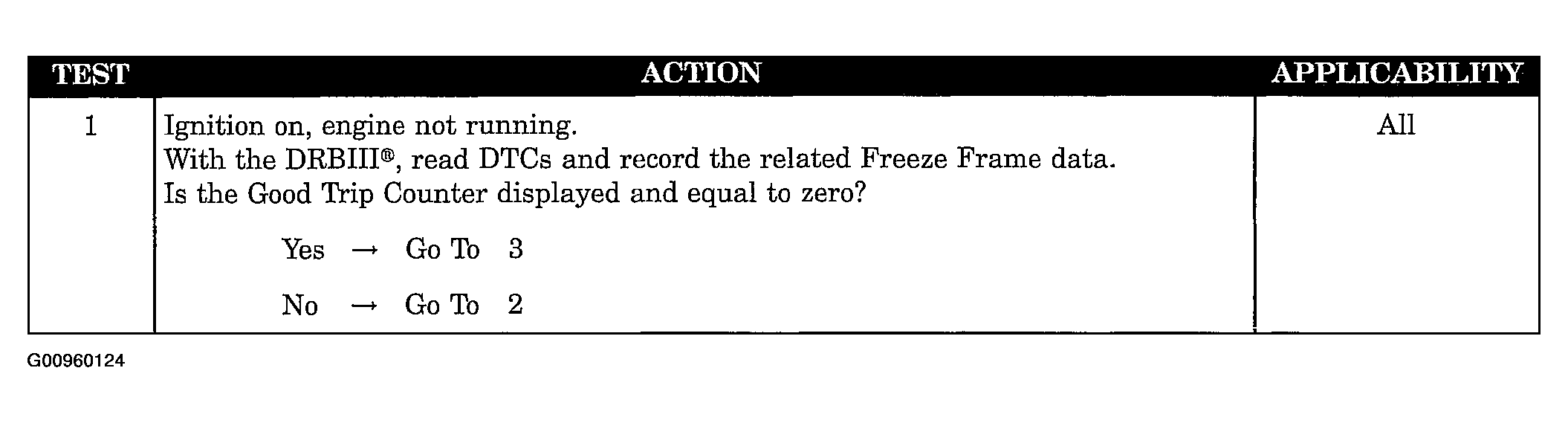

Fig 1: Sensor Heater Circuit Low Diagnostic Chart (Step 1)
G00960124Courtesy of DAIMLERCHRYSLER CORP.

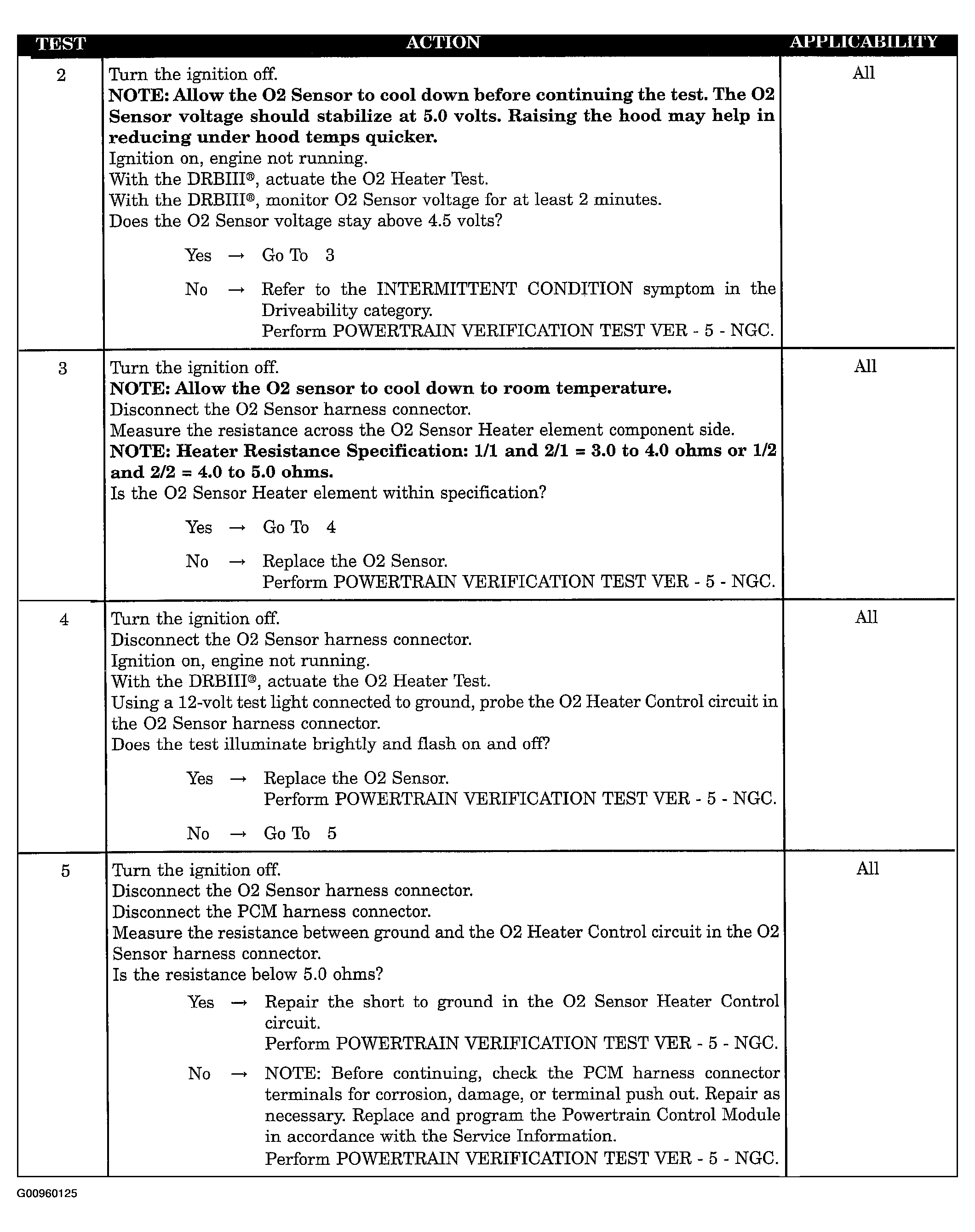

Fig 2: Sensor Heater Circuit Low Diagnostic Chart (Steps 2-5)
G00960125Courtesy of DAIMLERCHRYSLER CORP.
