Battery Tray: Installation

  1. Position the battery tray in the vehicle.
  2. Connect the engine vacuum harness hose on the battery tray mounted vacuum reservoir.

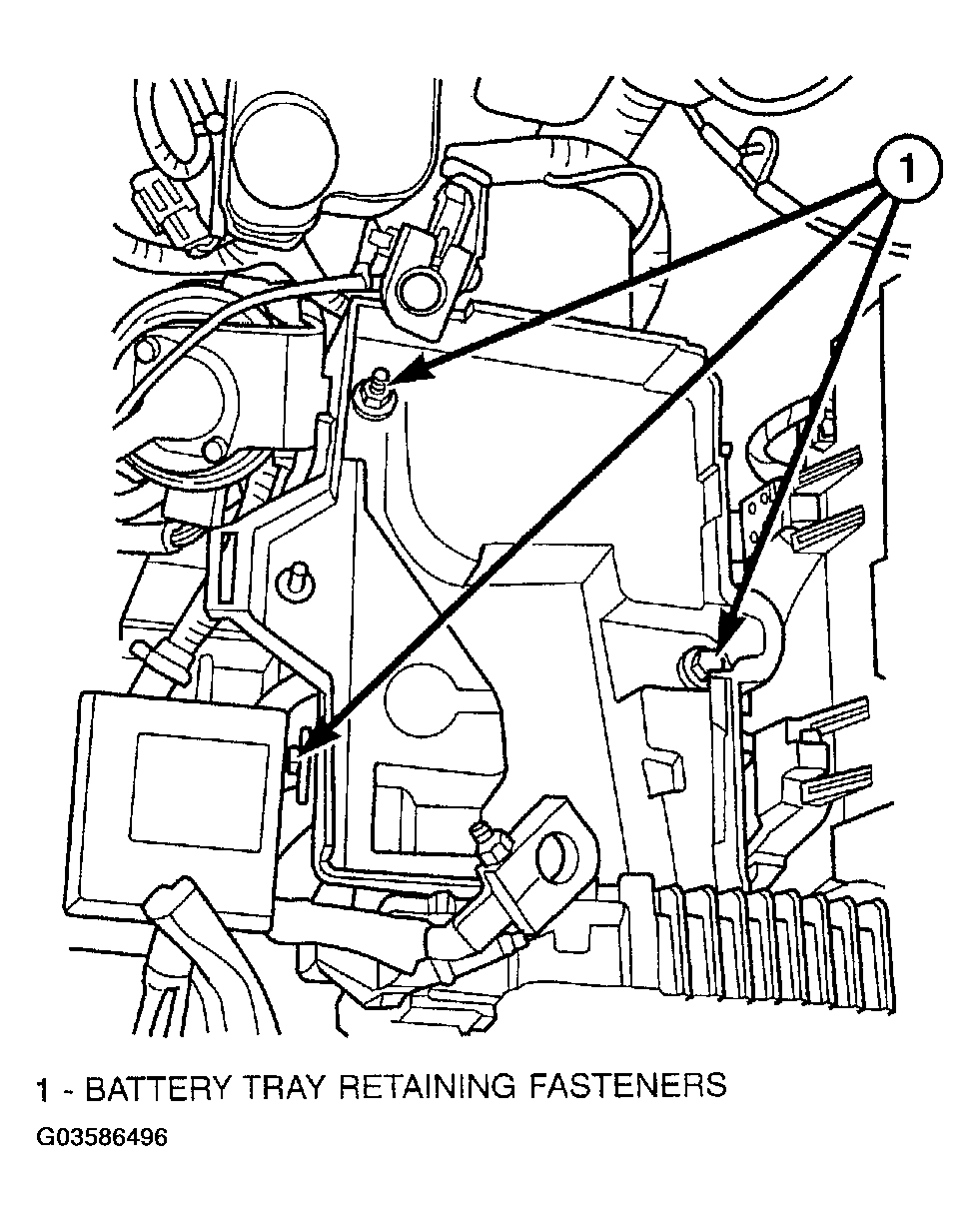

  3. Position drainage hose and install the battery tray retaining fasteners (Figure ).
  4. Install the battery in the vehicle. Refer to BATTERY  .
  5. Connect the negative battery cable.
