Driver Power Mirror Connector End View

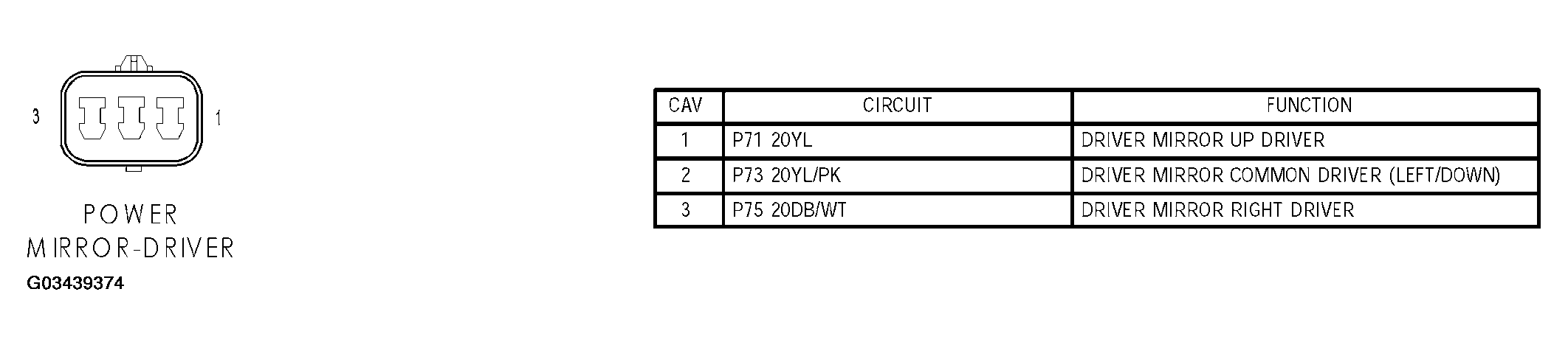

Fig 1: Driver Power Mirror Connector End View

G03439374

Courtesy of DAIMLERCHRYSLER CORP.
