Brake Lamp Switch Connector End View

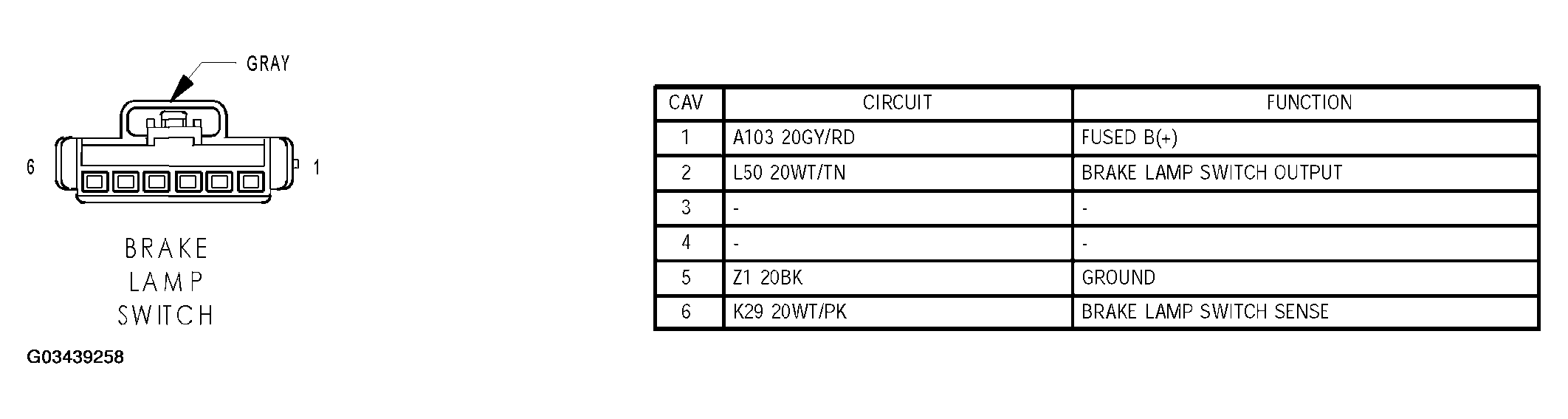

Fig 1: Brake Lamp Switch Connector End View

G03439258

Courtesy of DAIMLERCHRYSLER CORP.
