Tire Pressure Monitor Module Connector End View

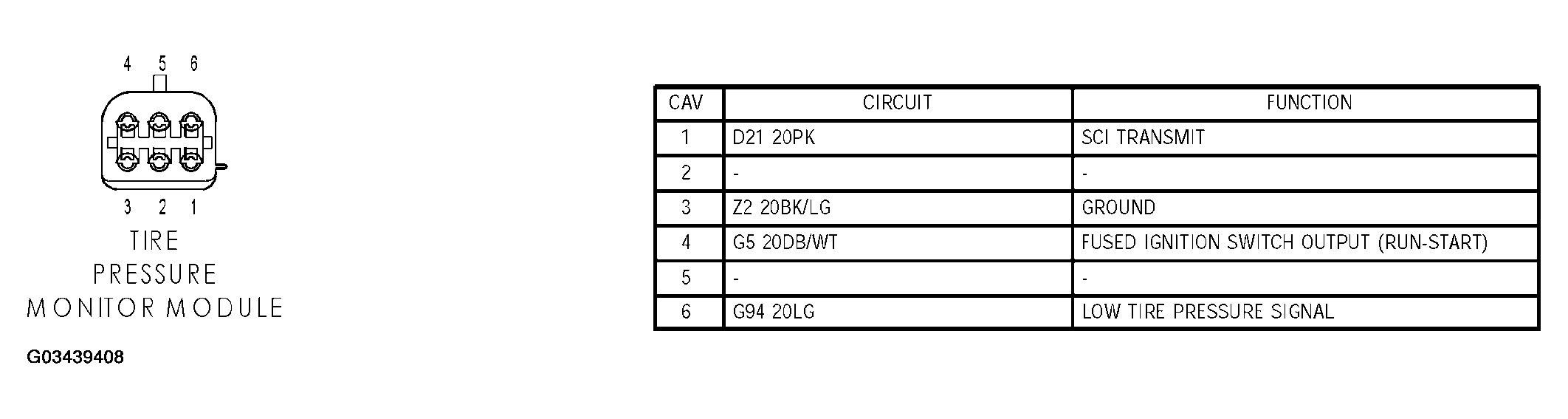

Fig 1: Tire Pressure Monitor Module Connector End View

G03439408

Courtesy of DAIMLERCHRYSLER CORP.
