Home >> Dodge and Ram >> 2003 >> Sprinter 3500, 2.7 42 >> Repair and Diagnosis >> Engine Performance >> System >> Powertrain Diagnostic Procedures >> Diagnostic Information And Procedures >> Verification Tests >> Verification Tests

Verification Tests

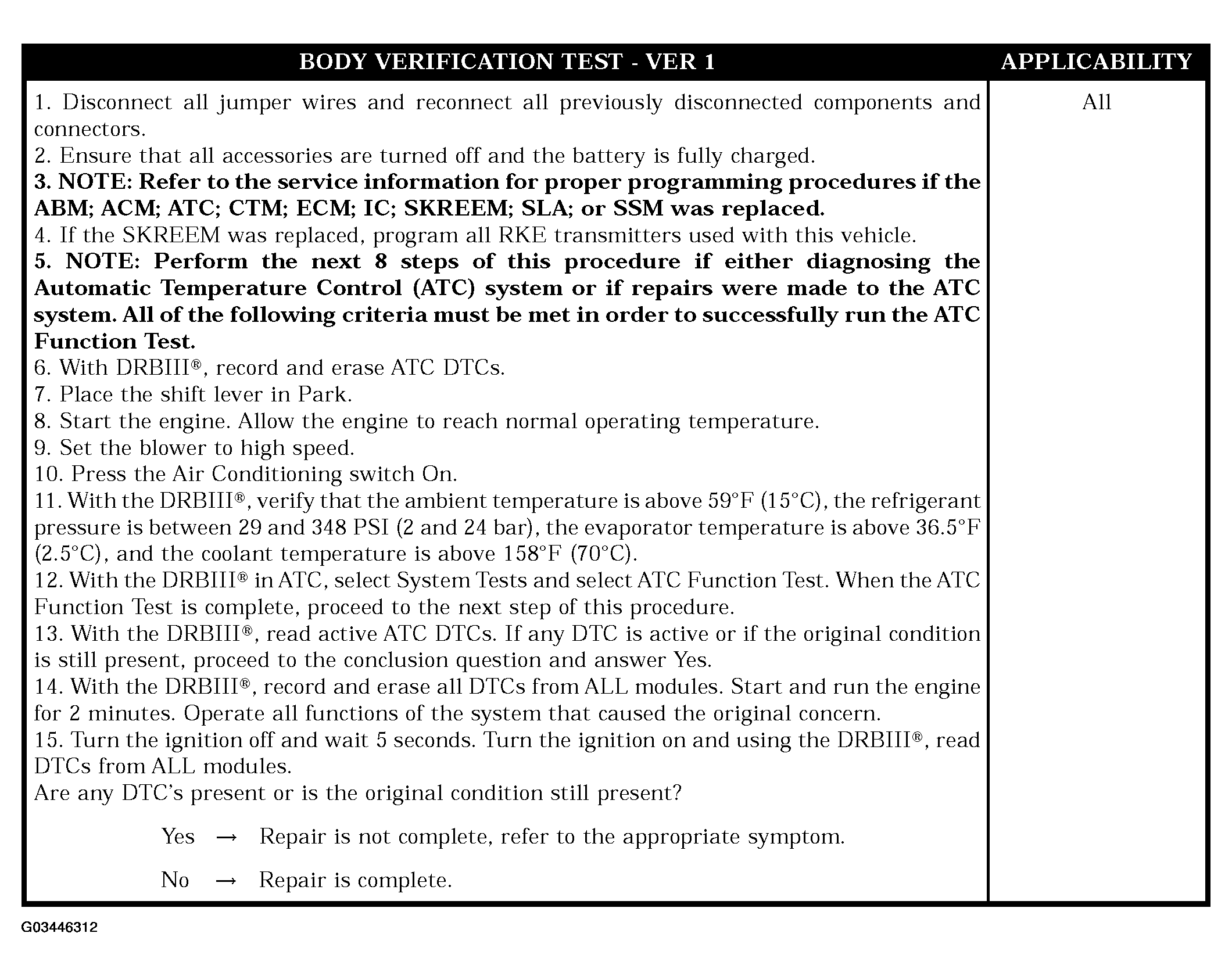

Fig 1: Body Verification Test VER-1
G03446312Courtesy of DAIMLERCHRYSLER CORP.

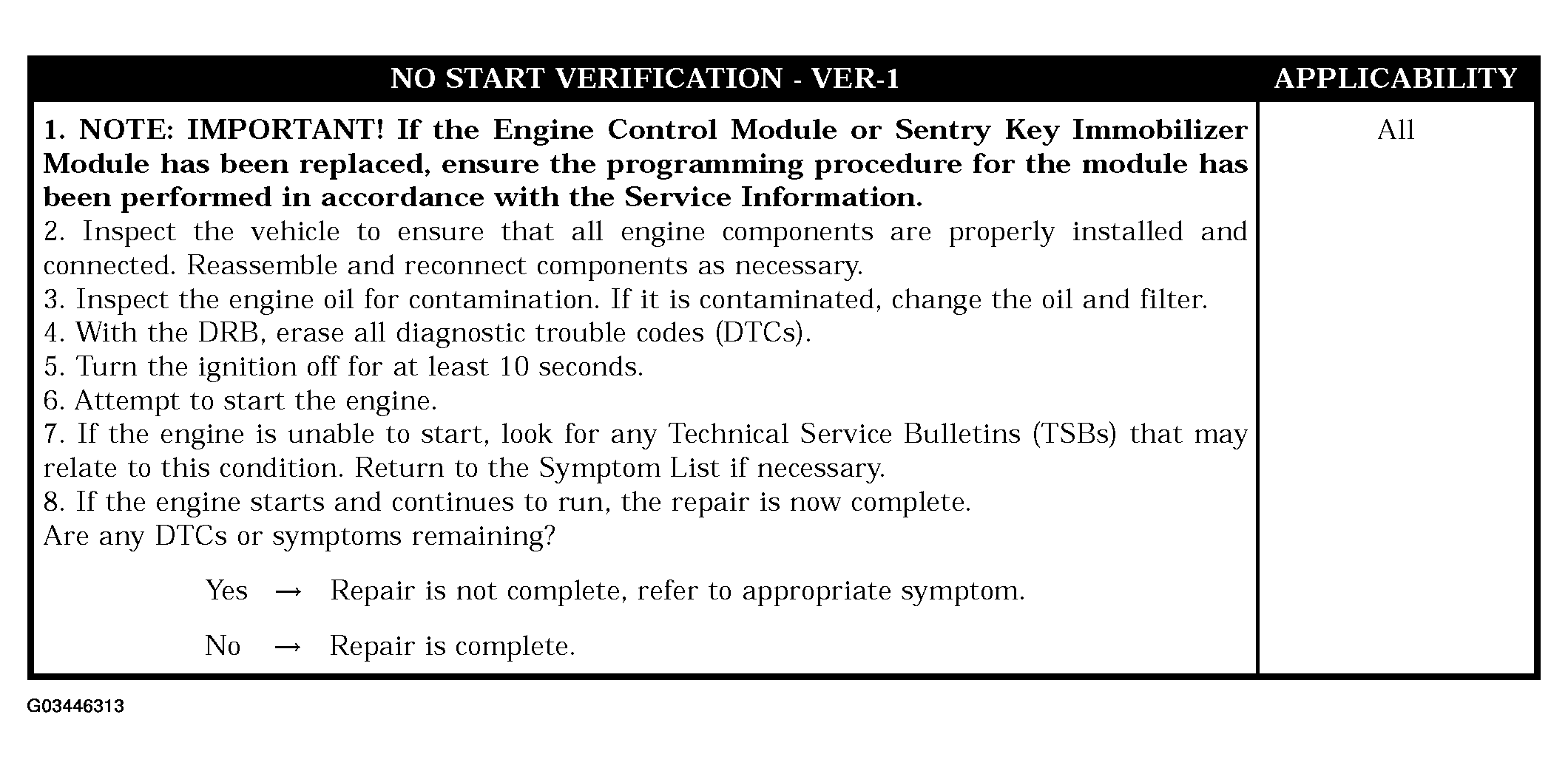

Fig 2: No Start Verification Test VER-1
G03446313Courtesy of DAIMLERCHRYSLER CORP.

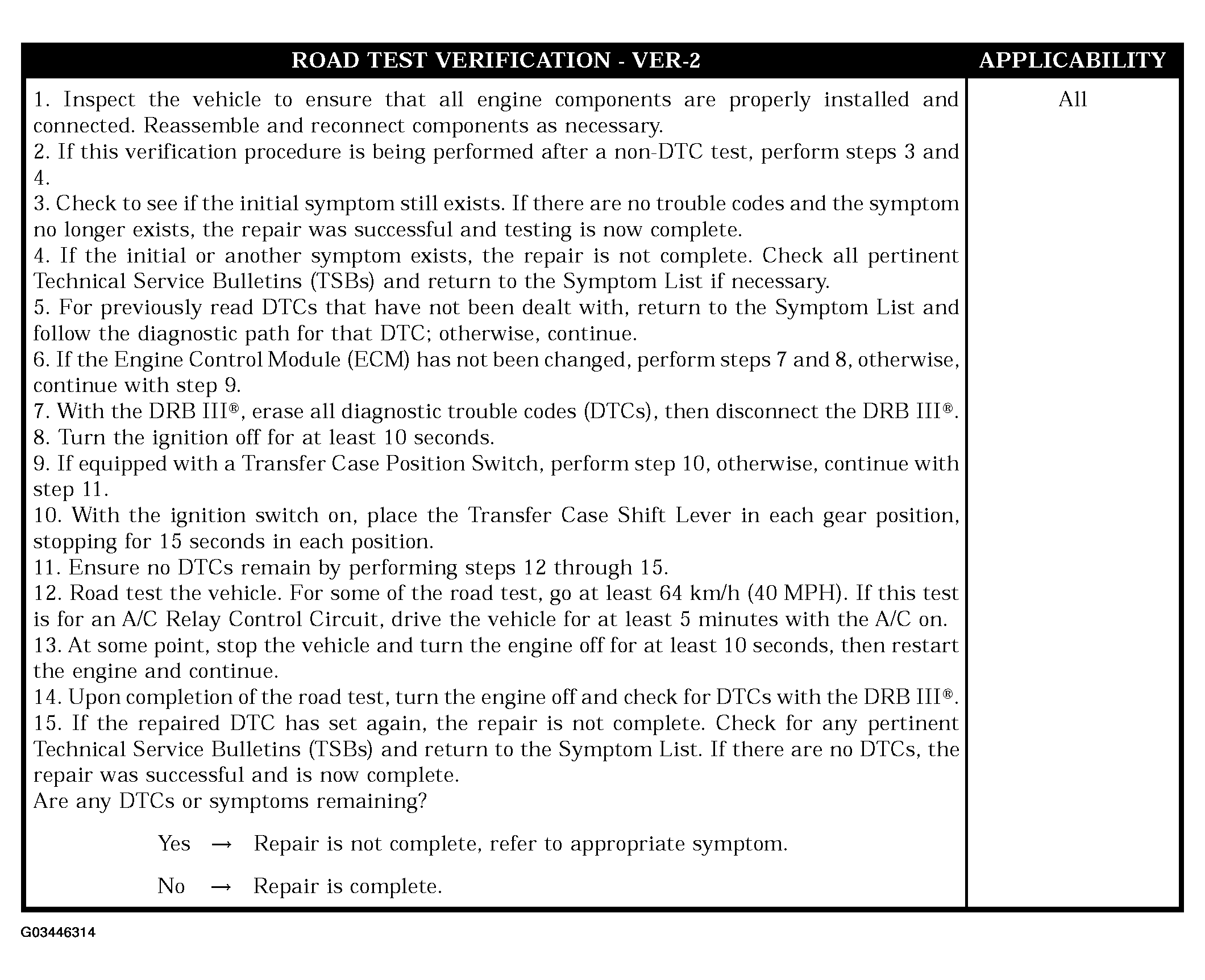

Fig 3: Road Test Verification Test VER-2
G03446314Courtesy of DAIMLERCHRYSLER CORP.
