Speed Control: Switch: Installation

The speed control switch is mounted to the back of the multi-function switch (Figure ).

1. Position speed control switch to back of multifunction switch.

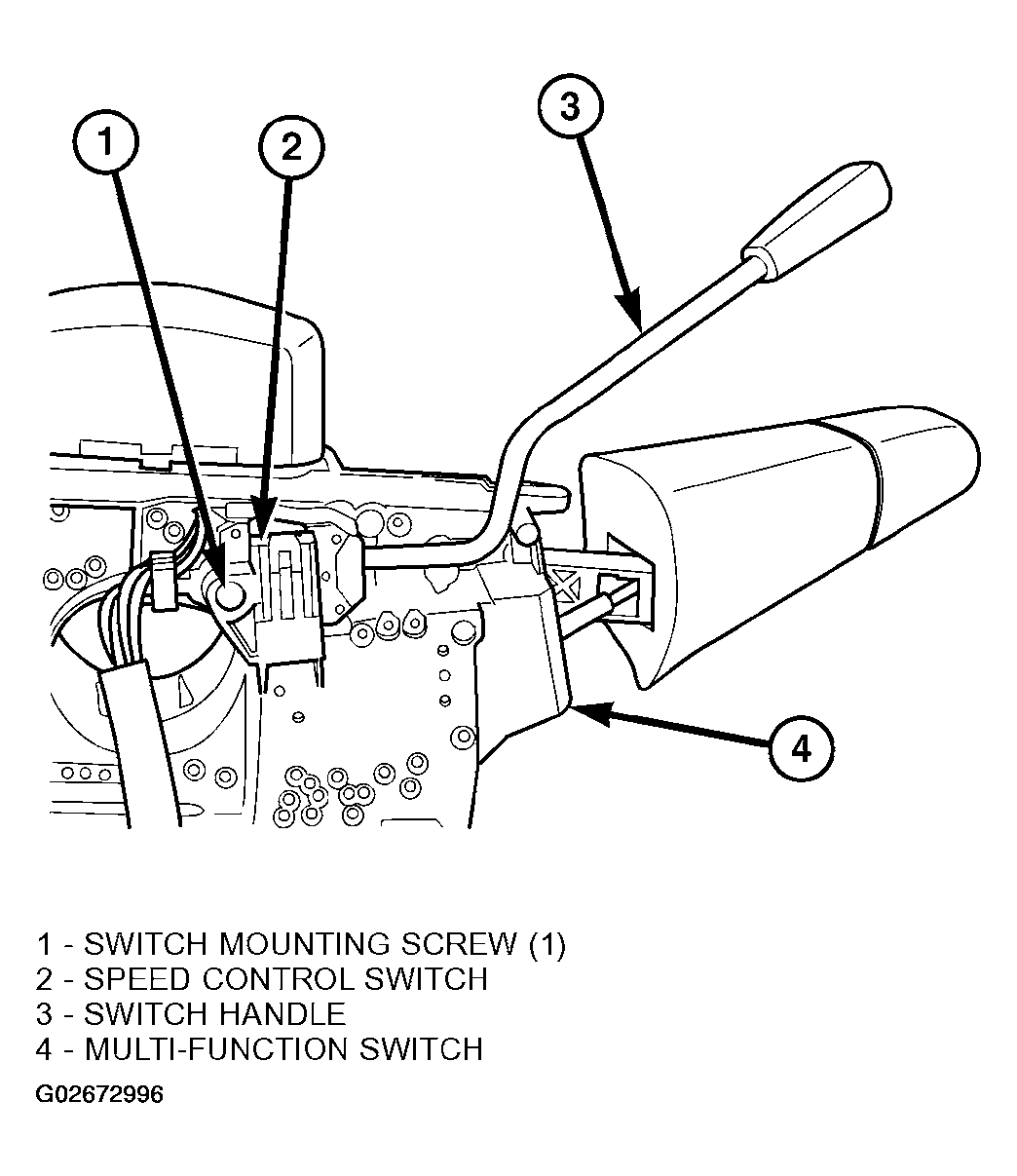

2. Install switch mounting screw (Figure ). Refer to Torque Specifications.

   Install multi-function switch. Refer to Multi-Function Switch Removal/Installation.

3. Plug pigtail electrical connector (Figure ) into instrument panel wiring harness. Be sure wires are not pinched.
4. Install negative battery cable to battery.
