Left Rear Wheel Speed Sensor Connector End View

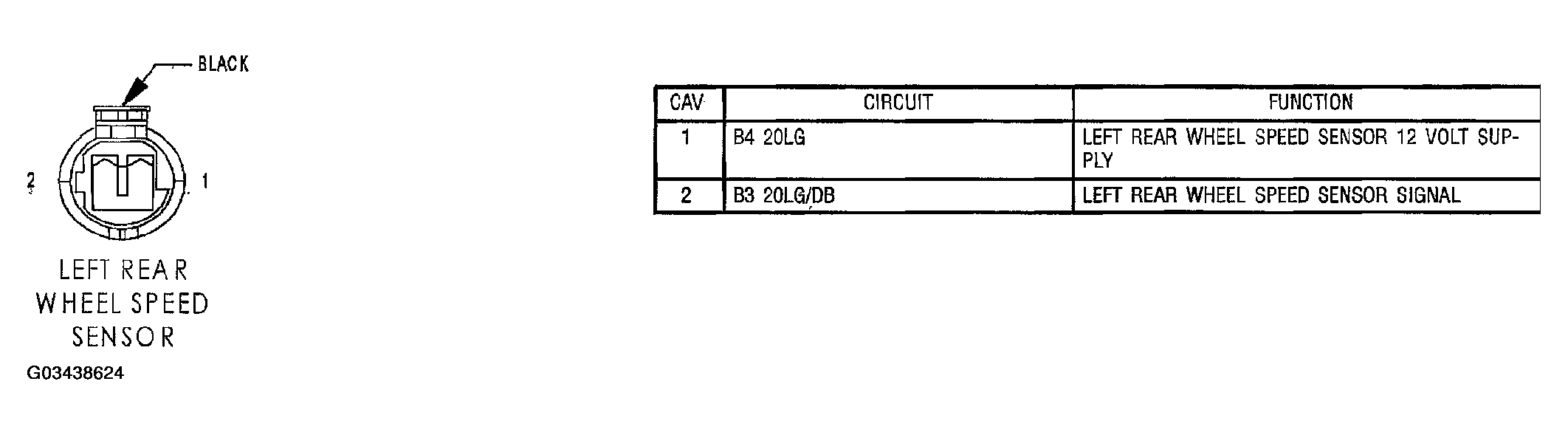

Fig 1: Left Rear Wheel Speed Sensor Connector End View

G03438624

Courtesy of DAIMLERCHRYSLER CORP.
