Headlamp Switch Connector End View

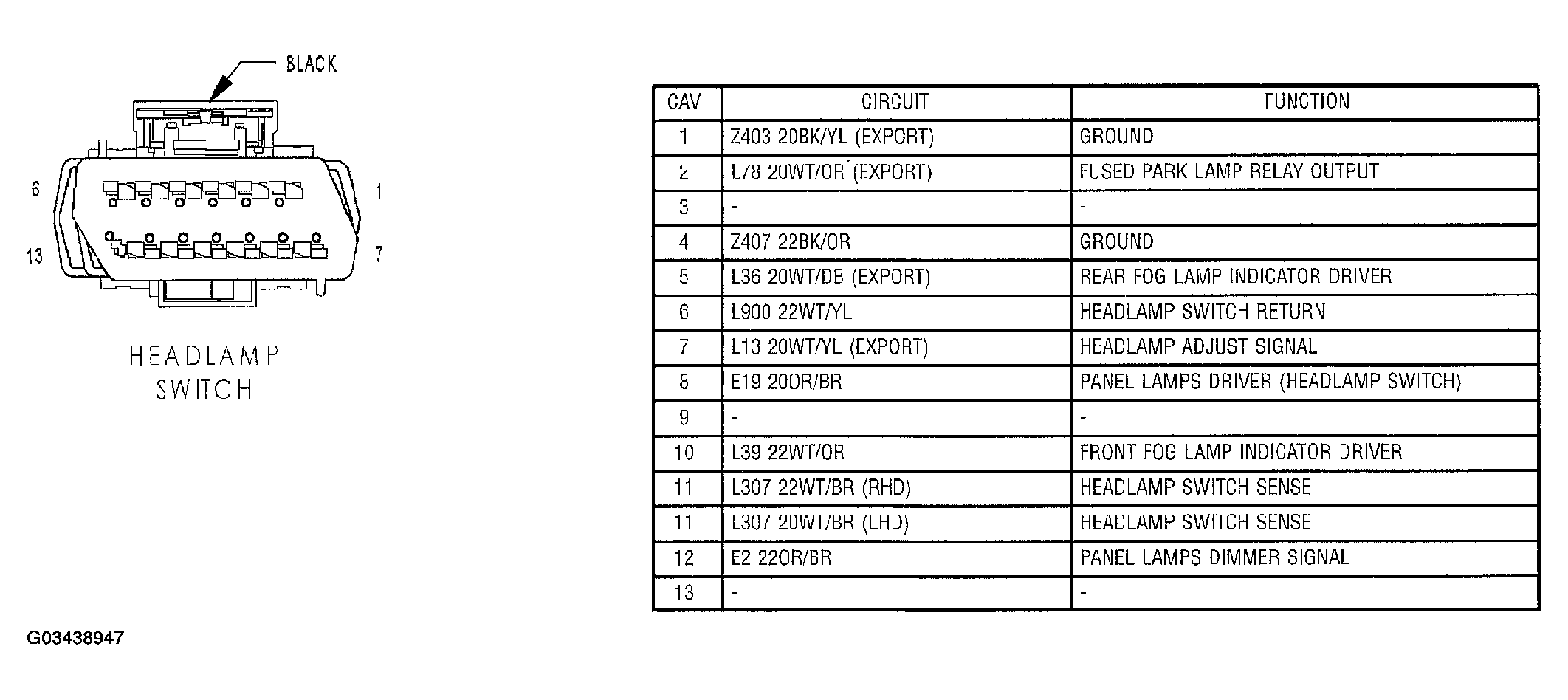

Fig 1: Headlamp Switch Connector End View

G03438947

Courtesy of DAIMLERCHRYSLER CORP.
