Driver Power Window Switch (RHD) Connector End View

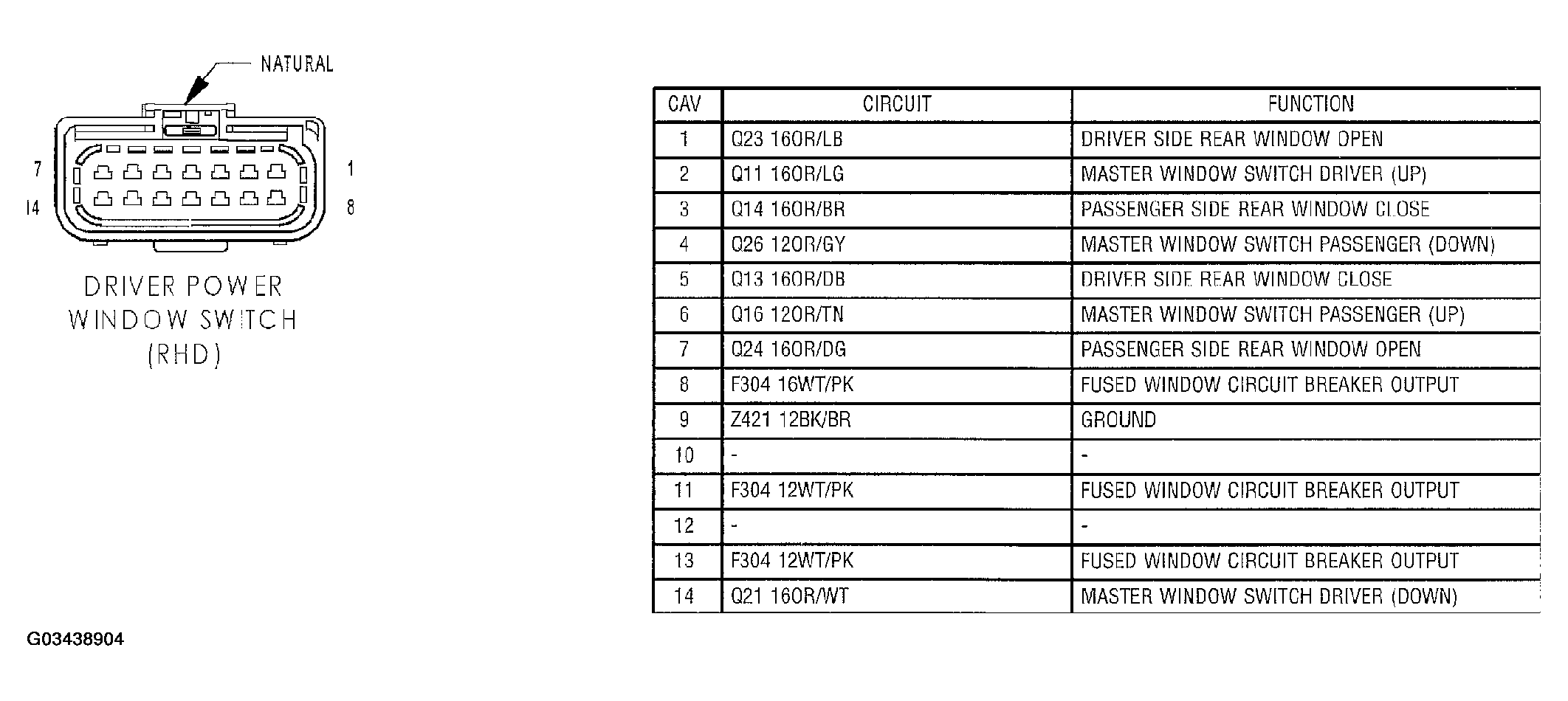

Fig 1: Driver Power Window Switch (RHD) Connector End View

G03438904

Courtesy of DAIMLERCHRYSLER CORP.
