Home >> Dodge and Ram >> 2003 >> Grand Caravan Base >> Repair and Diagnosis >> Electrical >> Fuses & Circuit Breakers >> Power Distribution System >> Relays >> Front Control Module

Front Control Module

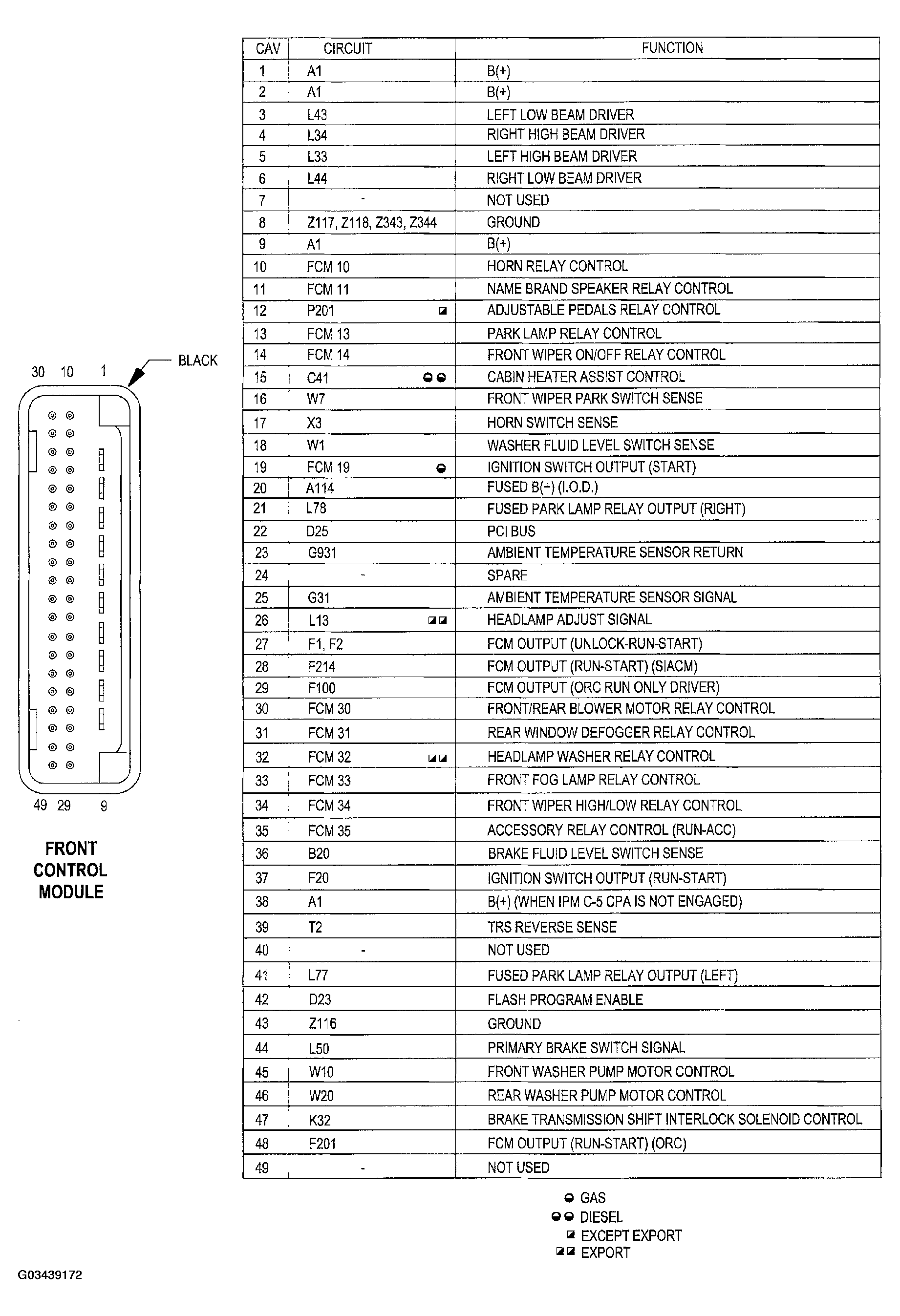

Fig 1: Identifying Front Control Module Cavity

G03439172

Courtesy of DAIMLERCHRYSLER CORP.
