Integrated Power Module (Rear View)

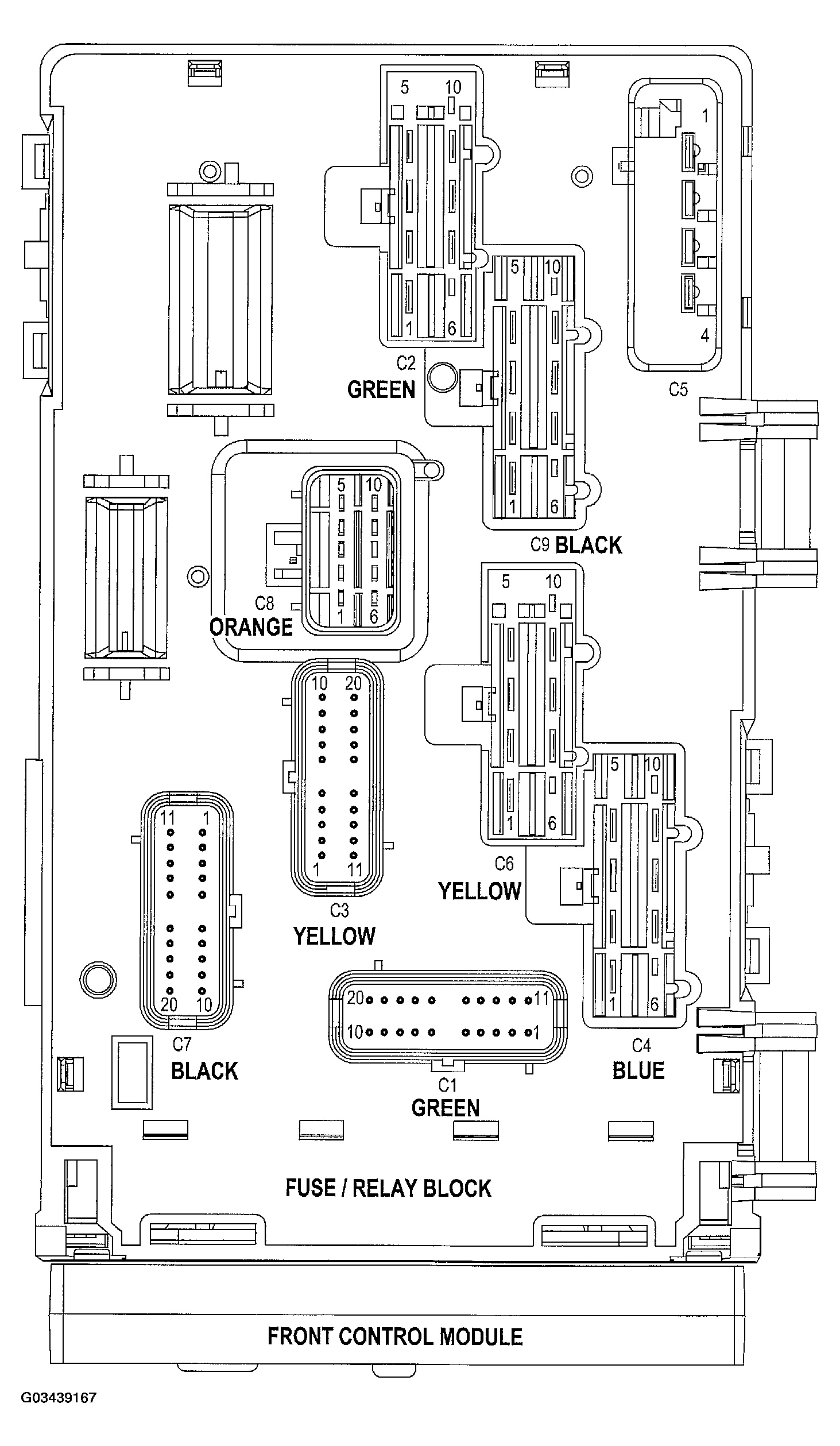

Fig 1: Integrated Power Module Connector Identification

G03439167

Courtesy of DAIMLERCHRYSLER CORP.
