Fuse Identification Reference Chart

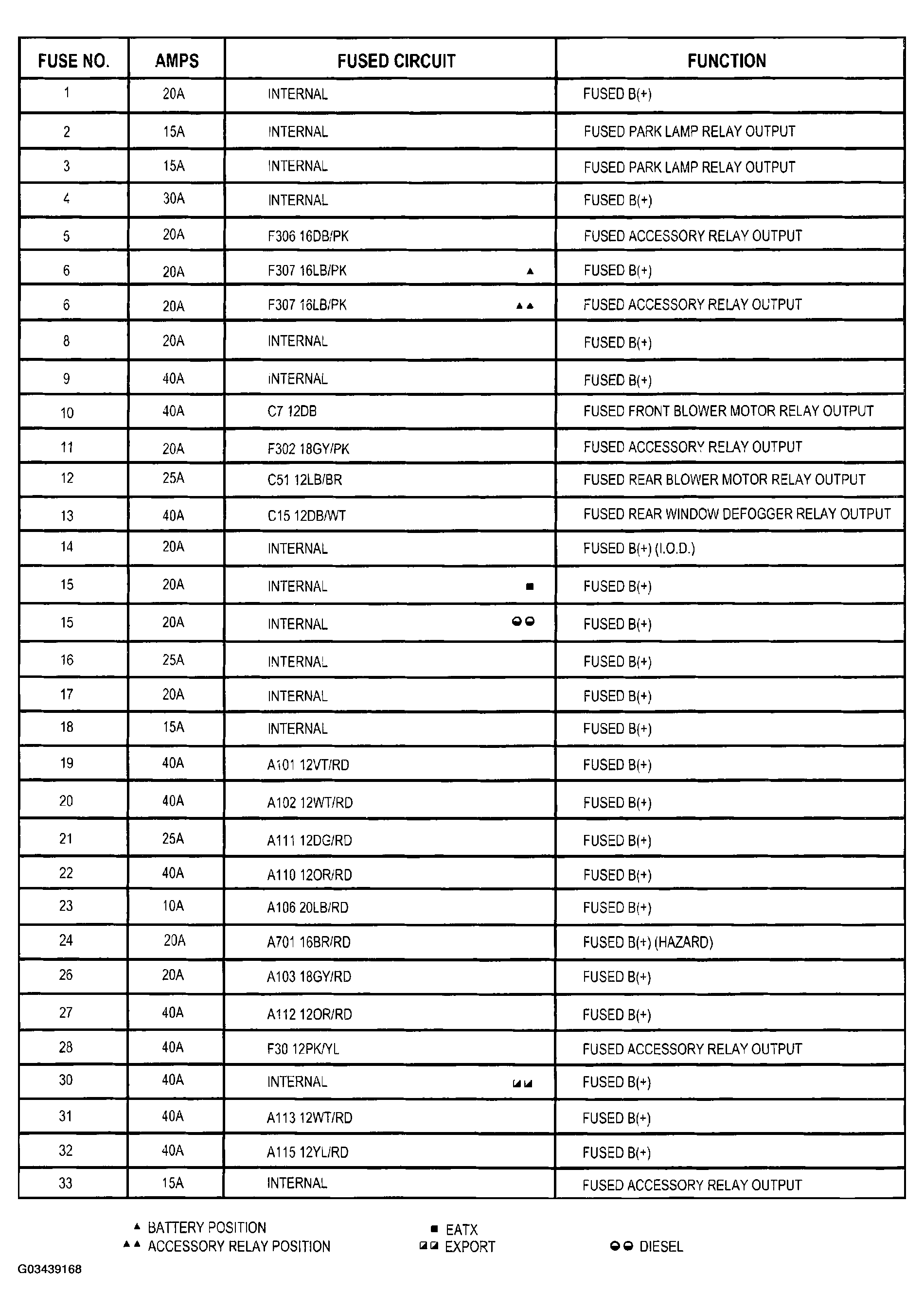

Fig 1: Fuse Identification Reference Chart

G03439168

Courtesy of DAIMLERCHRYSLER CORP.
