Integrated Power Module/Body Control Module Power And Grounds

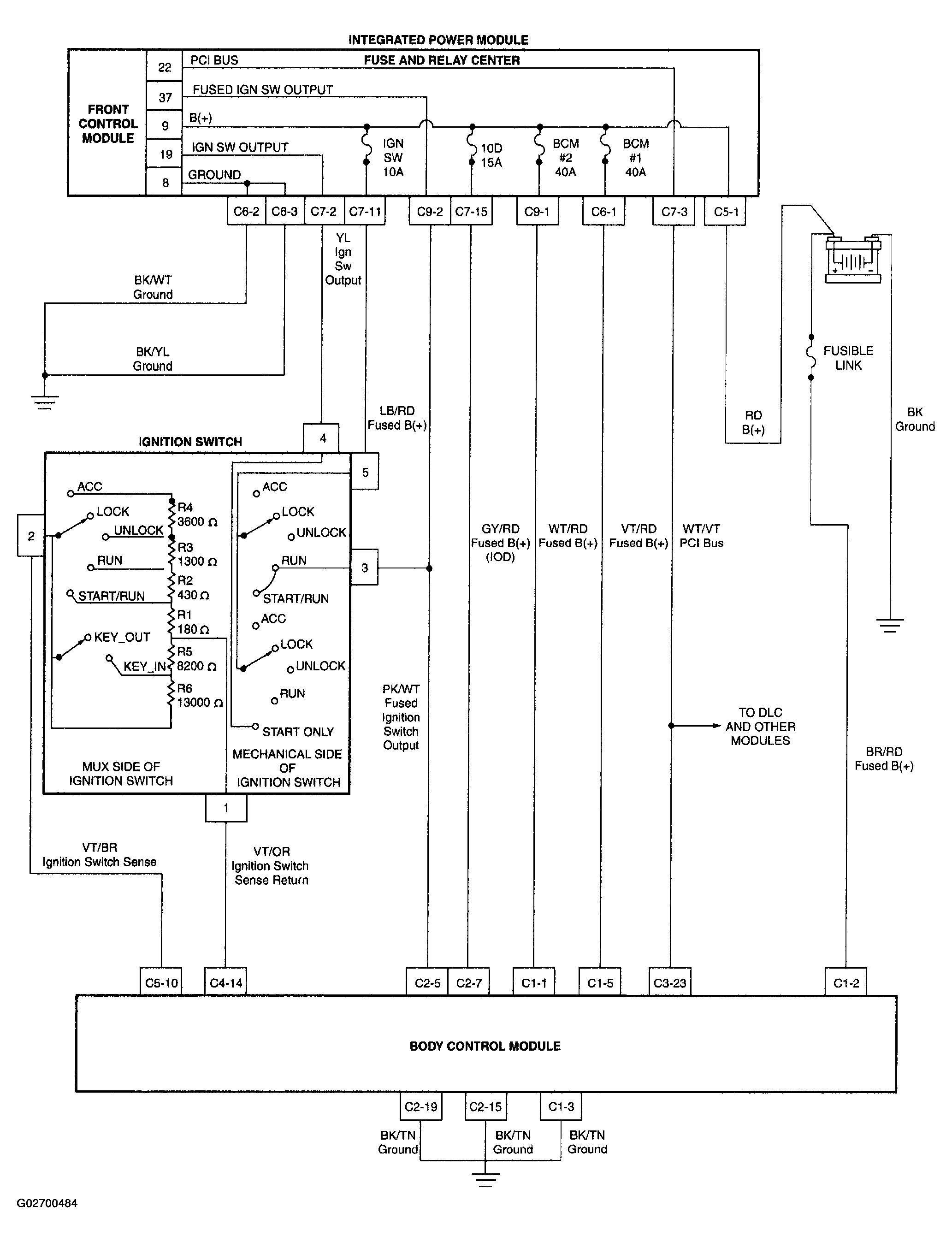

Fig 1: Integrated Power Module/Body Control Module Power And Grounds Schematic Diagram

G02700484

Courtesy of DAIMLERCHRYSLER CORP.
