Diagnostic Procedure

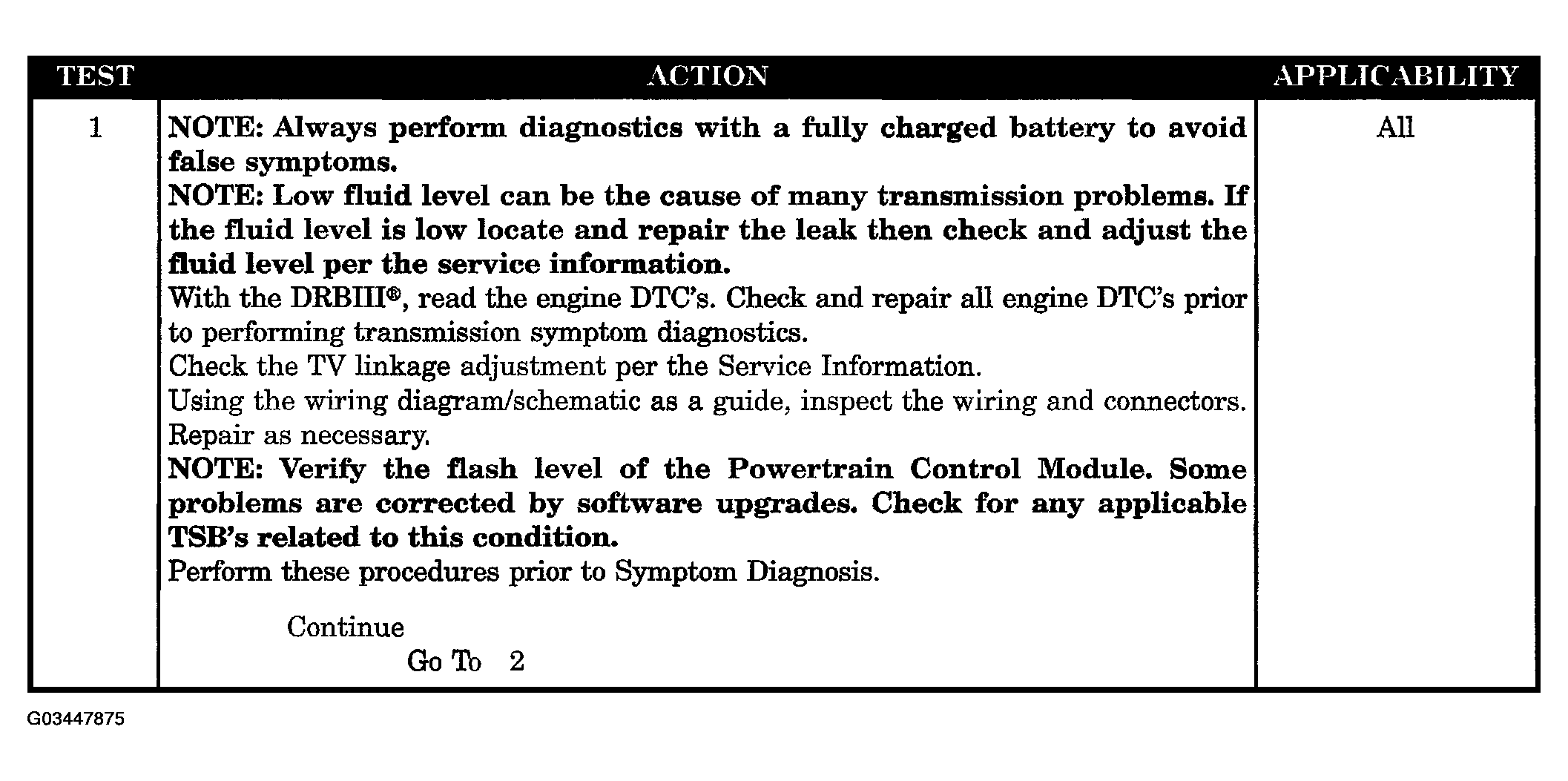

Fig 1: Diagnostic Procedure - P0748-Pressure SQL Control/Trans Relay Circuits (1 Of 4)
G03447875Courtesy of DAIMLERCHRYSLER CORP.

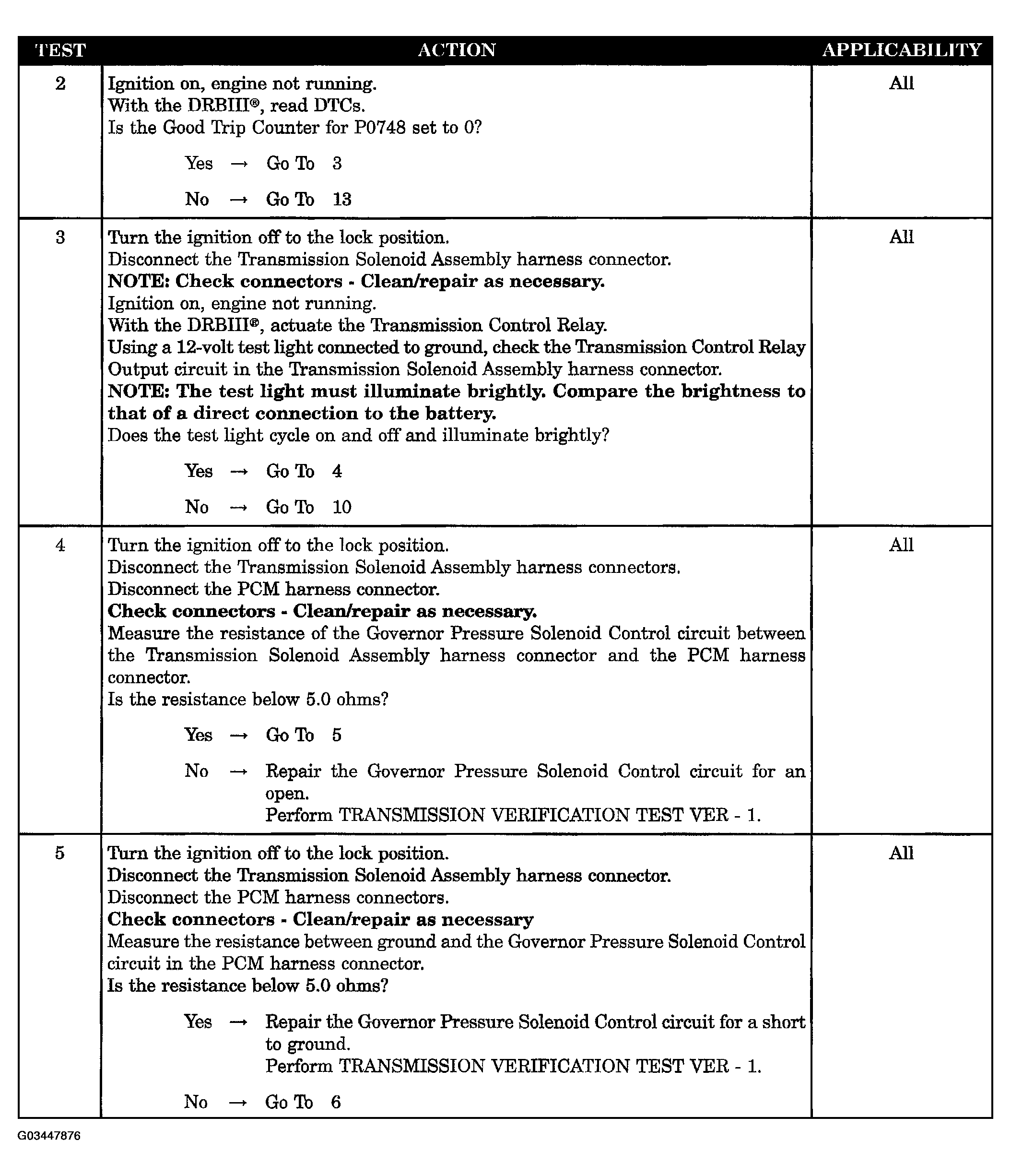

Fig 2: Diagnostic Procedure - P0748-Pressure SQL Control/Trans Relay Circuits (2 Of 4)
G03447876Courtesy of DAIMLERCHRYSLER CORP.

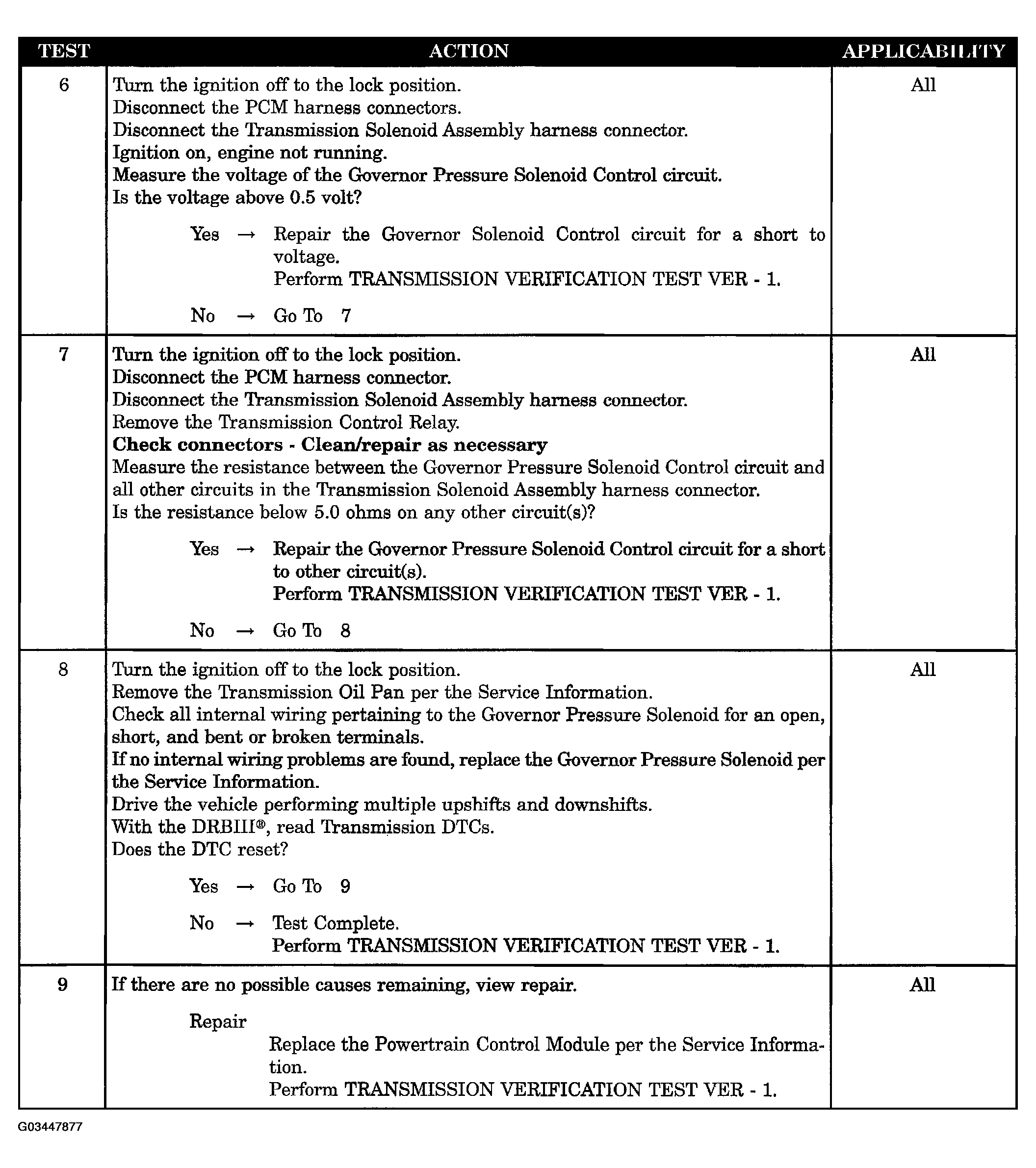

Fig 3: Diagnostic Procedure - P0748-Pressure SQL Control/Trans Relay Circuits (3 Of 4)
G03447877Courtesy of DAIMLERCHRYSLER CORP.

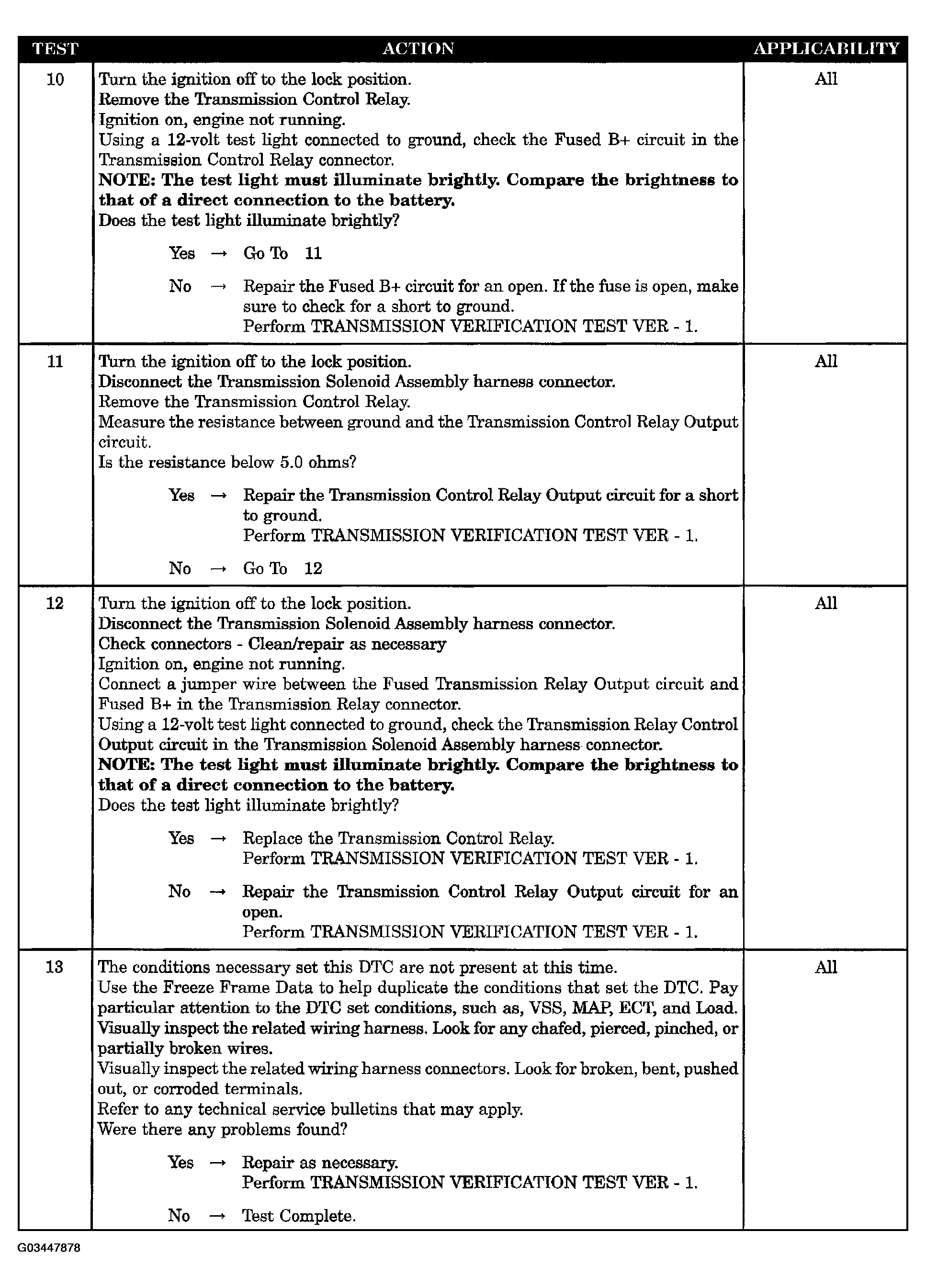

Fig 4: Diagnostic Procedure - P0748-Pressure SQL Control/Trans Relay Circuits (4 Of 4)
G03447878Courtesy of DAIMLERCHRYSLER CORP.
