Powertrain Control Module (4.7L Next Generation Controller) Connector End View (C4)

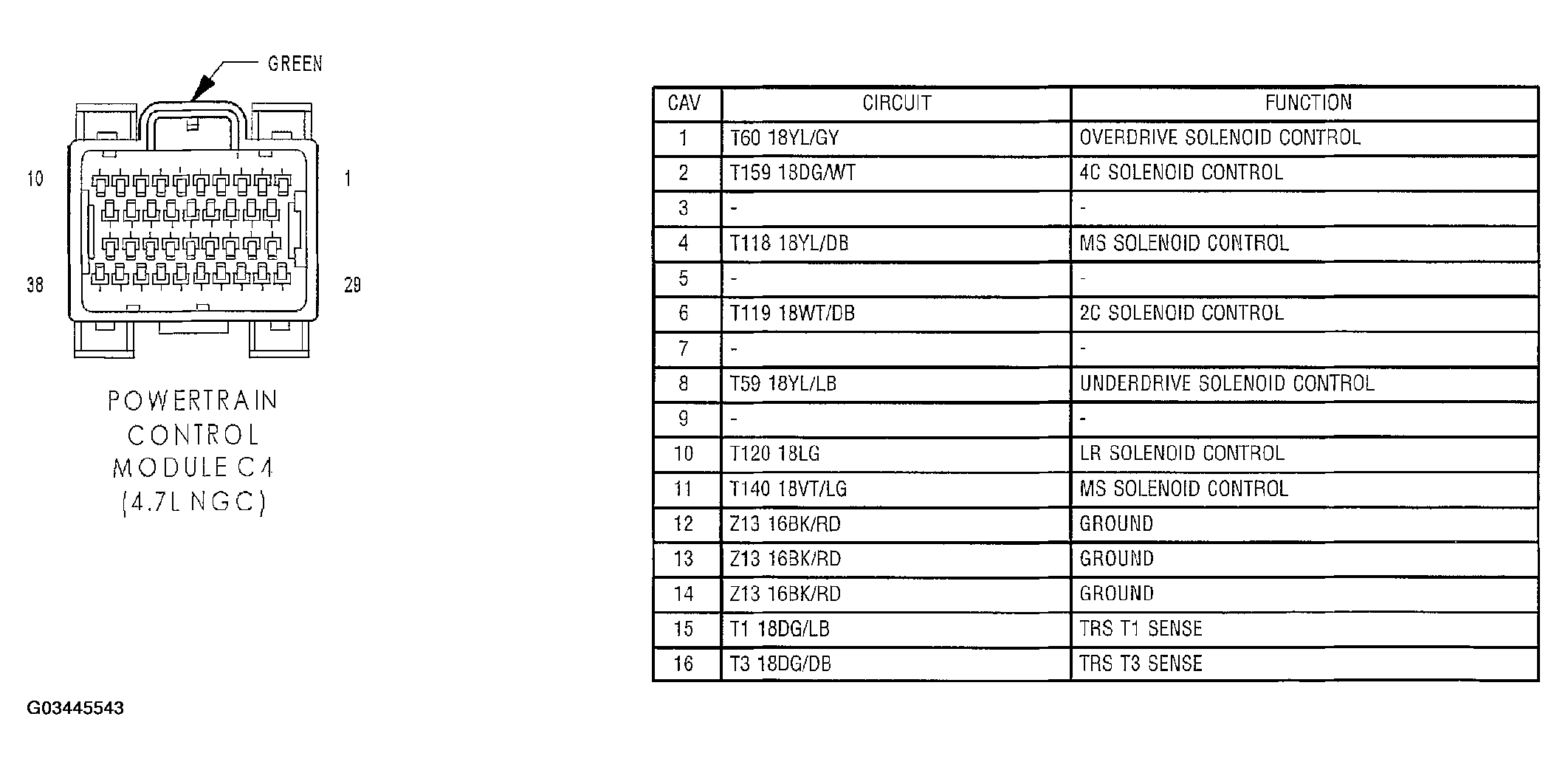

Fig 1: Powertrain Control Module (4.7L Next Generation Controller) Connector End View (C4)
G03445543Courtesy of DAIMLERCHRYSLER CORP.

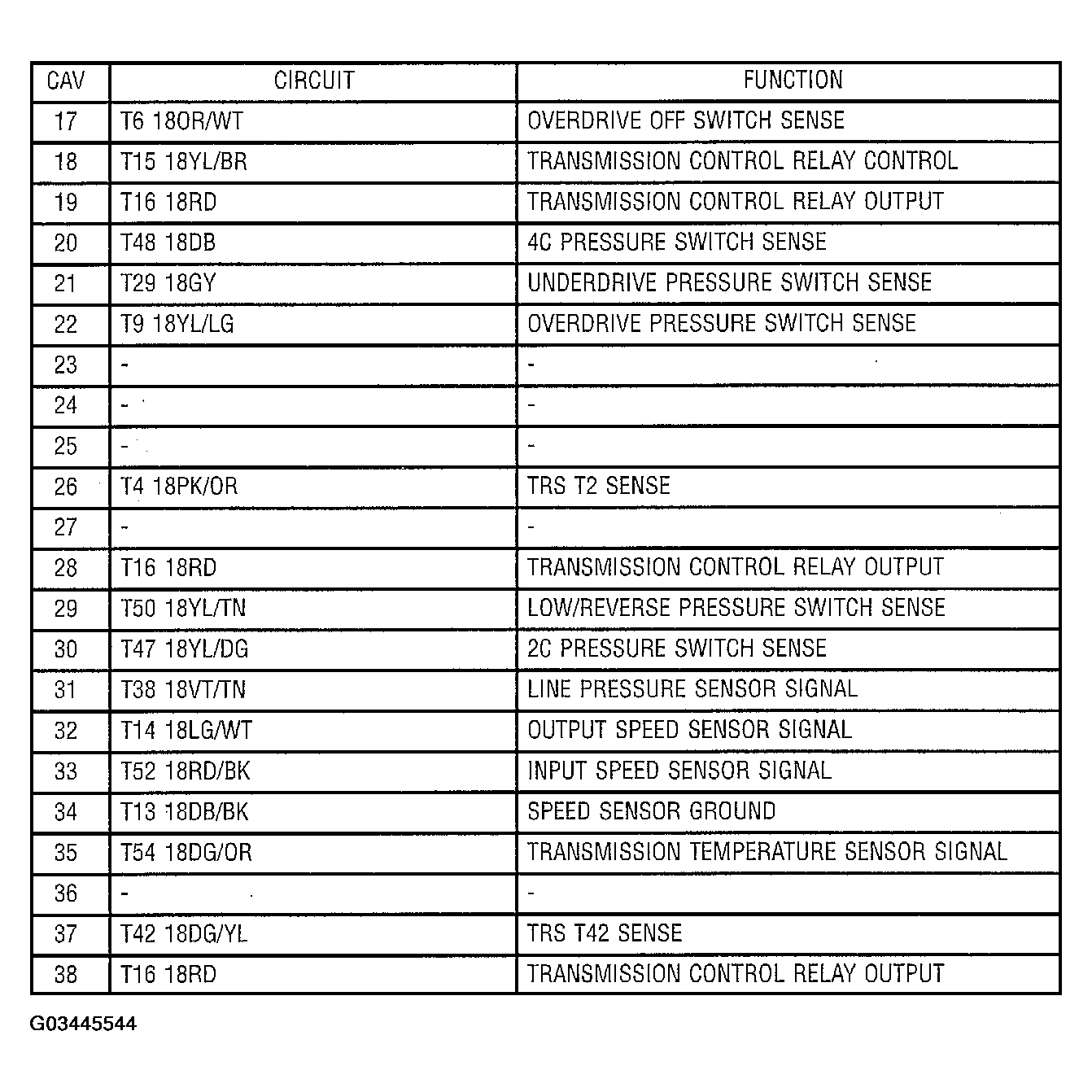

Fig 1: Powertrain Control Module (4.7L Next Generation Controller) Connector End View (C4)
G03445544Courtesy of DAIMLERCHRYSLER CORP.
