Output Speed Sensor (5.9L) Connector End View

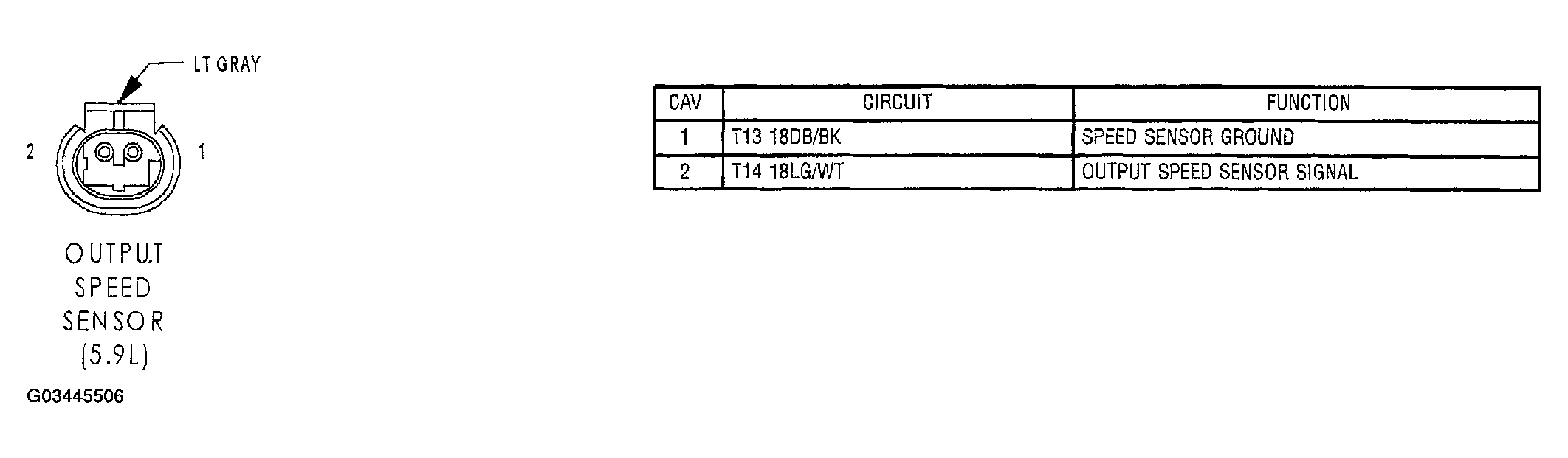

Fig 1: Output Speed Sensor (5.9L) Connector End View

G03445506

Courtesy of DAIMLERCHRYSLER CORP.
