Fuel Injector 2 Connector End View

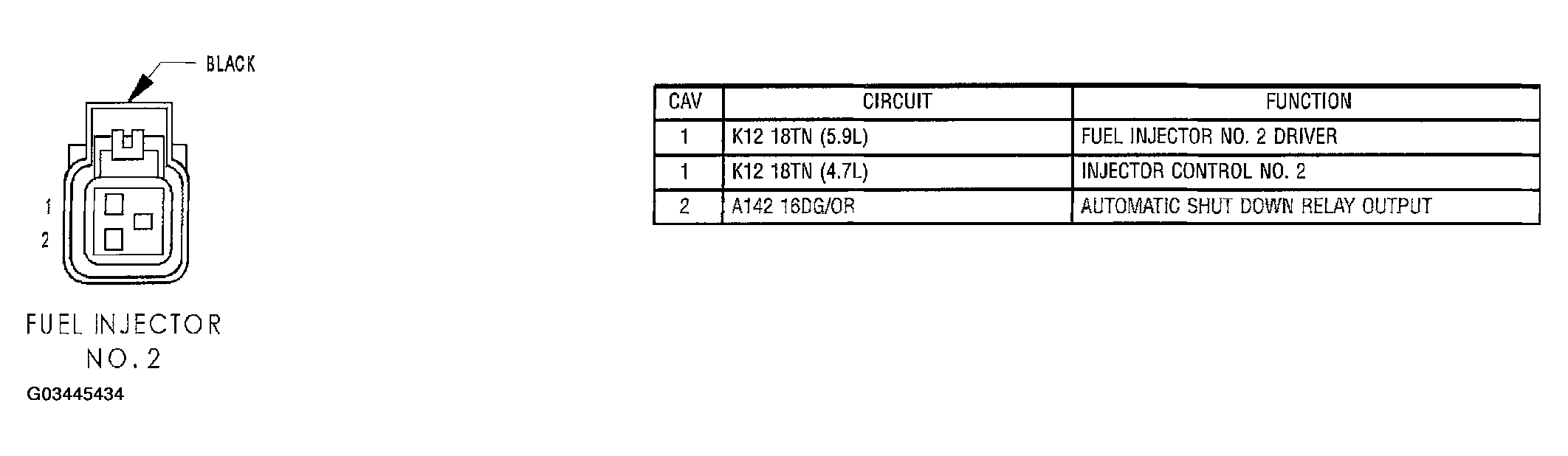

Fig 1: Fuel Injector 2 Connector End View

G03445434

Courtesy of DAIMLERCHRYSLER CORP.
