Standard Procedure-Reading/Courtesy Lamp Replacement

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open hood, disconnect and isolate the negative battery cable.
  2. Remove the overhead console from the head-liner (Refer to REMOVAL  ).
  3. Remove the reading/courtesy lamp socket from the overhead console. Depress the socket retaining clips and pull straight from the reflective chrome lens (Fig 1 ).

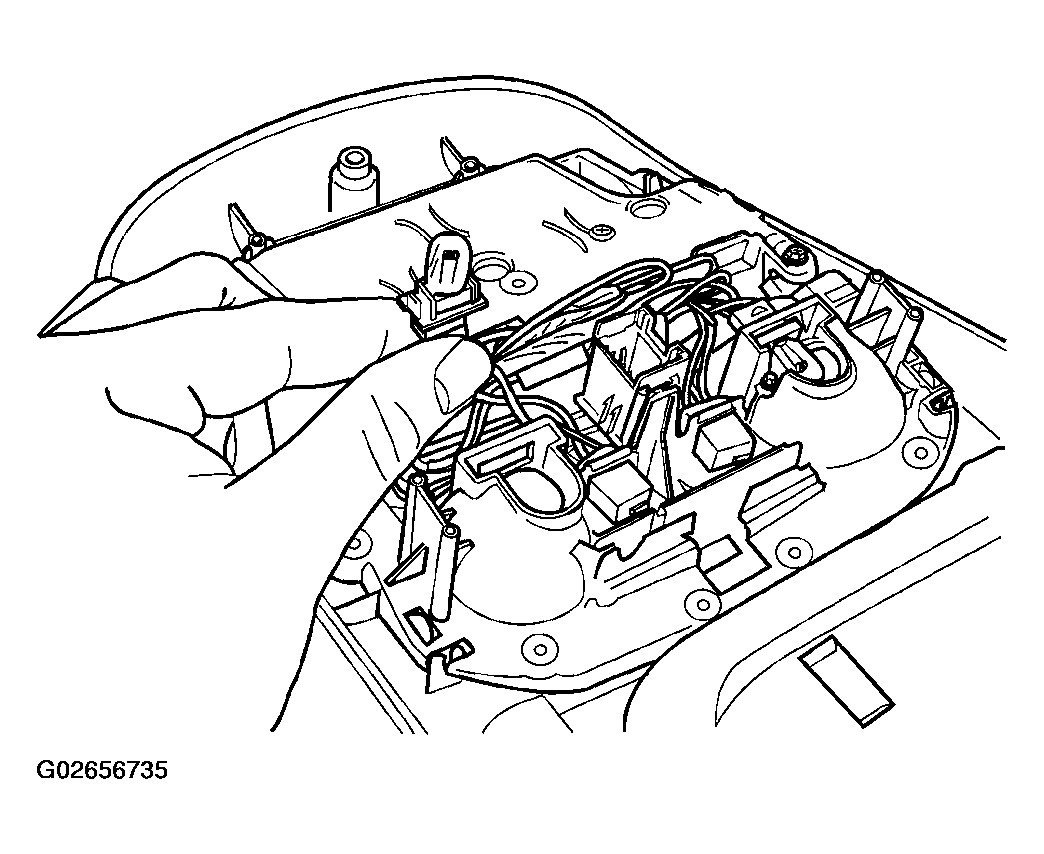

    Fig 1: Removing Reading/Courtesy Lamp Socket From Overhead Console
    G02656735Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the lamp from the socket assembly by pulling straight out.
  5. Reverse the above procedure to install.
