Transfer Case Control Module Connector End View (C3)

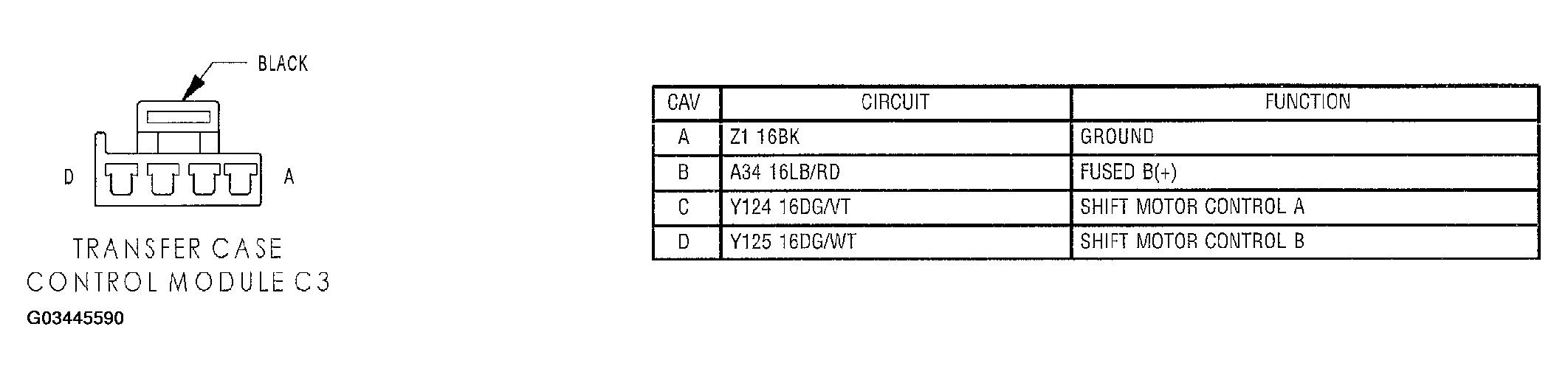

Fig 1: Transfer Case Control Module Connector End View (C3)

G03445590

Courtesy of DAIMLERCHRYSLER CORP.
