Central Timer Module Connector End View (C2)

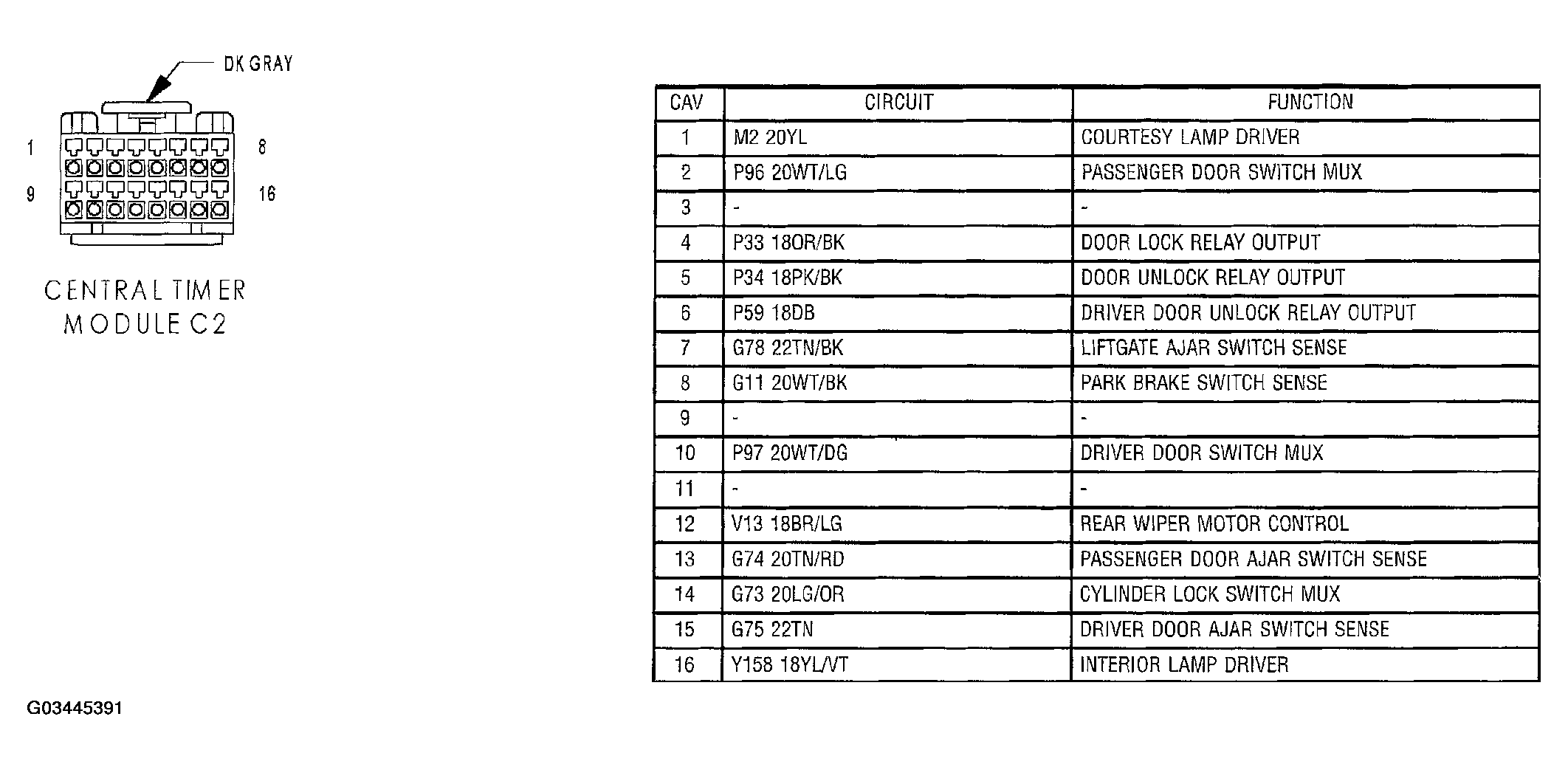

Fig 1: Central Timer Module Connector End View (C2)

G03445391

Courtesy of DAIMLERCHRYSLER CORP.
