Power Door Lock System/Remote Keyless Entry

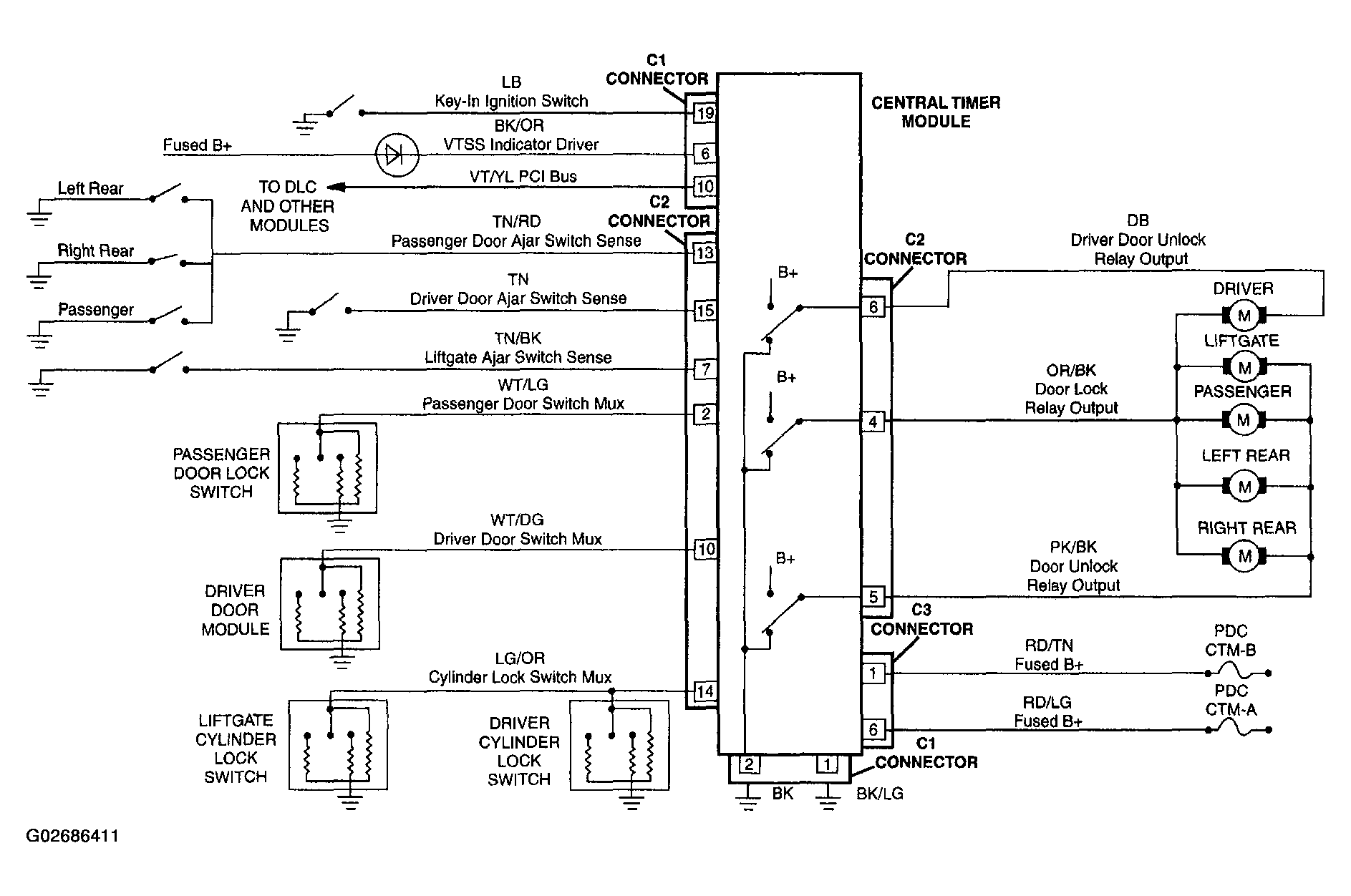

Fig 1: Power Door Lock System/Remote Keyless Entry Schematic Diagram

G02686411

Courtesy of DAIMLERCHRYSLER CORP.
