Overhead Console

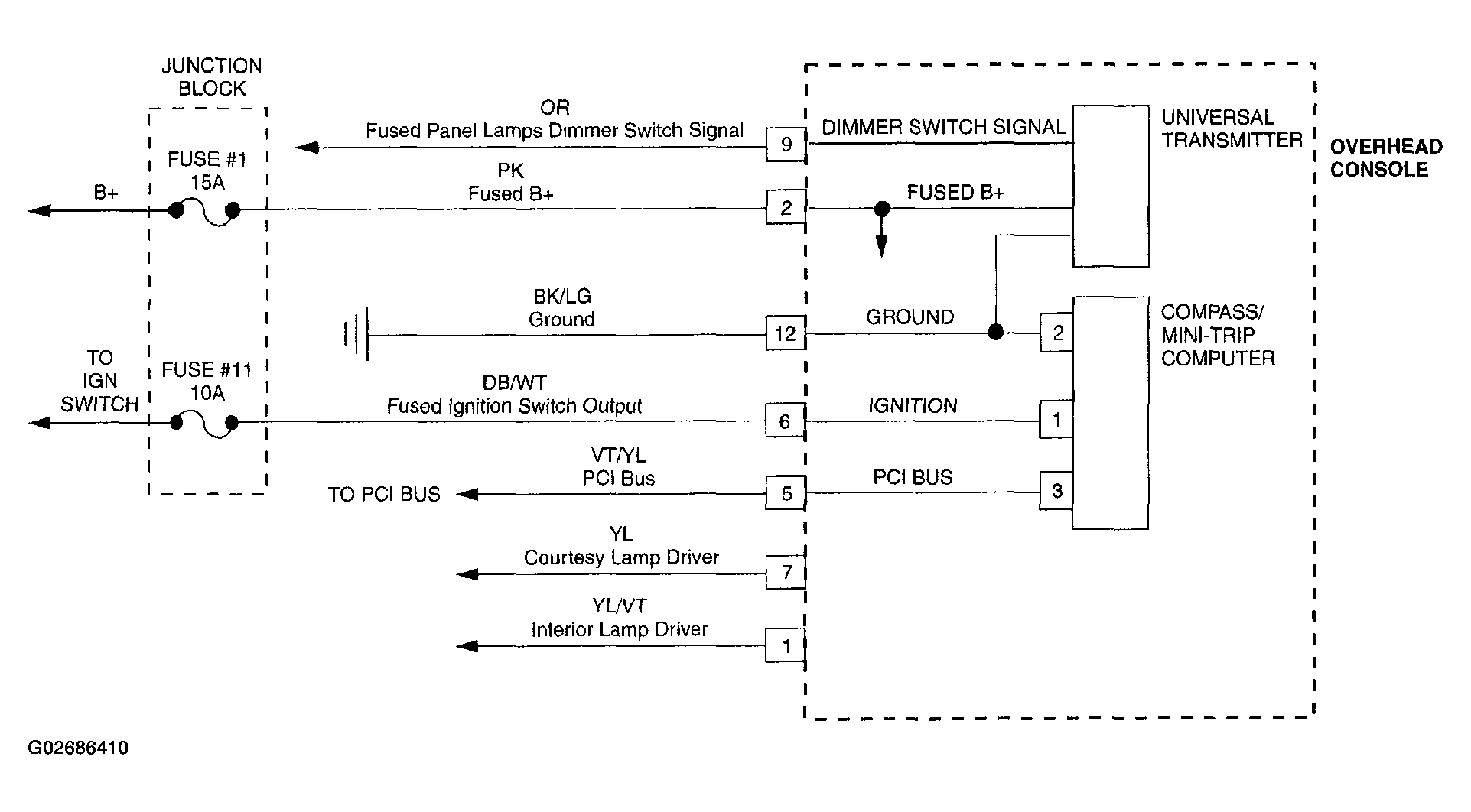

Fig 1: Overhead Console Schematic Diagram

G02686410

Courtesy of DAIMLERCHRYSLER CORP.
