Driver Door Module Connector End View (C2)

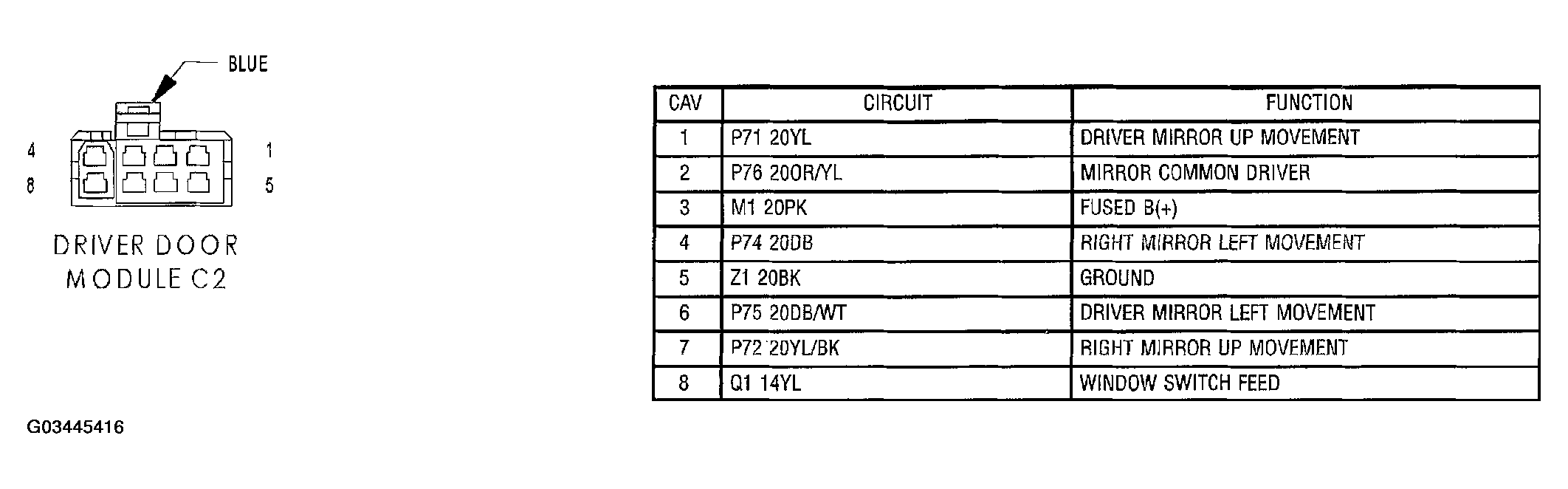

Fig 1: Driver Door Module Connector End View (C2)

G03445416

Courtesy of DAIMLERCHRYSLER CORP.
