Powertrain Control Module (4.7L Next Generation Controller) Connector End View (C1)

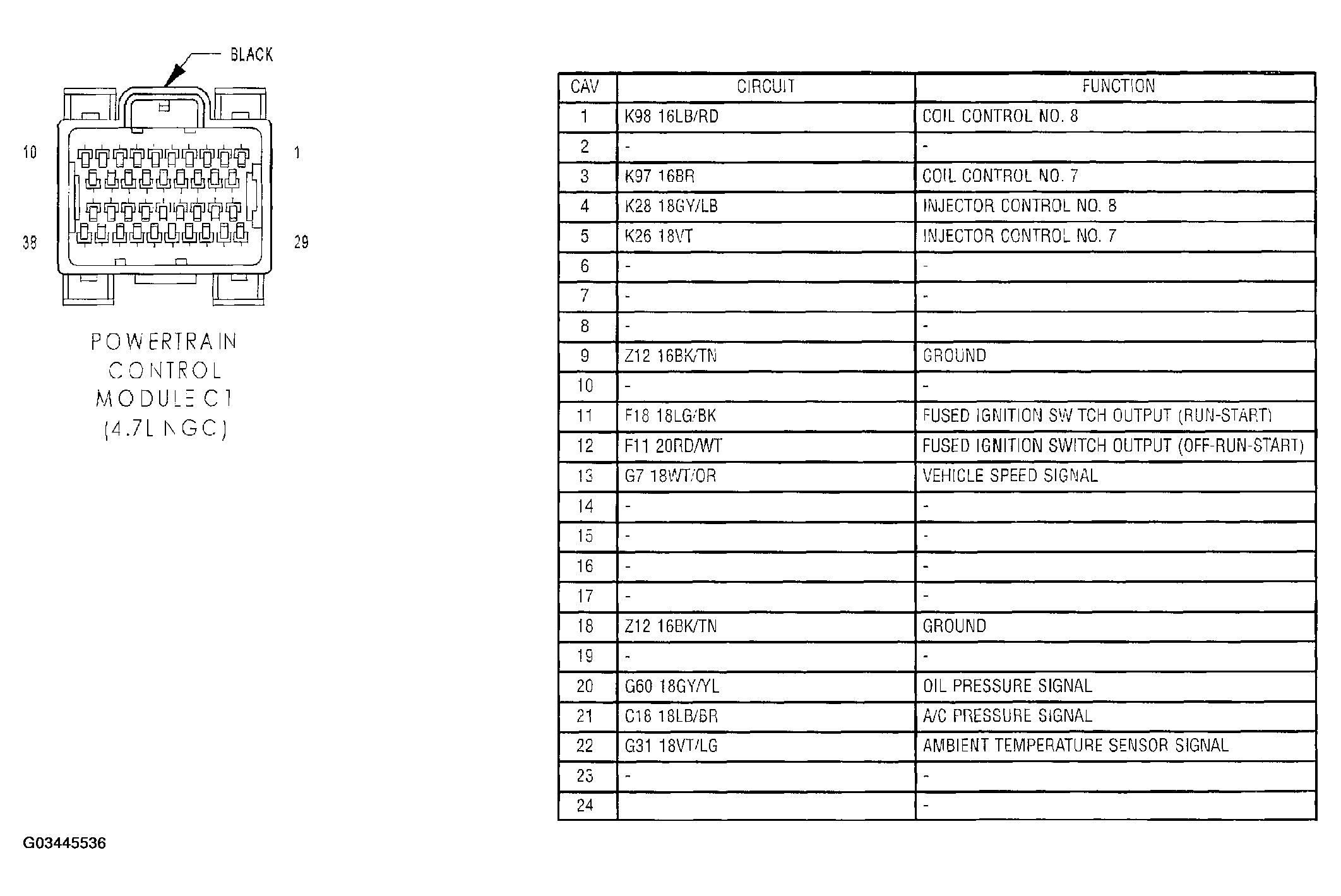

Fig 1: Powertrain Control Module (4.7L Next Generation Controller) Connector End View (C1)
G03445536Courtesy of DAIMLERCHRYSLER CORP.

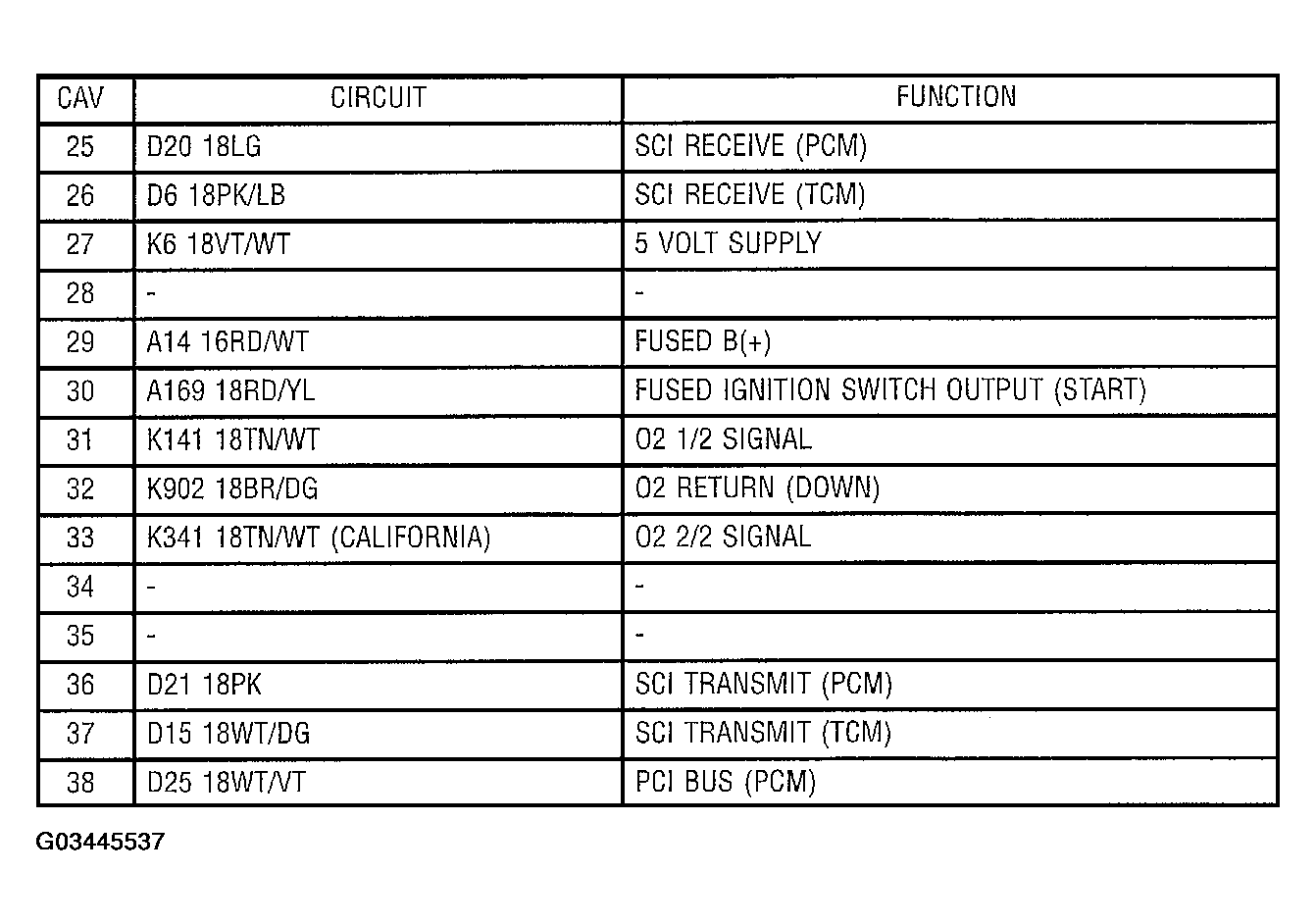

Fig 1: Powertrain Control Module (4.7L Next Generation Controller) Connector End View (C1)
G03445537Courtesy of DAIMLERCHRYSLER CORP.
