Passenger Power Mirror Connector End View

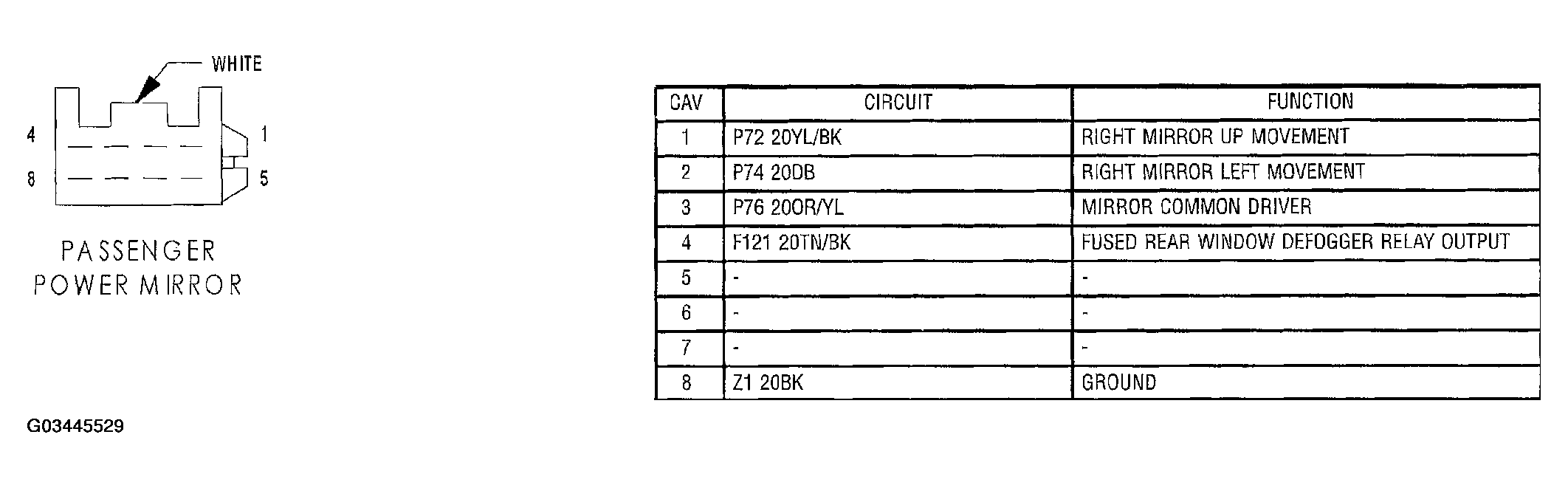

Fig 1: Passenger Power Mirror Connector End View

G03445529

Courtesy of DAIMLERCHRYSLER CORP.
