Generator Connector End View

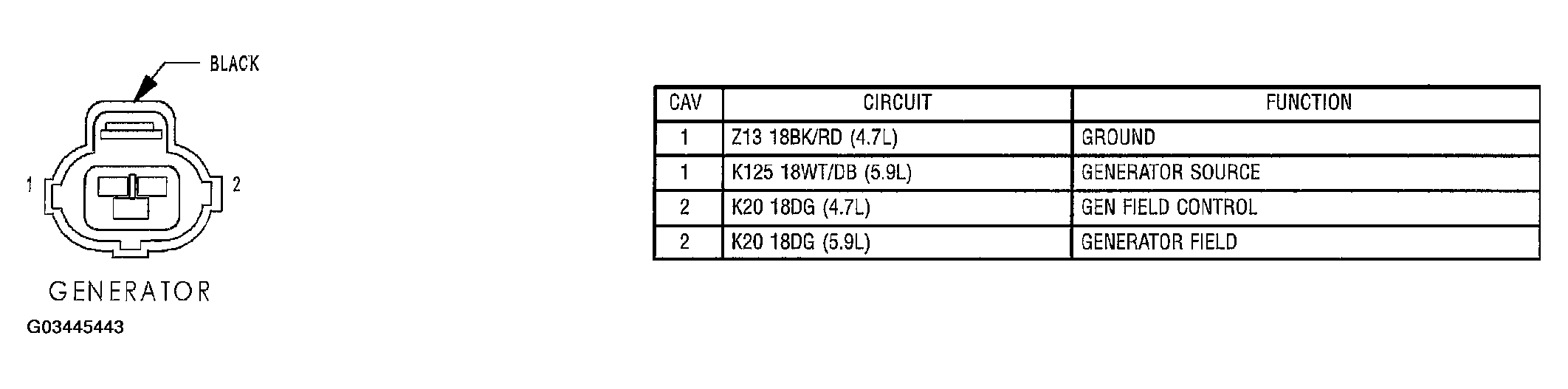

Fig 1: Generator Connector End View

G03445443

Courtesy of DAIMLERCHRYSLER CORP.
