Engine Coolant Temperature Sensor (5.9L) Connector End View

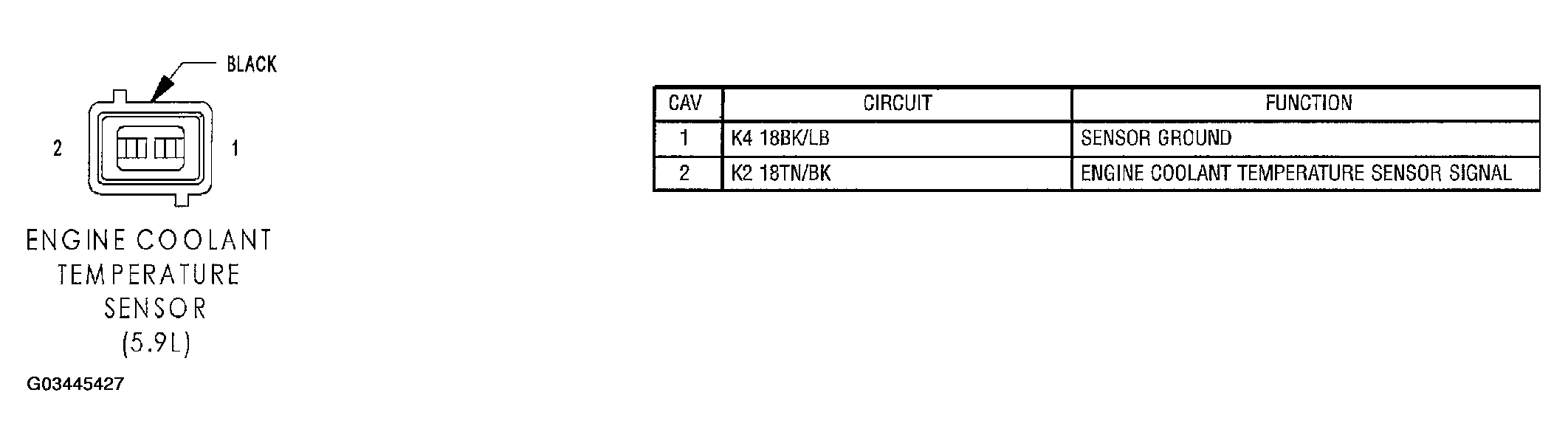

Fig 1: Engine Coolant Temperature Sensor (5.9L) Connector End View

G03445427

Courtesy of DAIMLERCHRYSLER CORP.
