Driver Power Seat Switch Connector End View

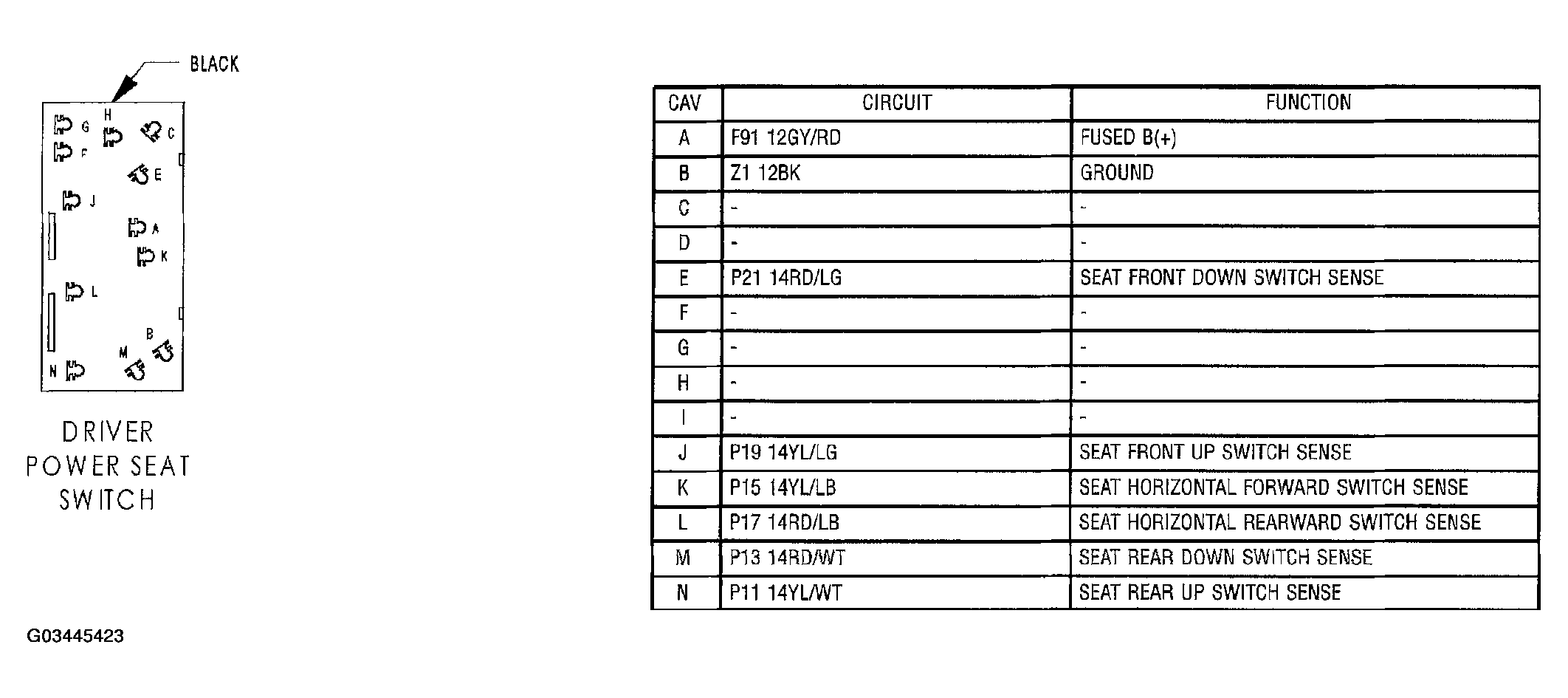

Fig 1: Driver Power Seat Switch Connector End View

G03445423

Courtesy of DAIMLERCHRYSLER CORP.
