Speed Control: Switch: Removal

WARNING: BEFORE BEGINNING ANY AIRBAG SYSTEM COMPONENT - REMOVAL OR- INSTALLATION, SEE AIR BAG RESTRAINT SYSTEMS ARTICLE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. THEN WAIT TWO MINUTES FOR SYSTEM CAPACITOR TO DISCHARGE BEFORE FURTHER SYSTEM SERVICE. FAILURE TO DO THIS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE INJURY.
  1. Disconnect and isolate negative battery cable.
  2. Remove airbag module. Refer to AIR BAG RESTRAINT SYSTEMS article for procedures.
  3. Remove switch-to-steering wheel mounting screws.

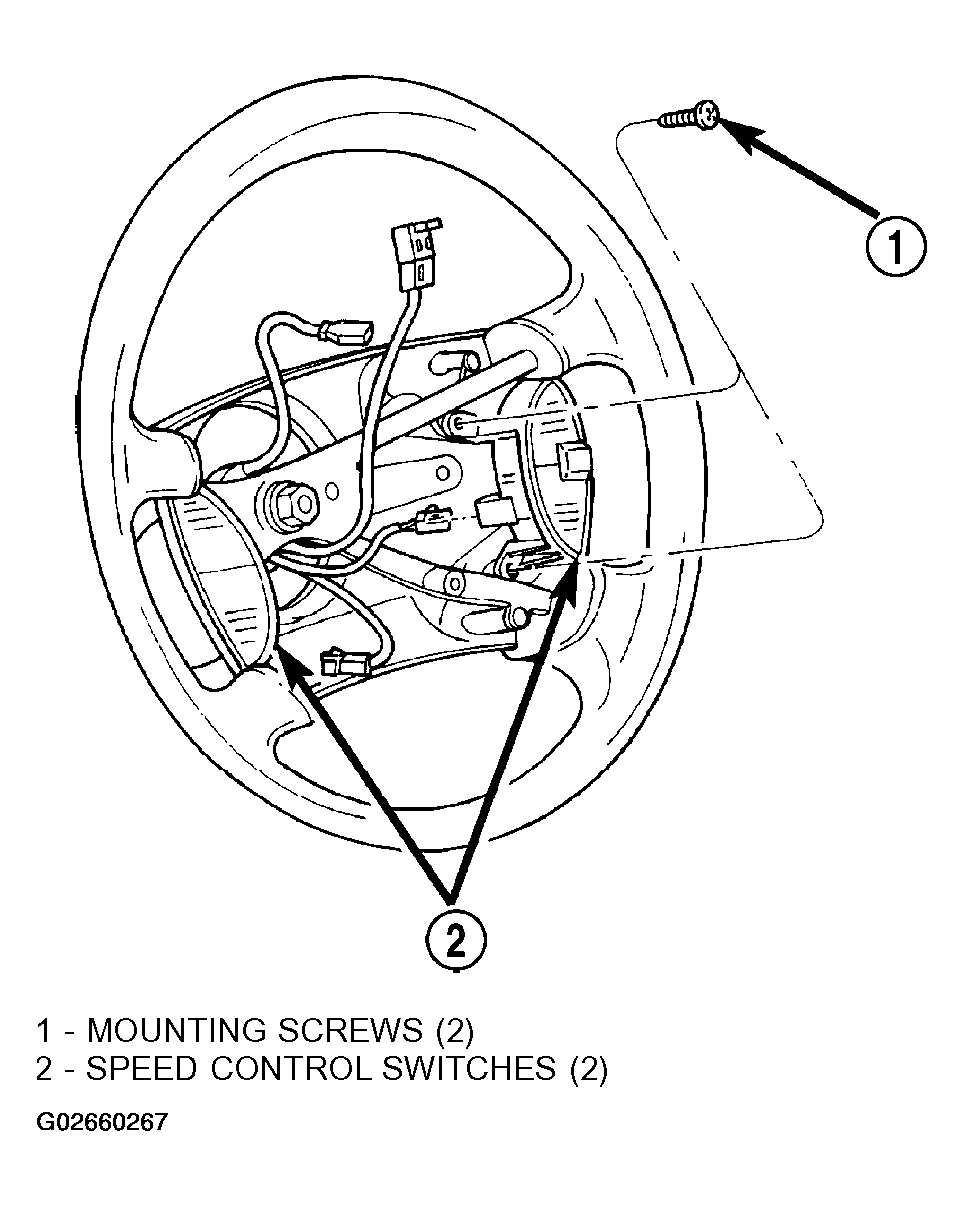

    Fig 1: Removing Switch To Steering Wheel Mounting Screws
    G02660267Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove switch.
  5. Remove electrical connector at switch.
