Engine Block Heater - 5.9L: Description
WARNING:
DO NOT operate engine unless block heater cord has been disconnected from power source and secured in place. The power cord must be secured in its retaining clips and routed away from exhaust manifolds and moving parts.
An optional engine block heater is available on all models. The heater is equipped with a power cord. The heater is mounted in a core hole of the engine cylinder block (in place of a freeze plug) with the heating element immersed in engine coolant. The cord is attached to an engine compartment component with tie-straps.

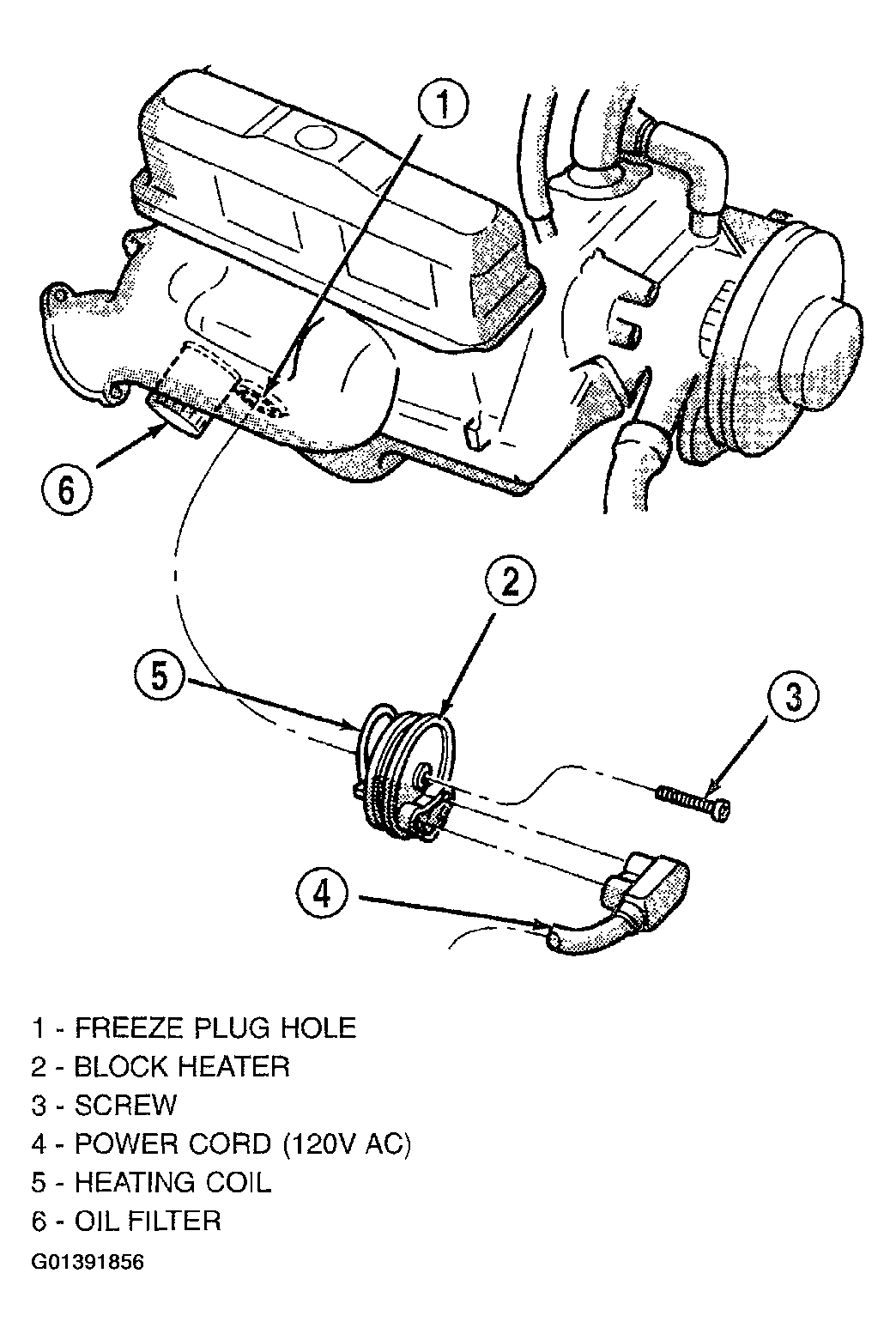

The 5.9L gas powered engine has the block heater located on the right side of engine next to the oil filter. (Fig 1).
