System Control Mode Time-Out

When Monitored: Vehicle in anti-lock control mode. Vehicle speed above 6 km/h (4 mph) for 2 seconds.

Set Condition: When monitored conditions have been satisfied for 120 consecutive controller checks spaced 1 second apart.

POSSIBLE CAUSES

1. CAB - NO RESPONSE TO INPUT
2. BRAKE LAMP SWITCH
3. BRAKE LAMP SWITCH SENSE CIRCUIT
4. CAB INTERNAL FAULT

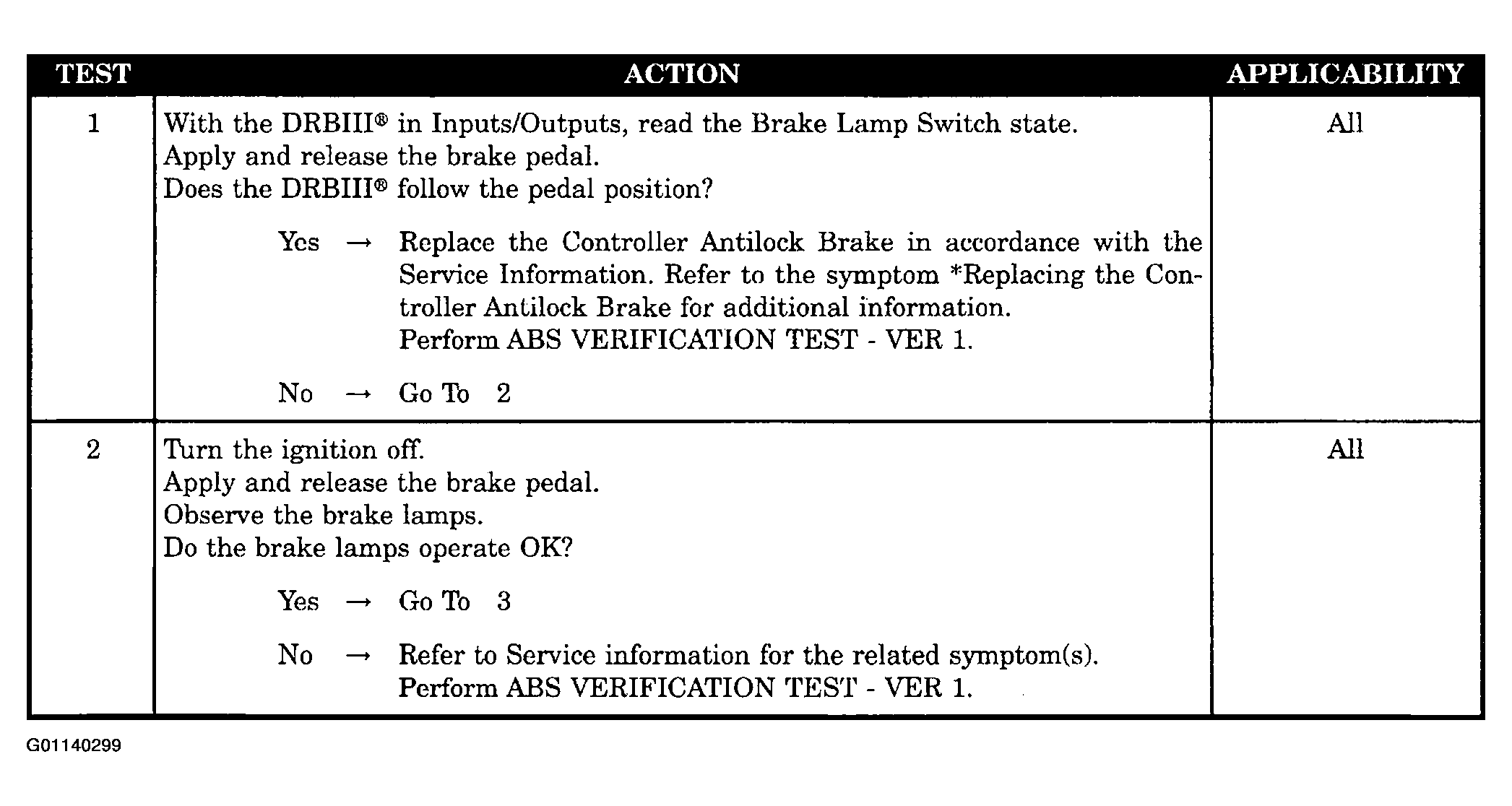

   Fig 1: Testing System Control Mode Time-Out (1 Of 2)

   Courtesy of DAIMLERCHRYSLER CORP.

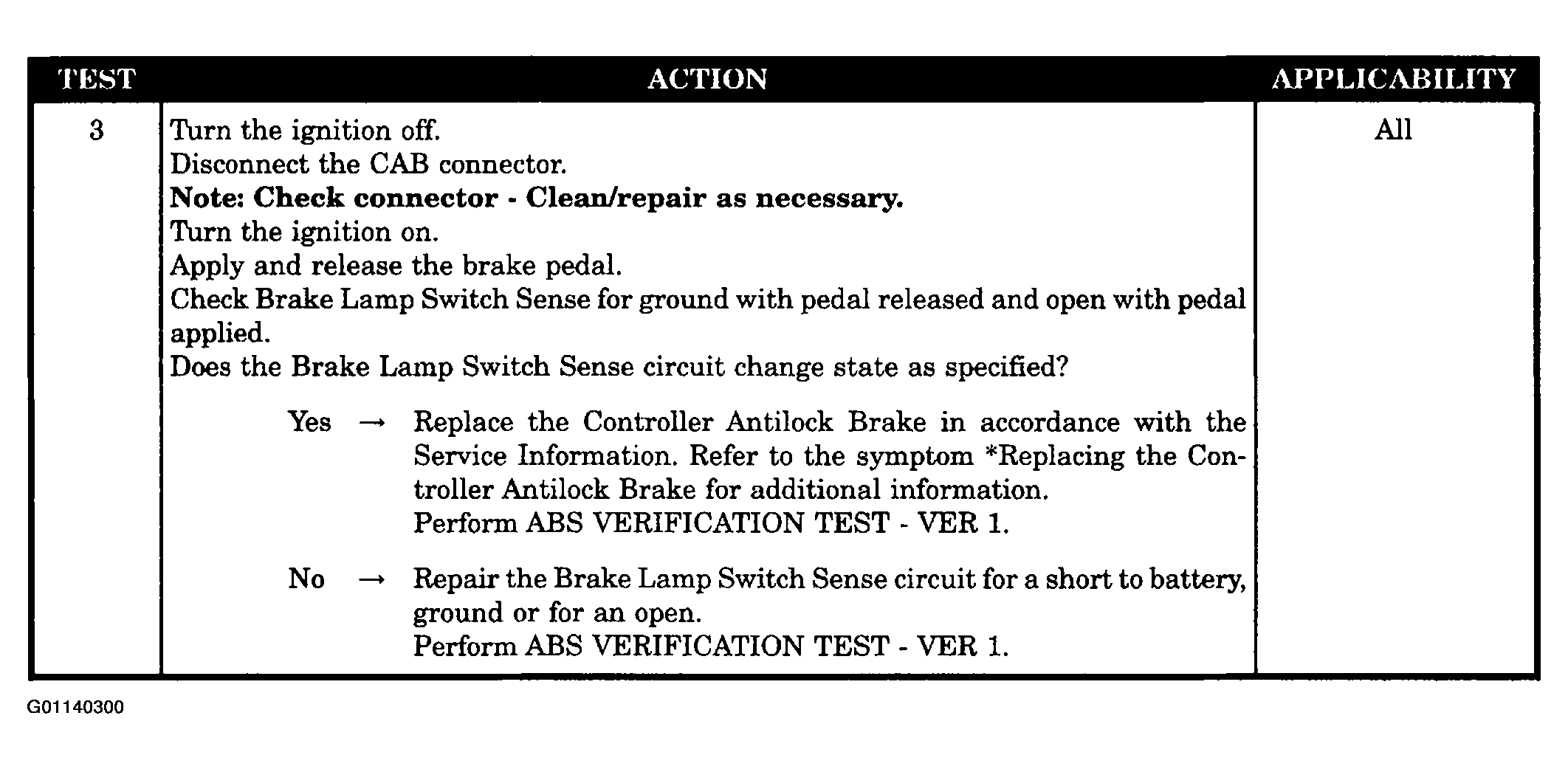

Fig 2: Testing System Control Mode Time-Out (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
