Component Locations

NOTE: For component locations, refer to COMPONENT LOCATIONS table. See Fig 1 -Fig 5 .

COMPONENT LOCATIONS

Component	Location
Driver Door Module	On The Driver Side Front Door Trim Panel
Instrument Panel Junction Block	On Left End Of Instrument Panel
Power Mirror Adjustment Switch	In Driver Door Module
Power Mirror Selector Switch	In Driver Door Module
Power Distribution Center	Left Side Of Engine Compartment, Near Battery

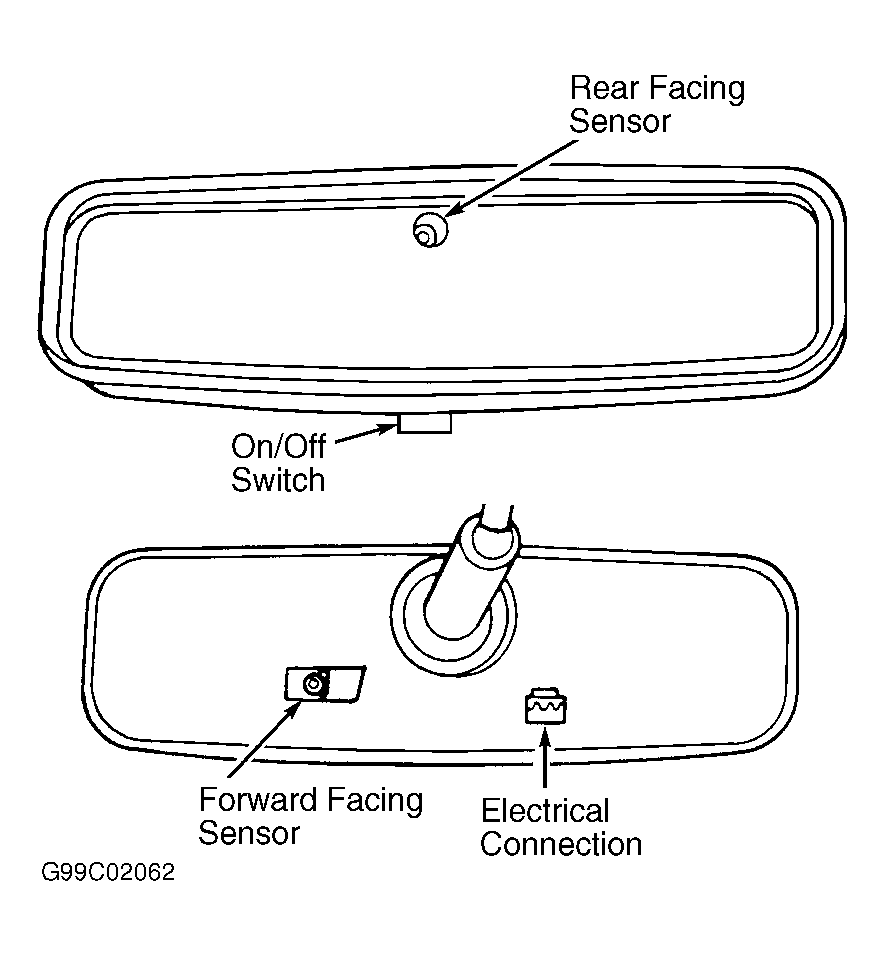

Fig 1: Locating Automatic Day/Night Mirror Components

Courtesy of CHRYSLER CORP.

Fig 2: Locating Instrument Panel Junction Block

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 3: Locating Instrument Panel Junction Block Components

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: Locating Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 5: Locating Power Distribution Center Components

Courtesy of DAIMLERCHRYSLER CORPORATION
