Installation (Durango)
CAUTION:
When fuel pump module is removed from fuel tank, rubber gasket must be replaced. DO NOT reuse rubber gasket.
- Ensure sealing area on fuel tank is clean. Using NEW rubber gasket, install fuel pump module on fuel tank. DO NOT reuse rubber gasket. Ensure rubber gasket remains in place.NOTE: Fuel pump module must be properly positioned in fuel tank to prevent float from contacting fuel tank.

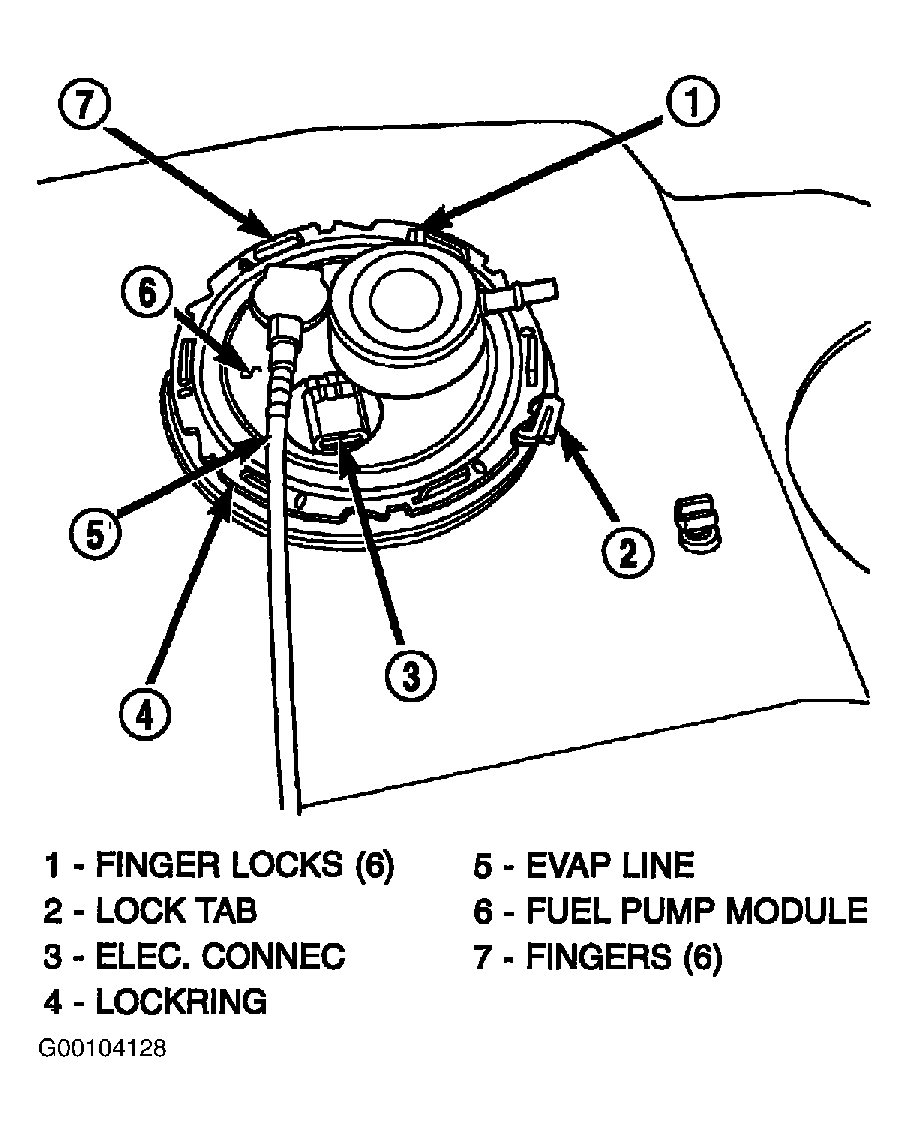

- Rotate fuel pump module so fuel pump module is aligned on fuel tank. See Fig 1. Apply a small amount of oil to the 6 lock ring fingers. Install and hand tighten fuel pump module lock ring. Using a brass or bronze drift punch, rotate lock ring clockwise until lock ring fingers drop into finger locks and locking tab aligns with notch. Reinstall fuel tank.
