Bus Failure Message - Bus (+) & Bus (-) Shorted Together

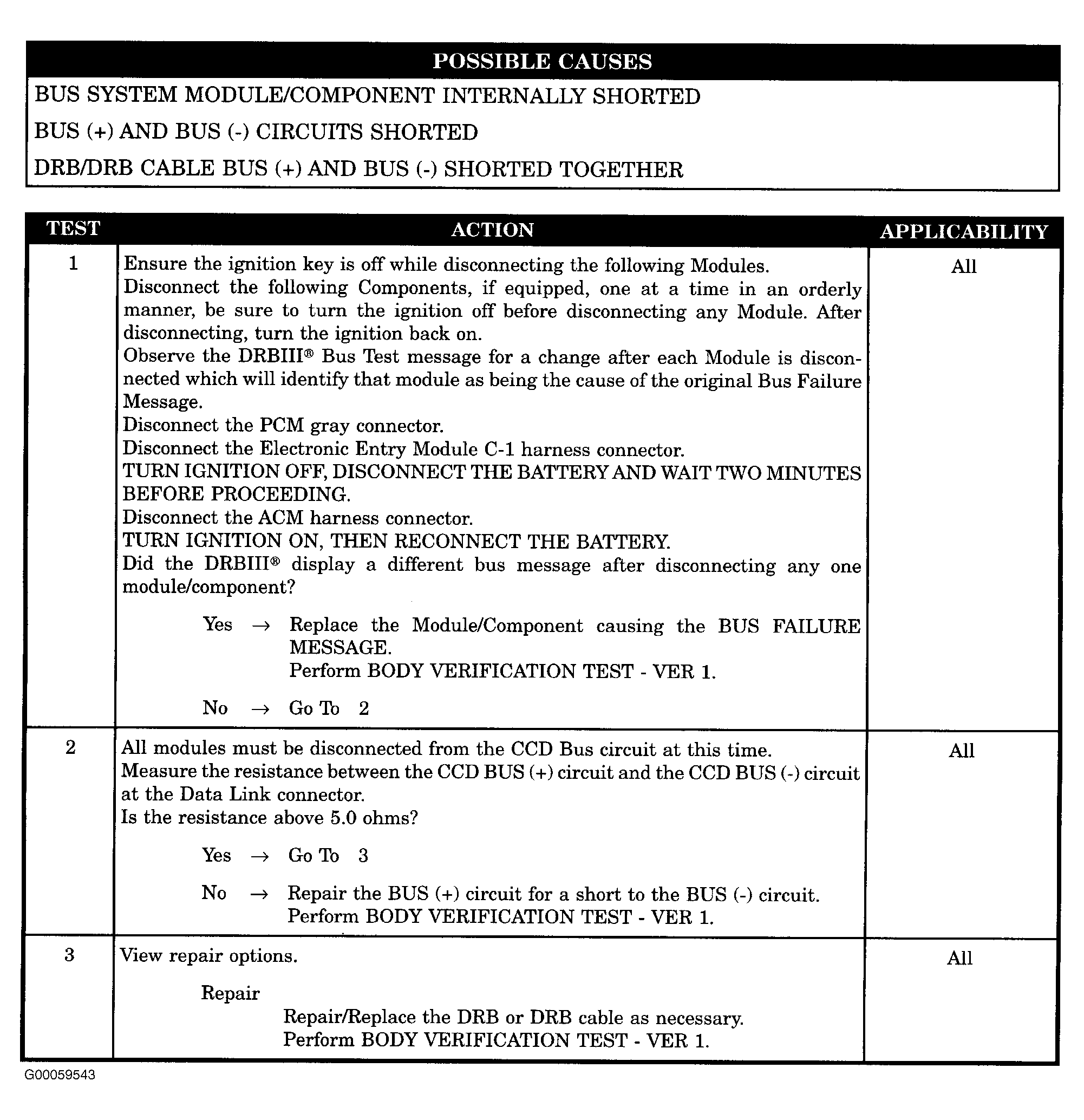

Fig 1: BUS (+) & BUS (-) Shorted Together

G00059543

Courtesy of DAIMLERCHRYSLER CORPORATION
