DTC P1296: No 5 Volts To Map Sensor

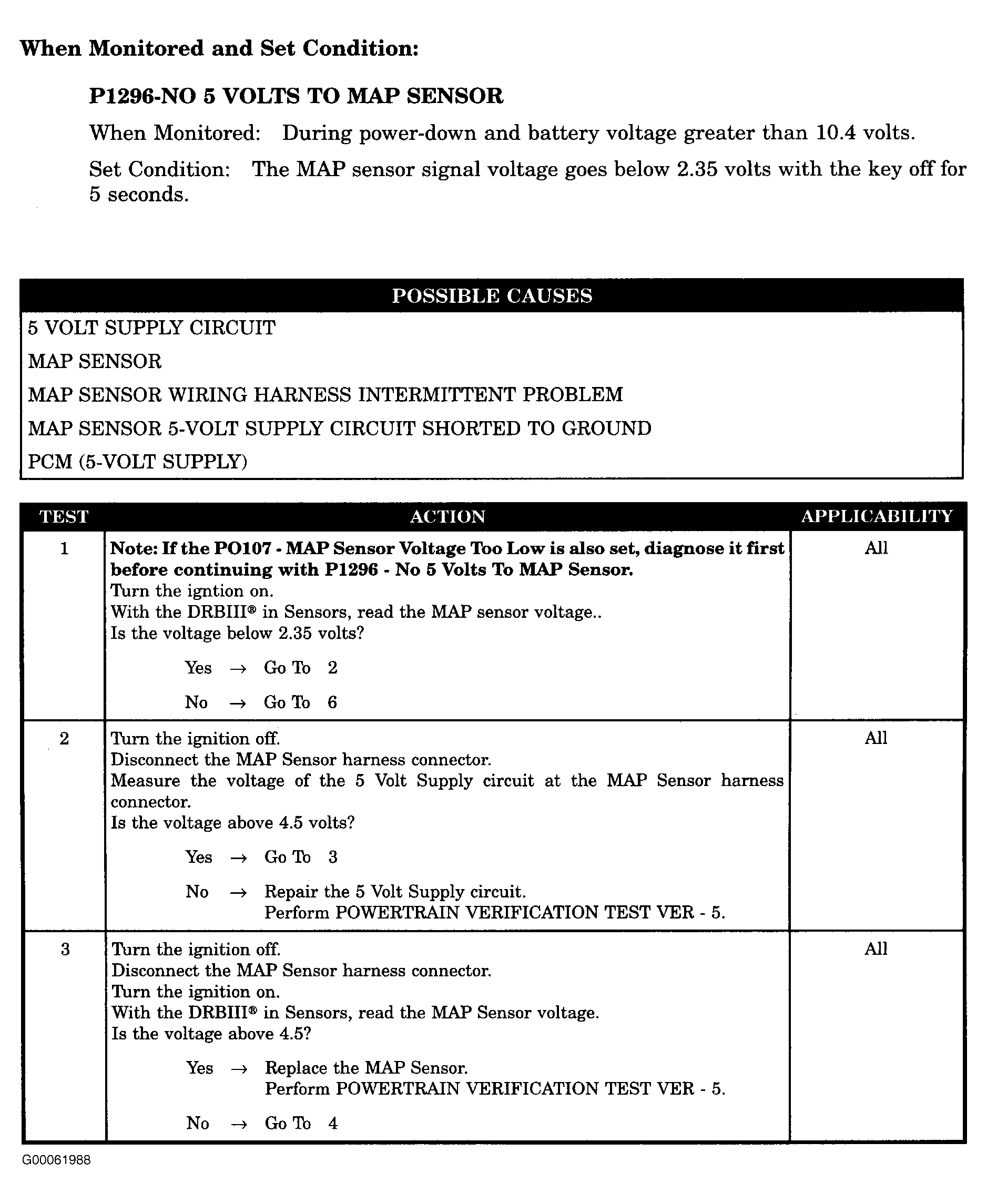

Fig 1: DTC P1296: No 5 Volts To MAP Sensor (1 Of 2)
G00061988Courtesy of DAIMLERCHRYSLER CORPORATION

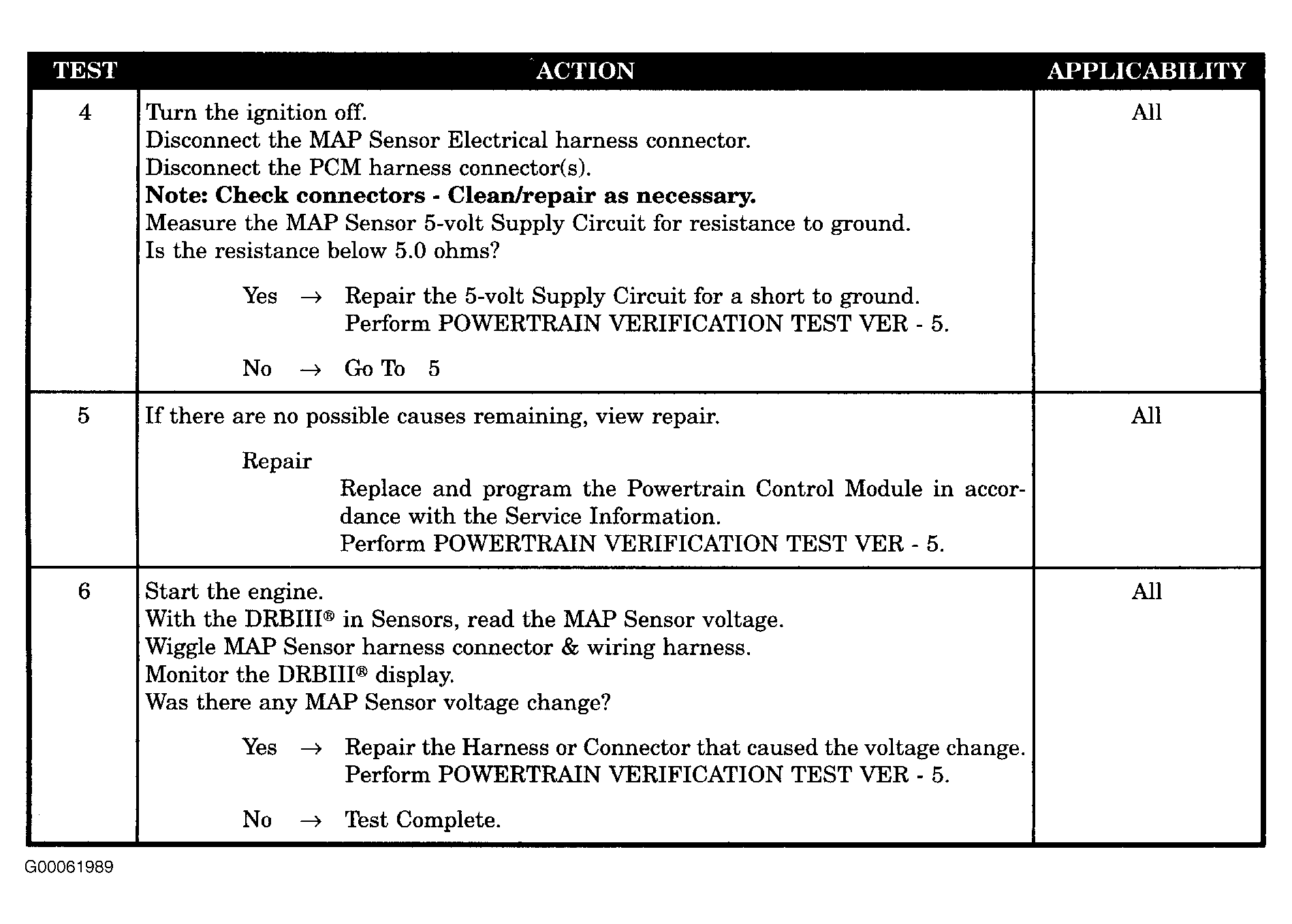

Fig 2: DTC P1296: No 5 Volts To MAP Sensor (2 Of 2)
G00061989Courtesy of DAIMLERCHRYSLER CORPORATION
