DTC P0462: Fuel Level Sending Unit Volts Too Low

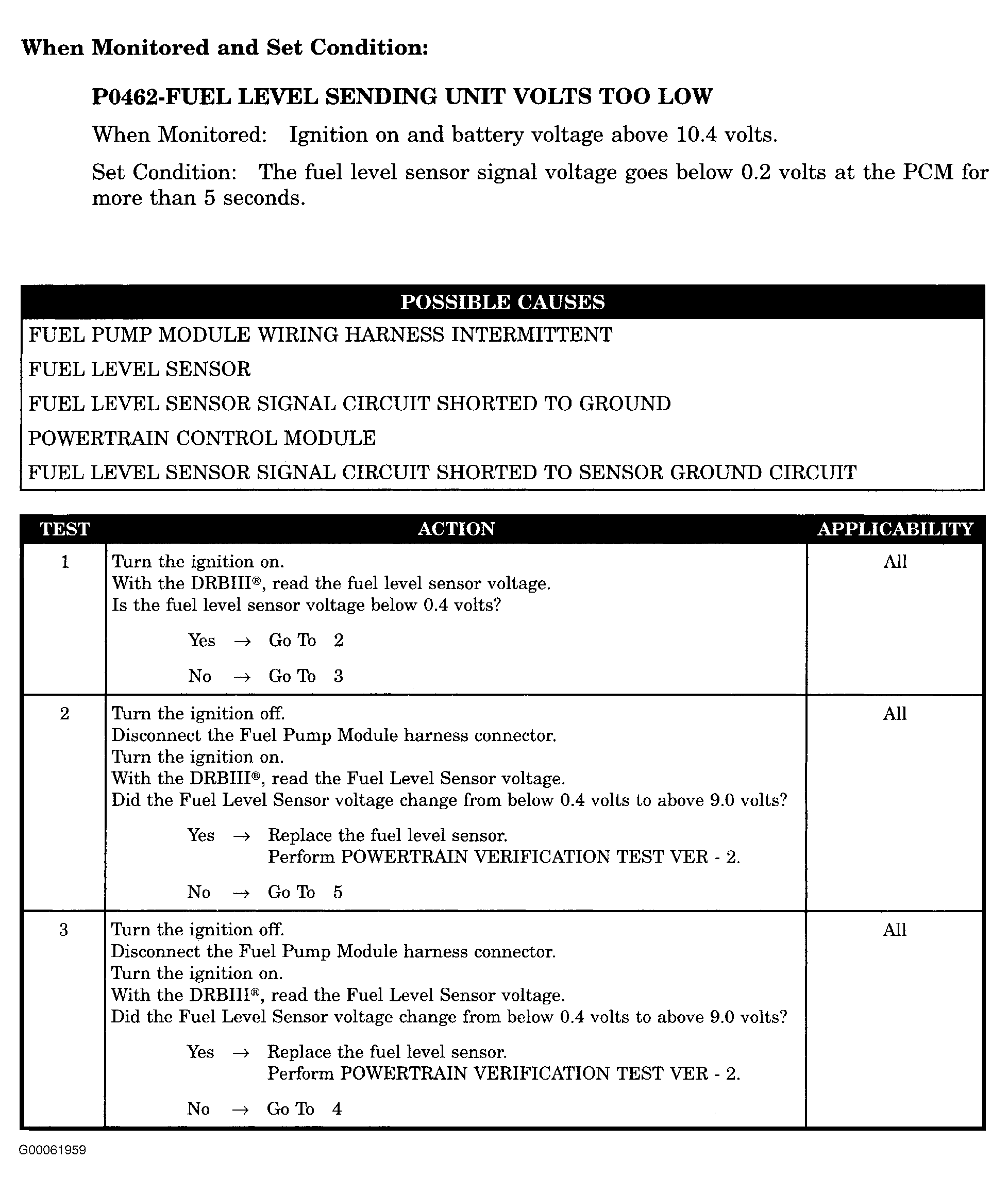

Fig 1: DTC P0462: Fuel Level Sending Unit Volts Too Low (1 Of 2)
G00061959Courtesy of DAIMLERCHRYSLER CORPORATION

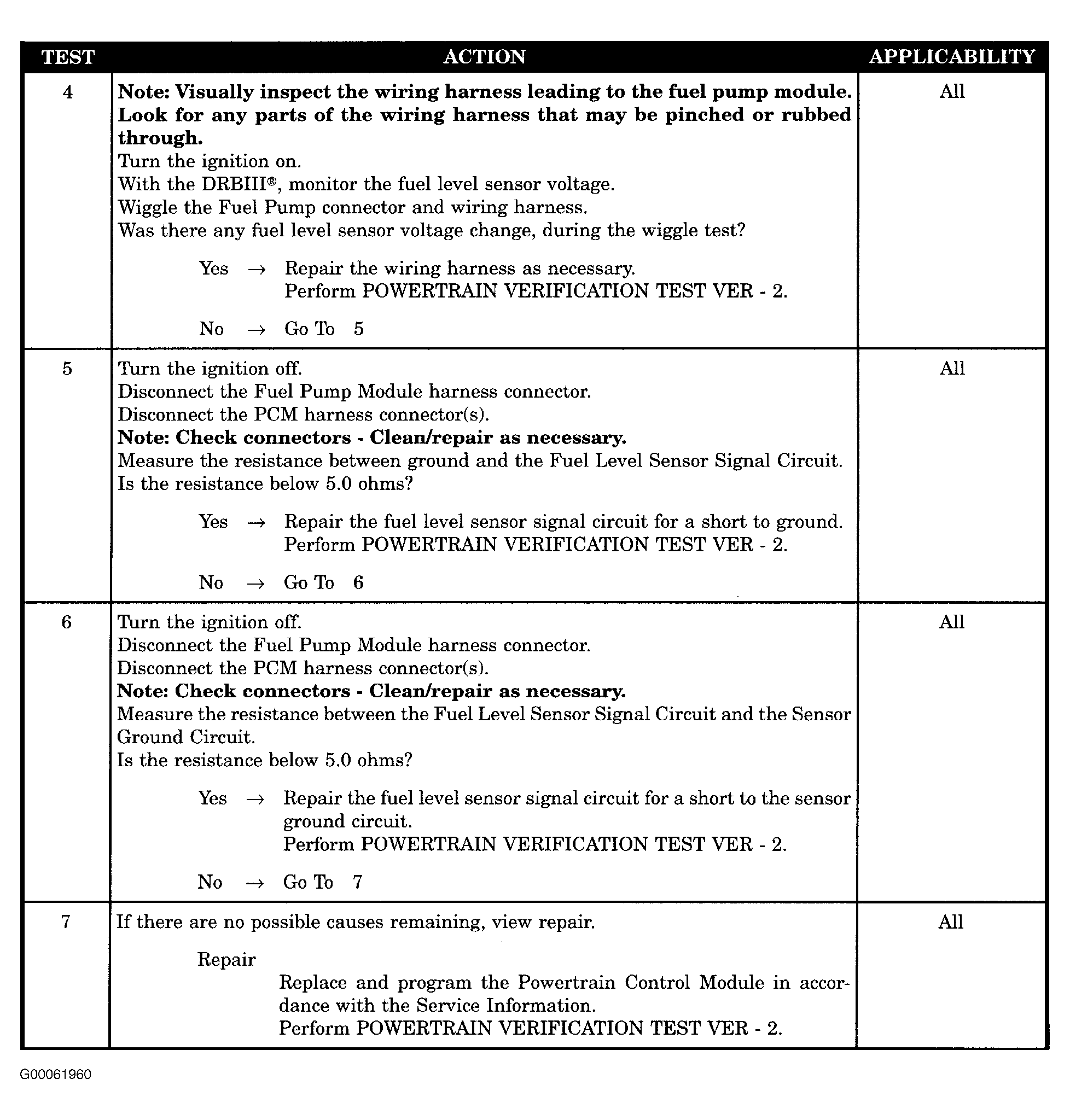

Fig 2: DTC P0462: Fuel Level Sending Unit Volts Too Low (2 Of 2)
G00061960Courtesy of DAIMLERCHRYSLER CORPORATION
