DTC P0201-P210: Injector #1-10 Control Circuit

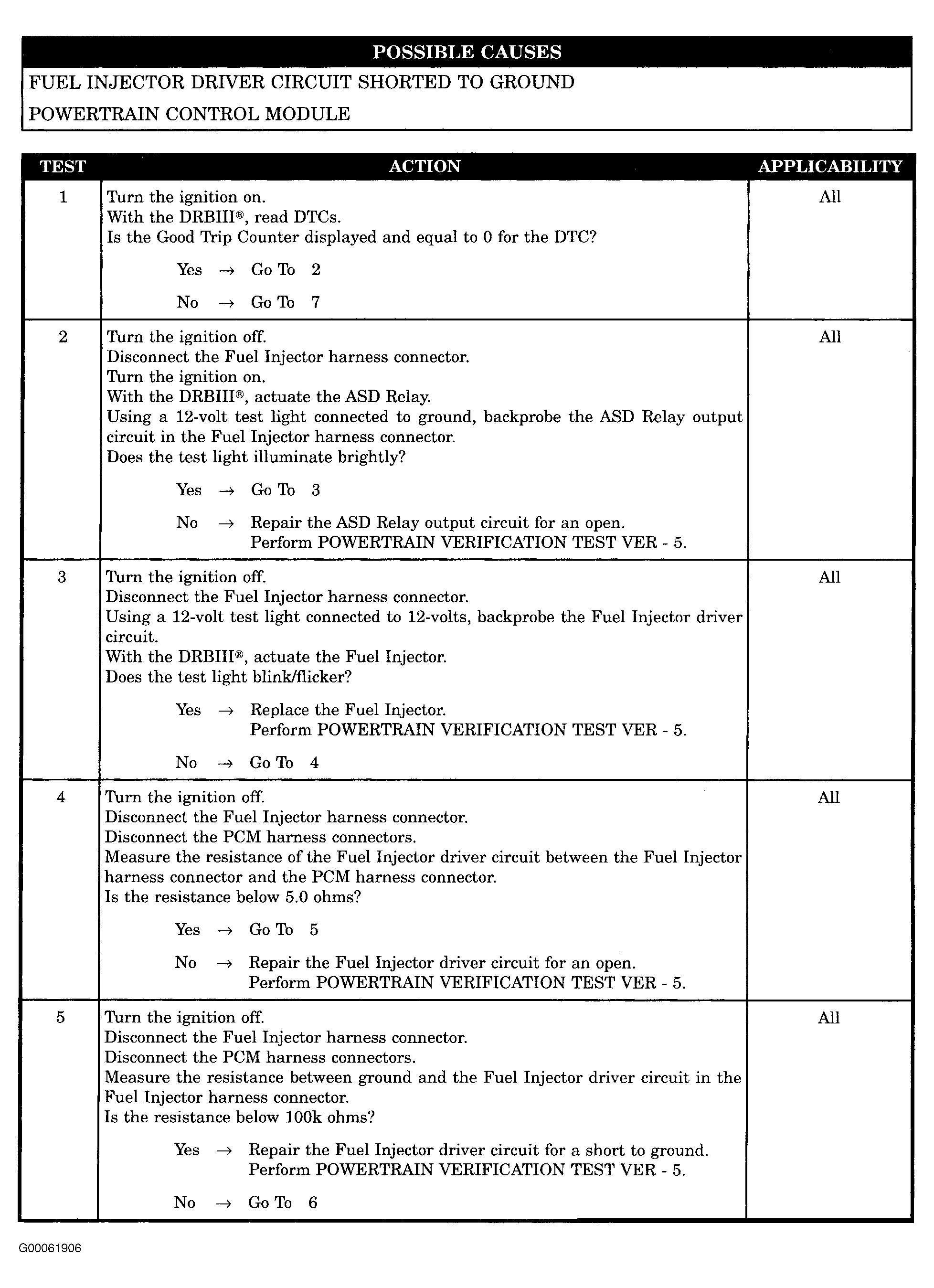

Fig 1: DTC P0201: Injector Control Circuit (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

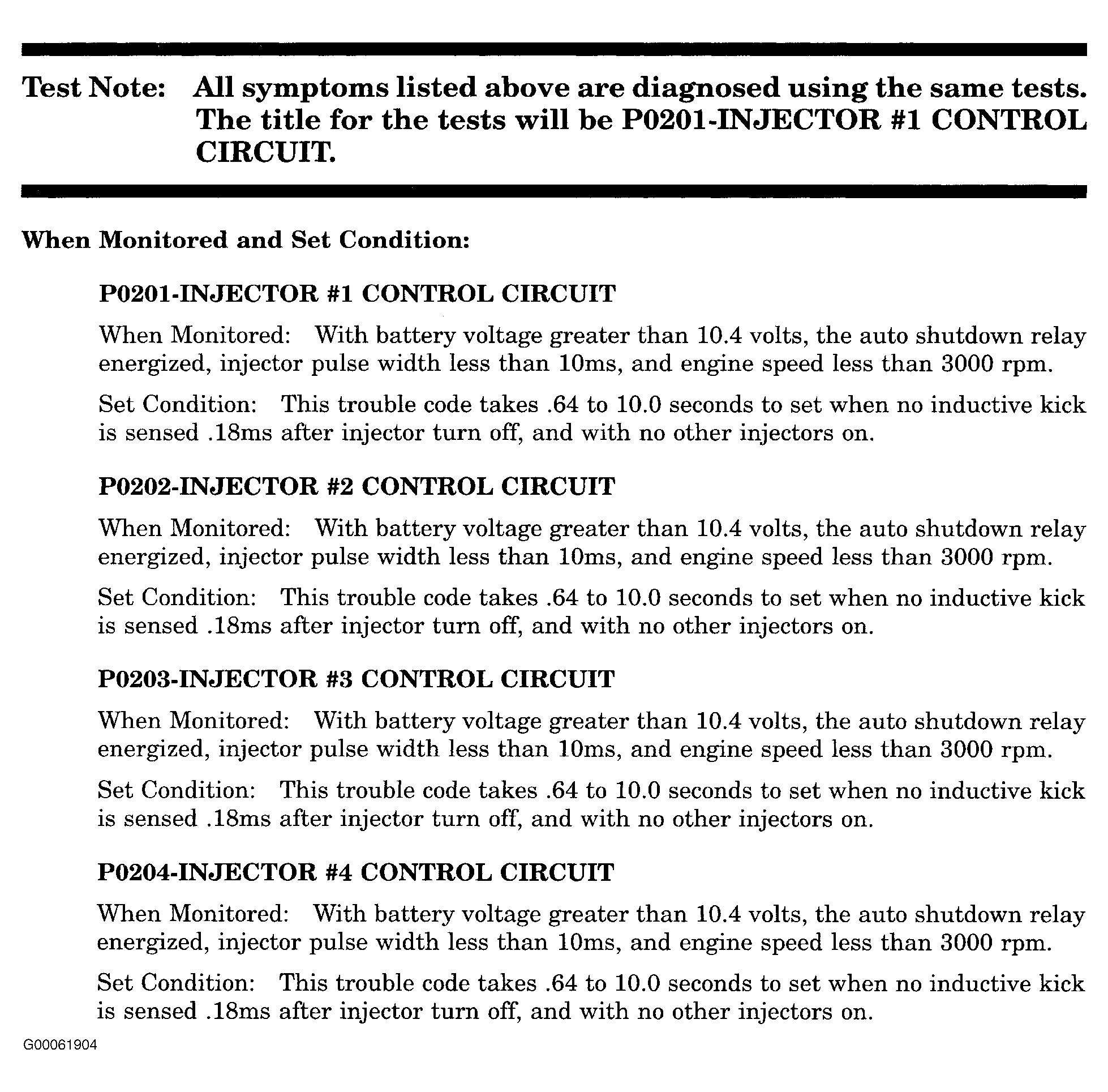

Fig 2: DTC P0201: Injector Control Circuit (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

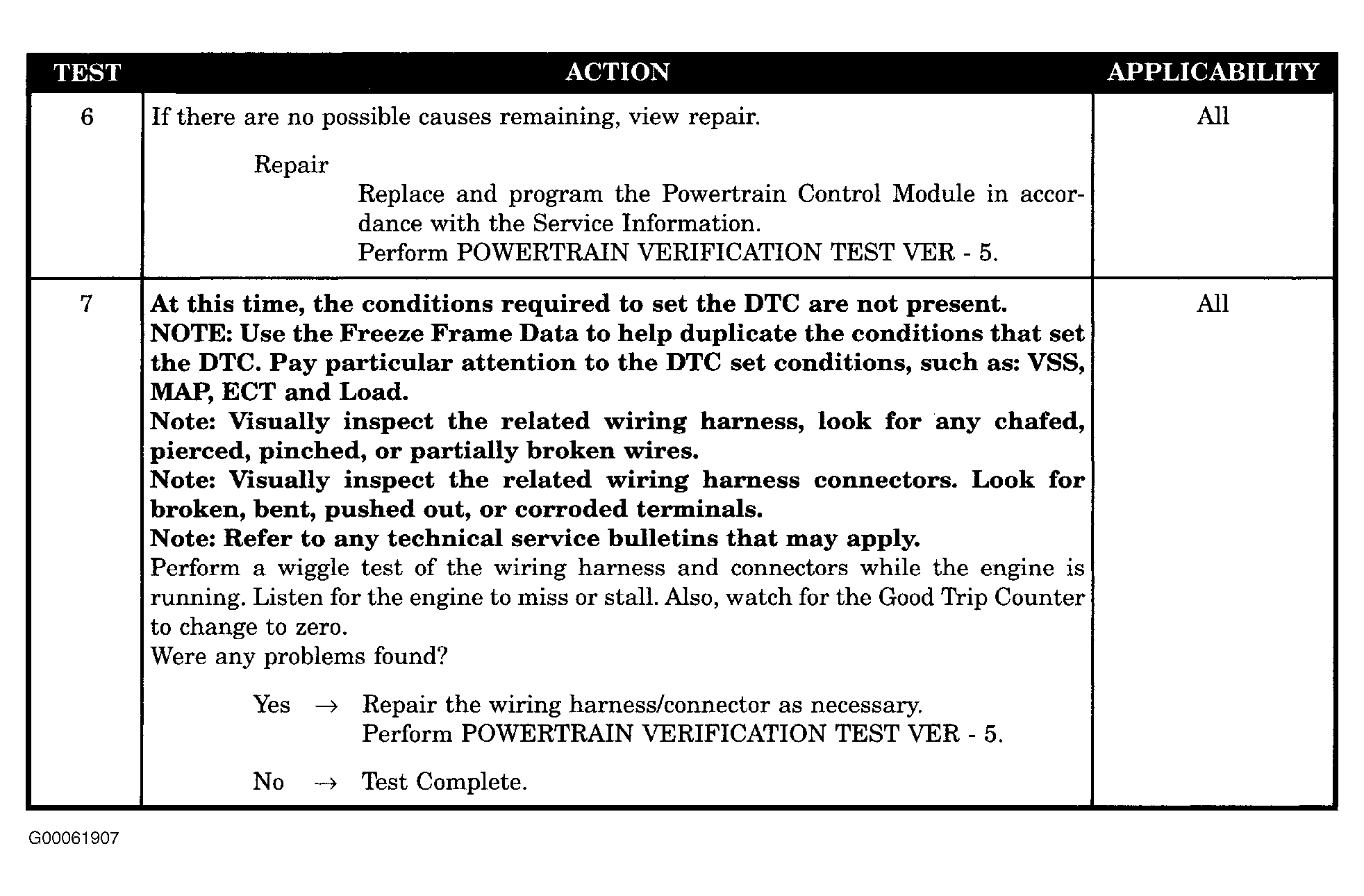

Fig 3: DTC P0201: Injector Control Circuit (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

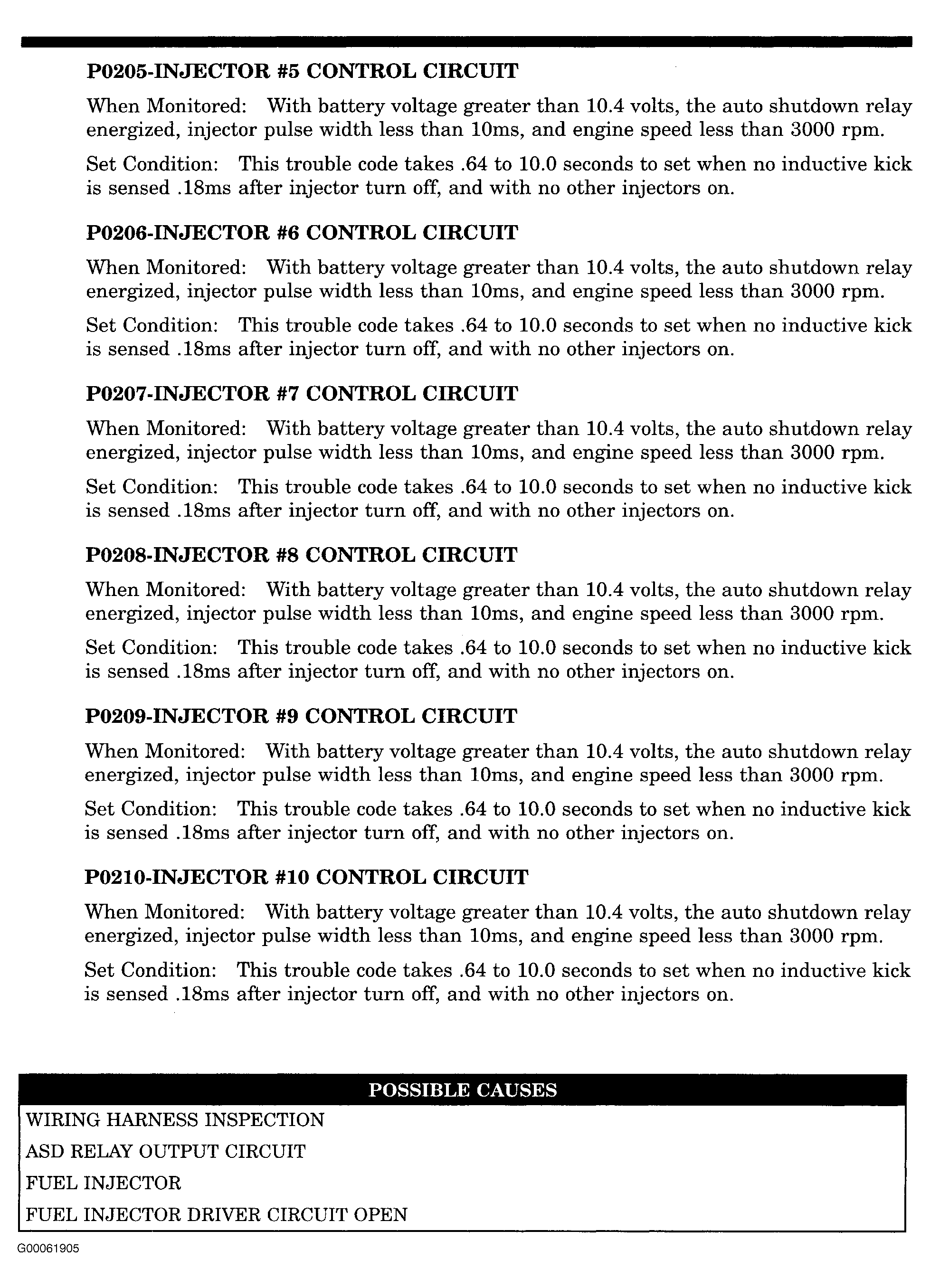

Fig 4: DTC P0201: Injector Control Circuit (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
