DTC P0135; P0141; P0155; P0161: O2 Sensor Heater Failure

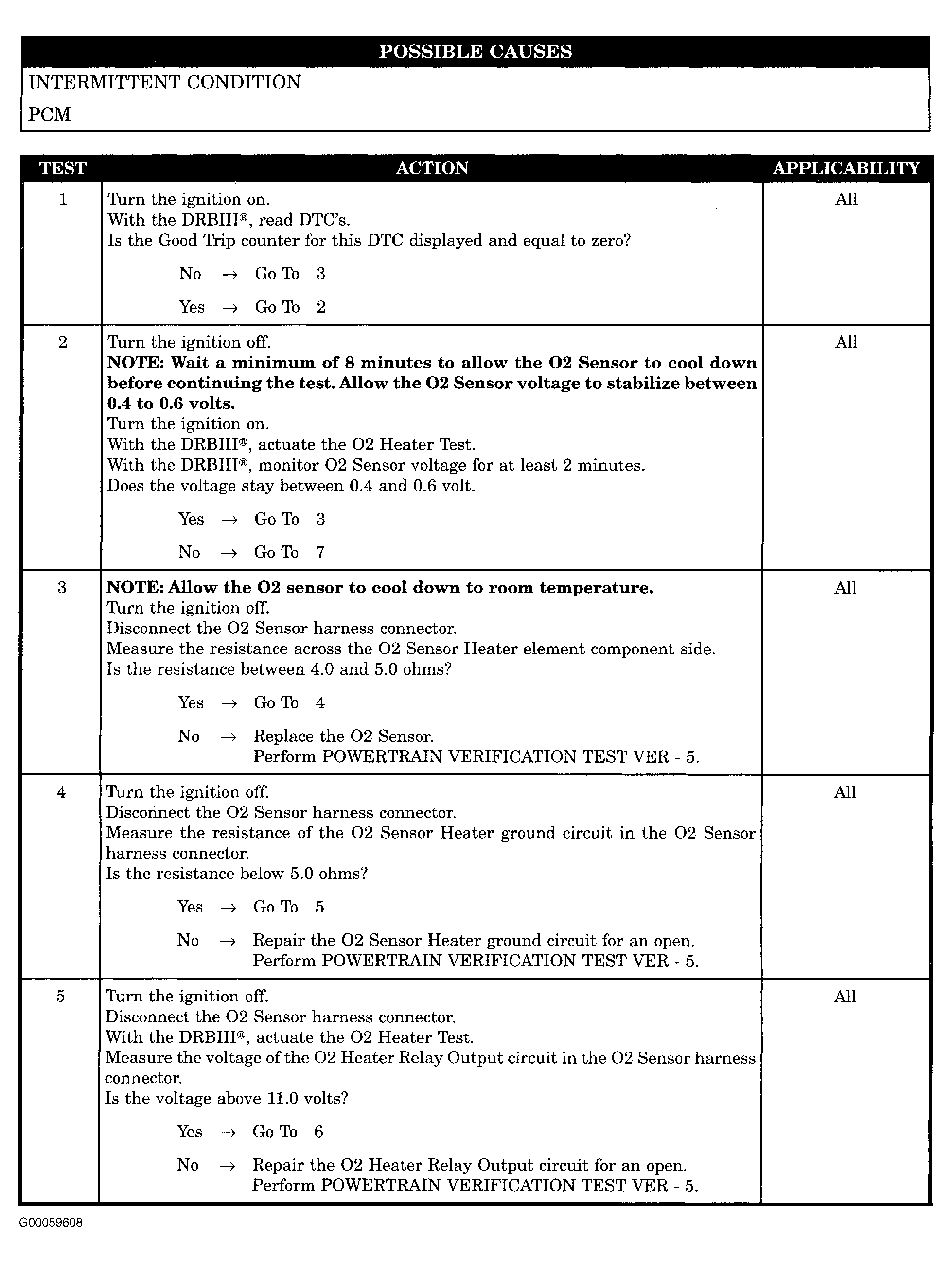

Fig 1: DTC P0135: O2 Sensor Heater Failure (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

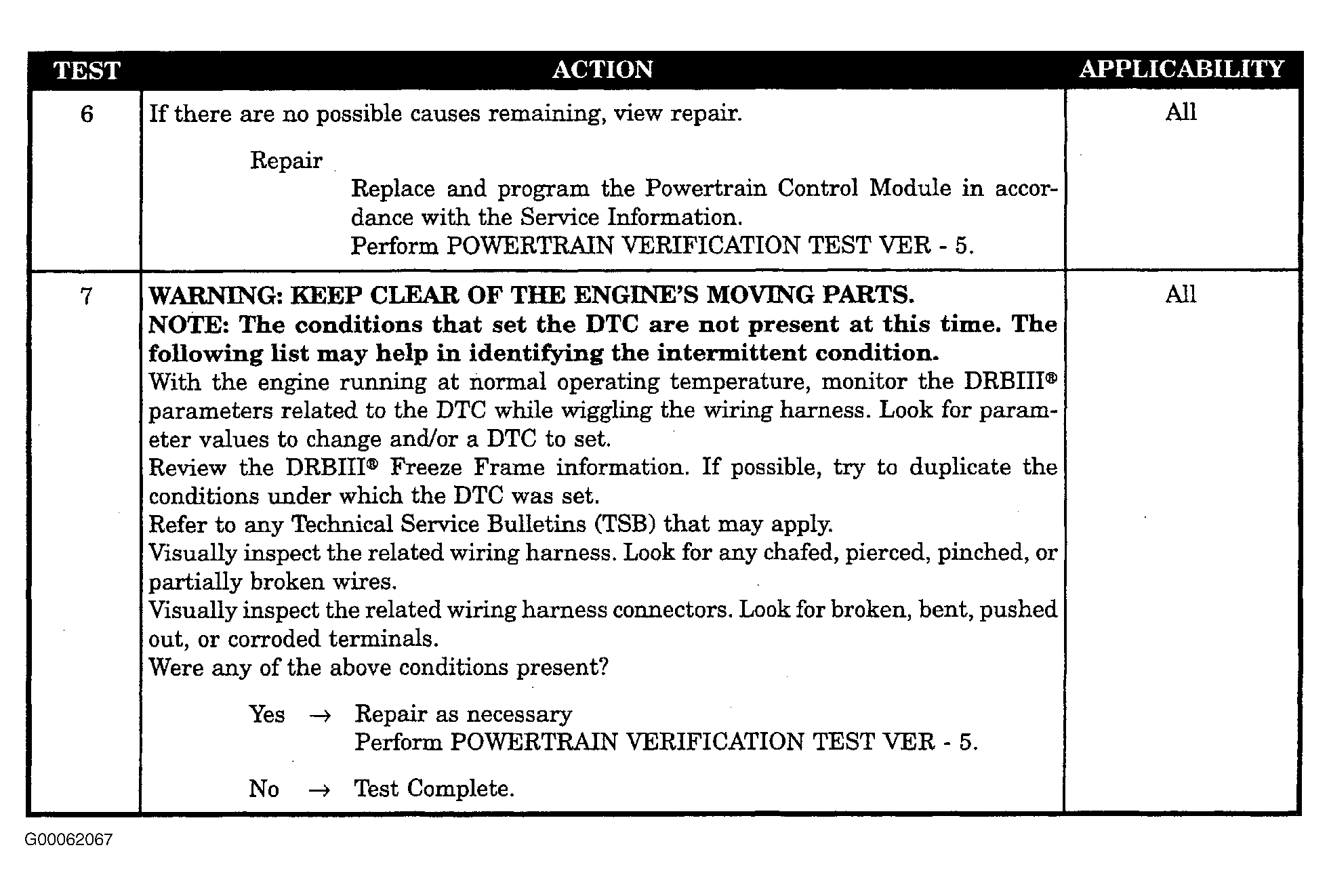

Fig 2: DTC P0135: O2 Sensor Heater Failure (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

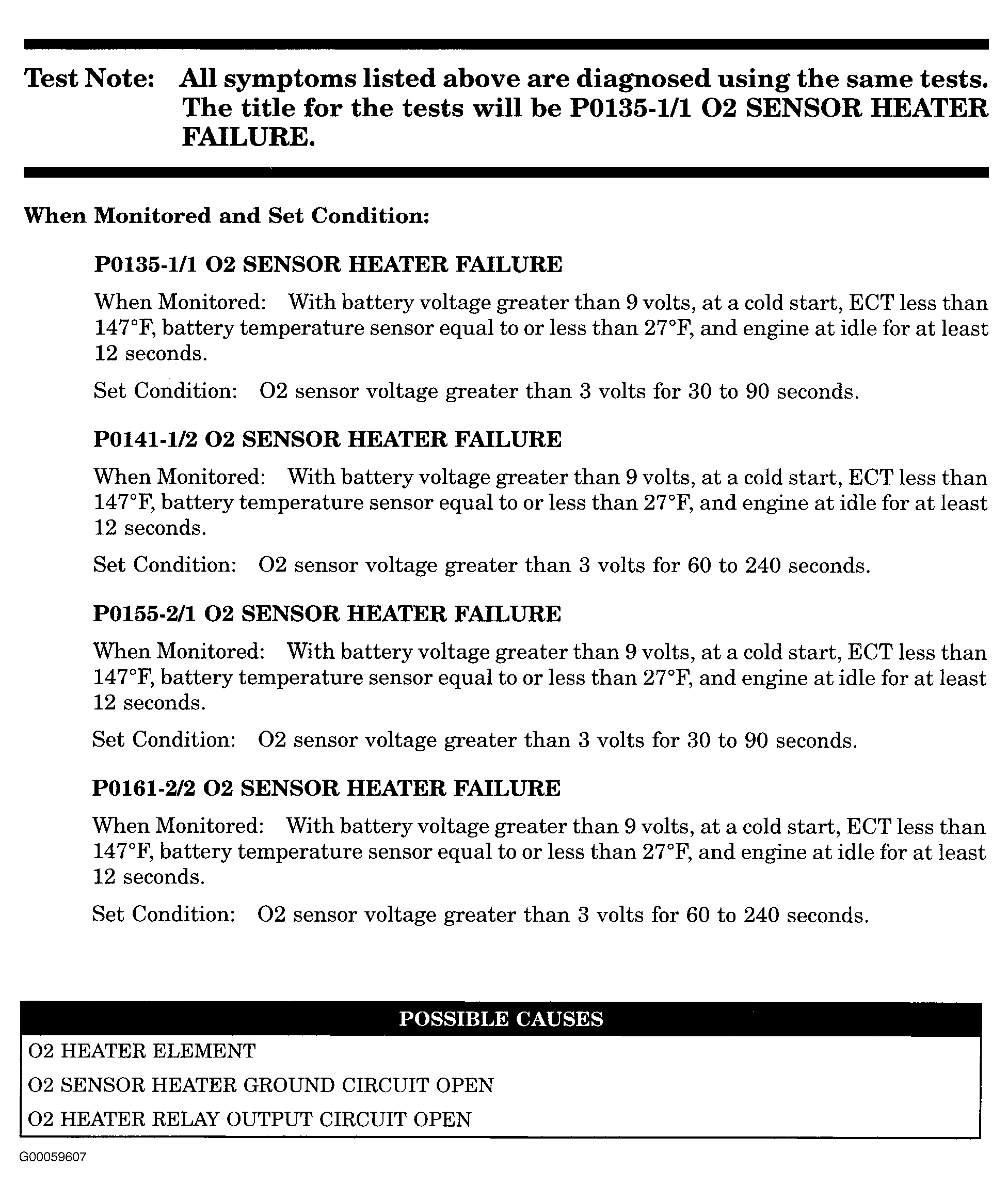

Fig 3: DTC P0135: O2 Sensor Heater Failure (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION
