Loss Of Ignition Run/Start (Active): Testing

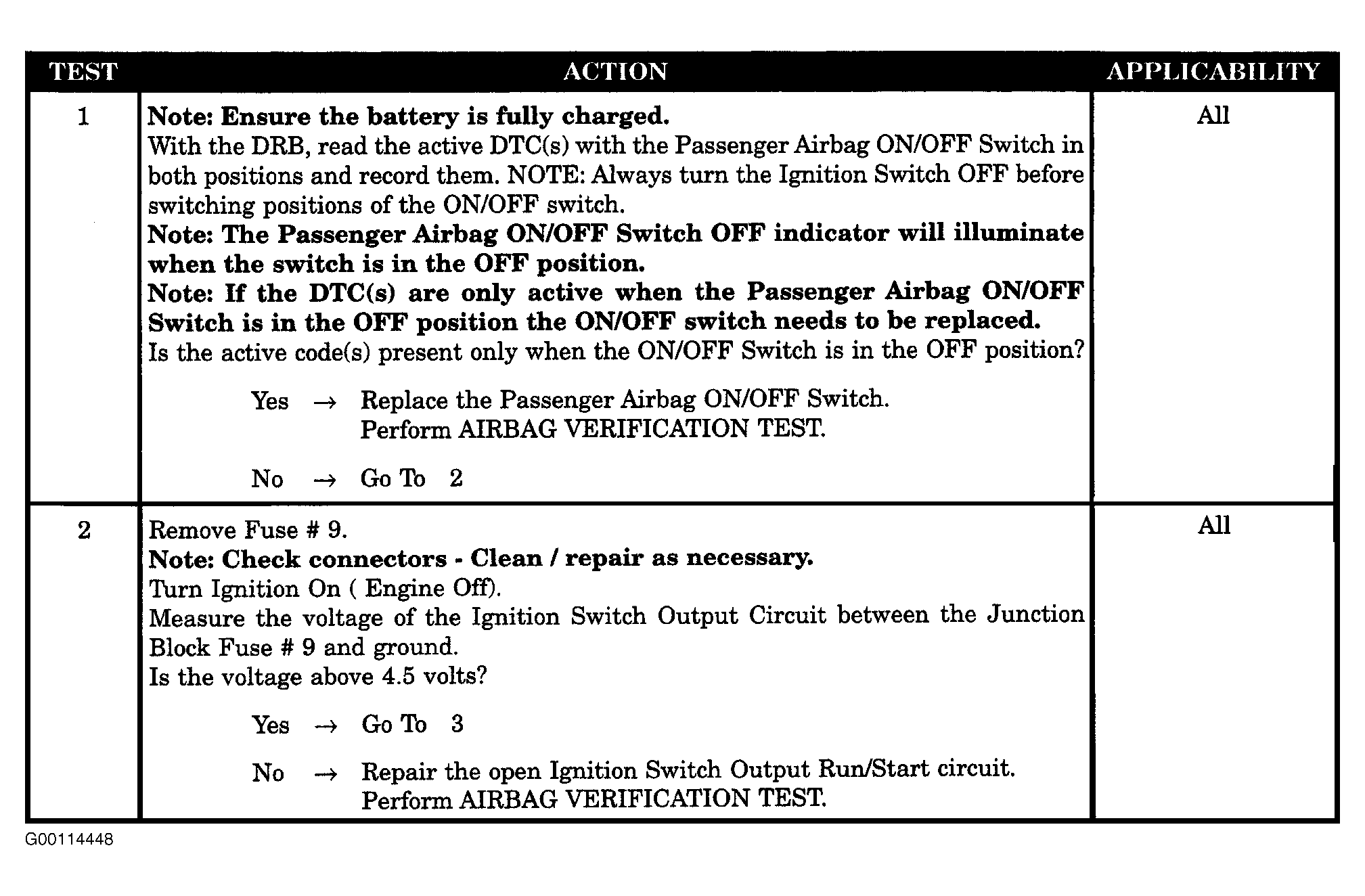

Fig 1: Loss Of Ignition Run/Start (Active) Test (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

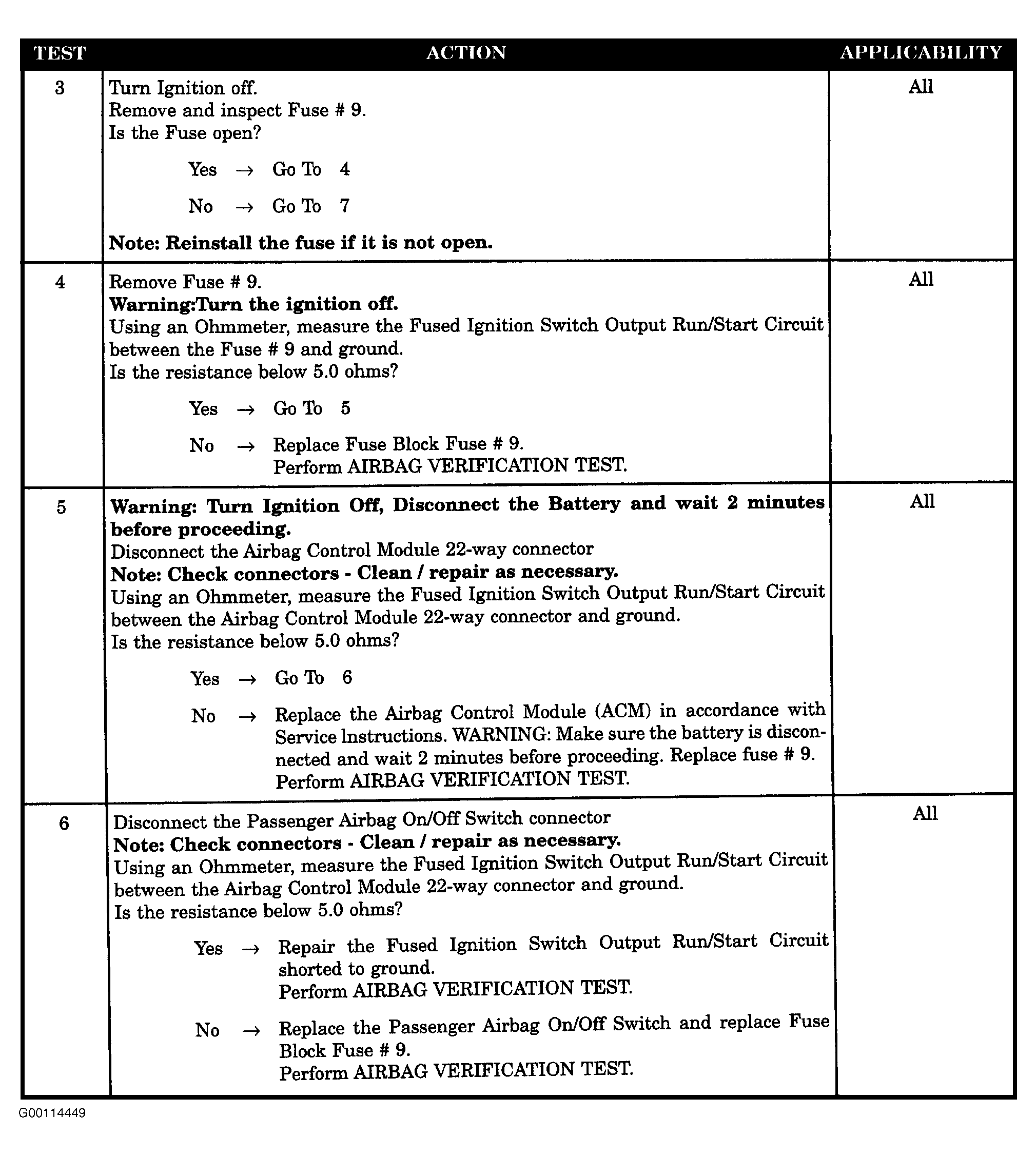

Fig 2: Loss Of Ignition Run/Start (Active) Test (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

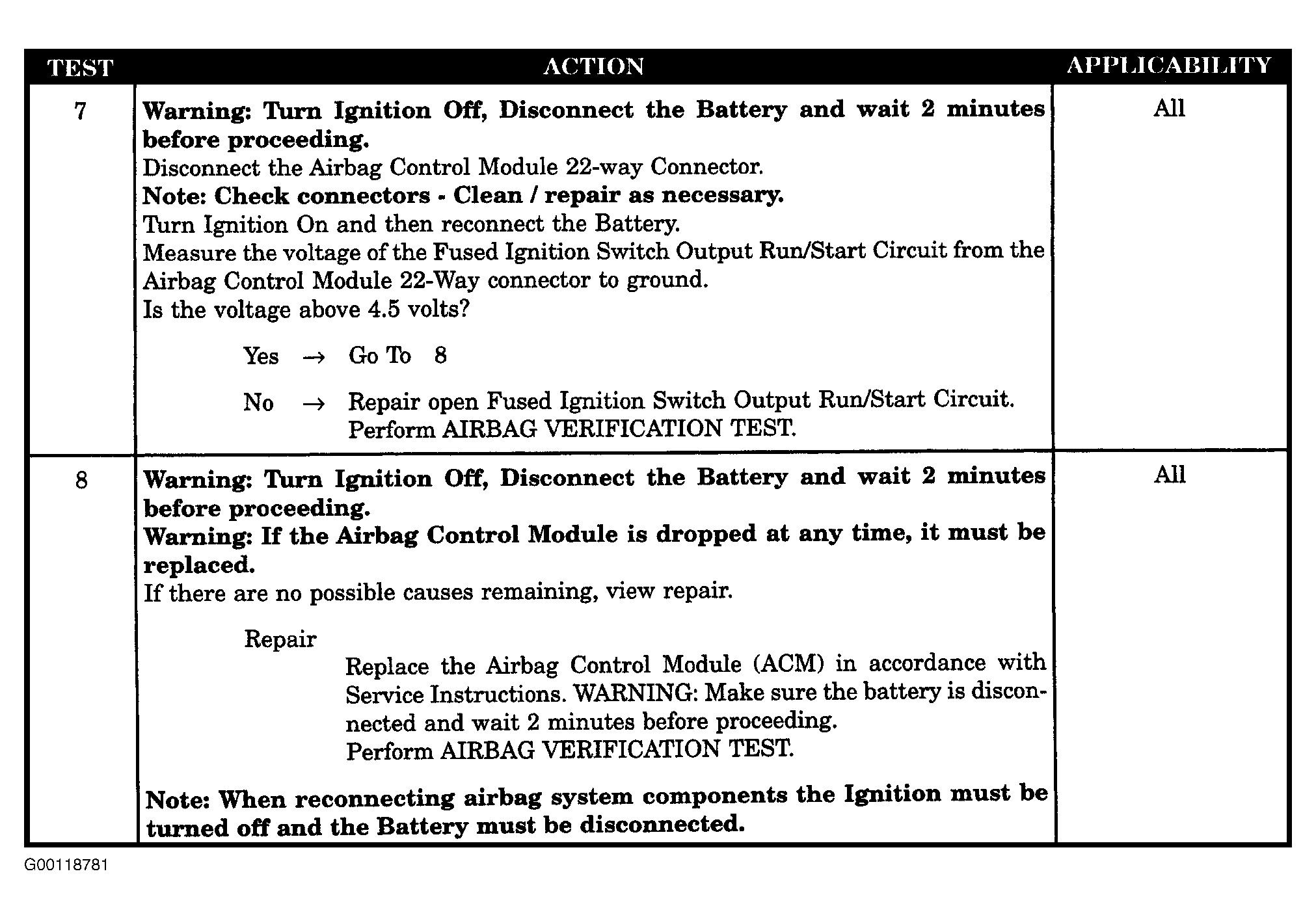

Fig 3: Loss Of Ignition Run/Start (Active) Test (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
