Driver Squib Circuit Open (Active): Testing

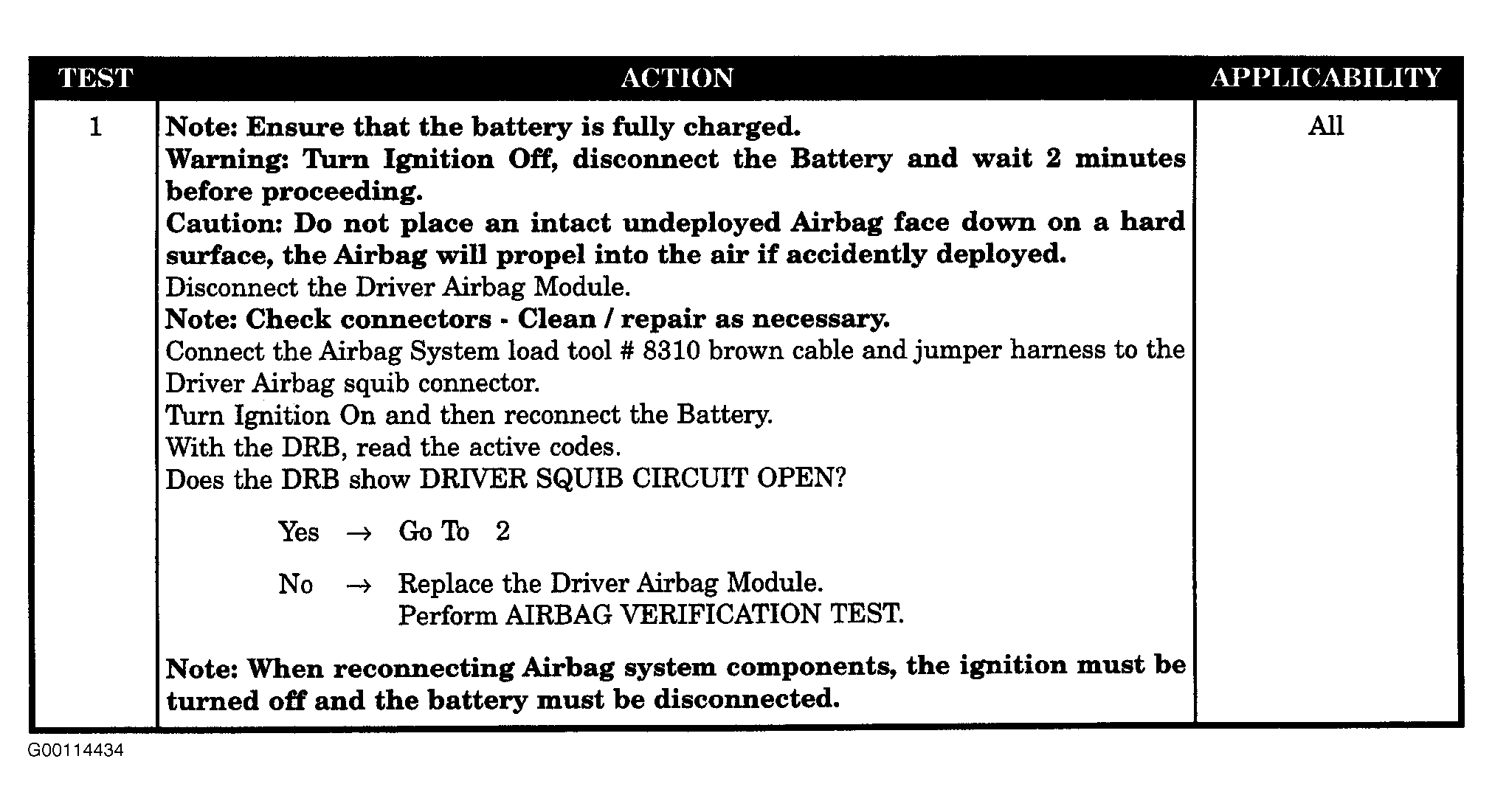

Fig 1: Driver Squib Circuit Open (Active) Test (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

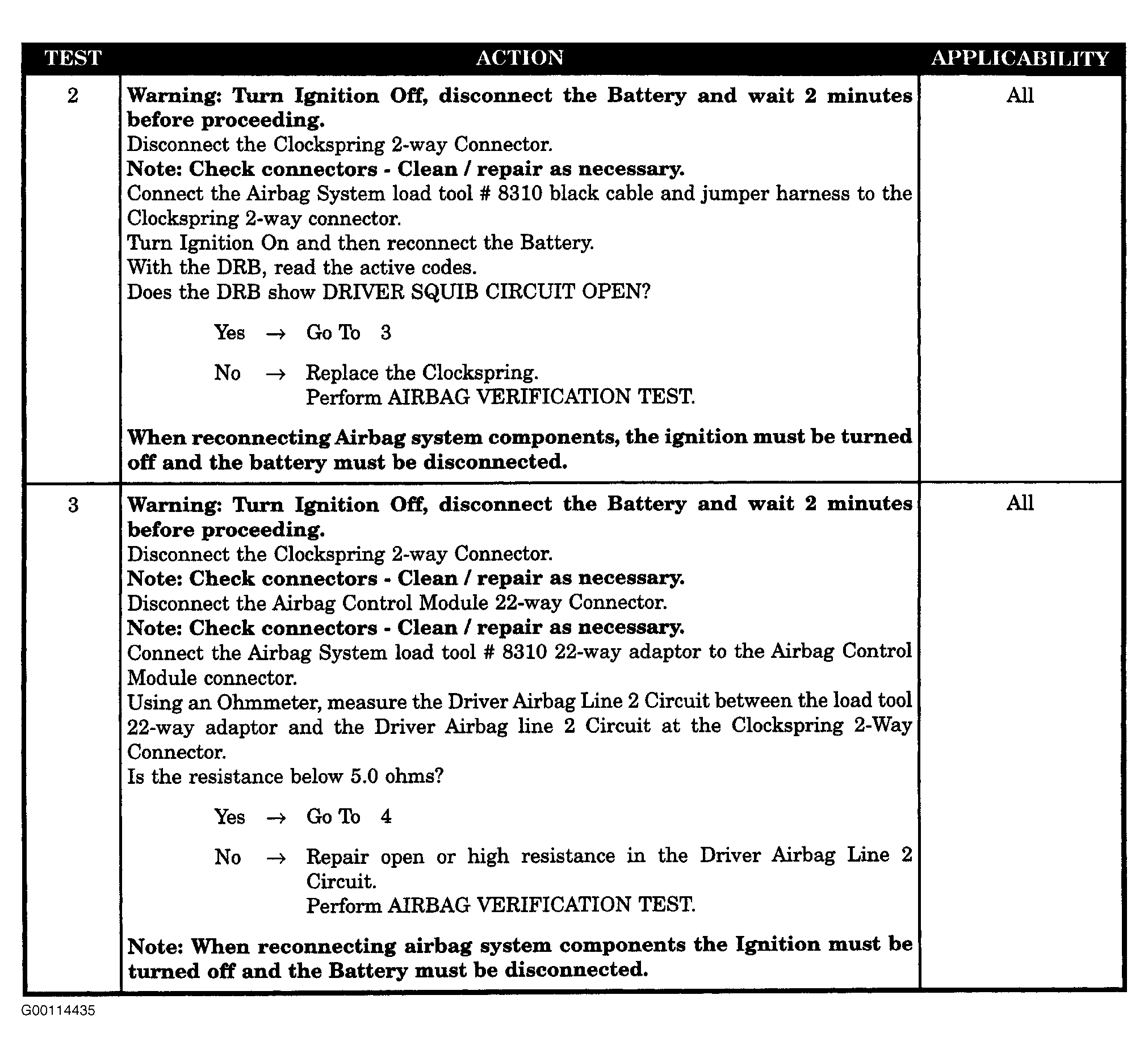

Fig 2: Driver Squib Circuit Open (Active) Test (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

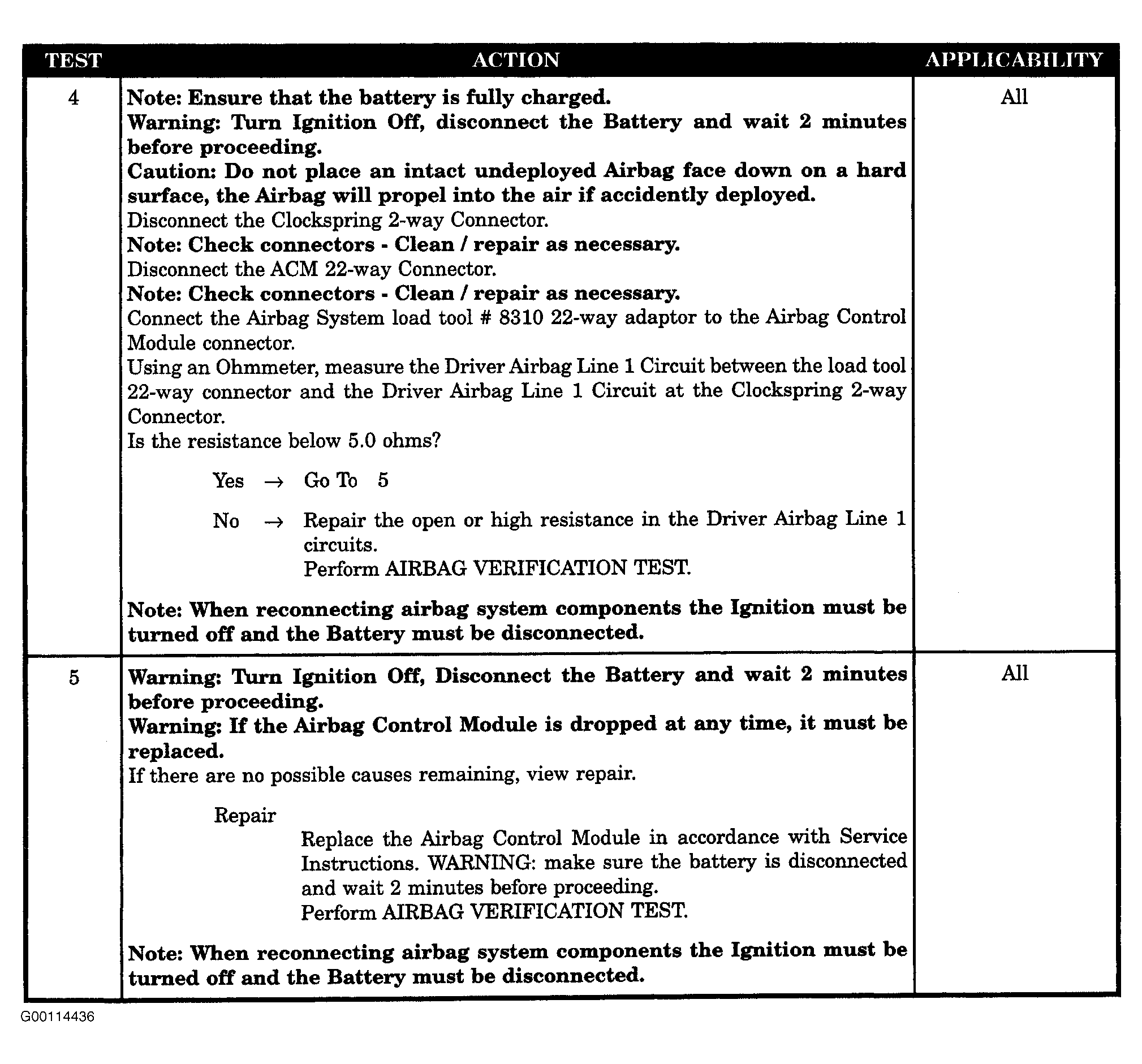

Fig 3: Driver Squib Circuit Open (Active) Test (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
