Fuel Level Sensor: Installation

  1. Install fuel level sensor on channels of fuel pump module. Ensure wires are properly routed. Slide fuel level sensor onto fuel pump module until fuel level sensor snaps into place. Ensure locking tab is fully seated.
  2. Install wires for fuel level sensor in electrical connector for fuel pump and fuel level sensor. Install locking collar. Install electrical connector for fuel pump and fuel level sensor on electrical connector on bottom side of electrical connector mounted on top of fuel pump module. Reinstall fuel pump module. To complete installation, reverse removal procedure.

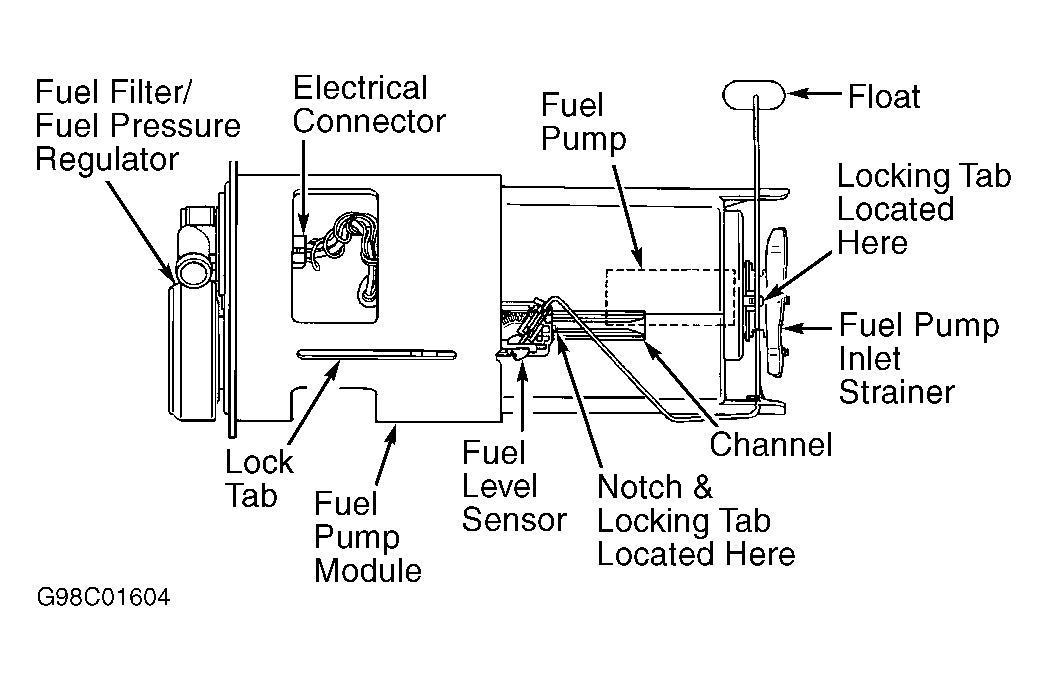

Fig 1: Identifying Fuel Level Sensor, Fuel Pump & Fuel Pump Inlet Strainer On Typical Fuel Pump Module
G98C01604Courtesy of CHRYSLER LLC
