Test VER-5A: Road Test For OBDII Trouble Codes

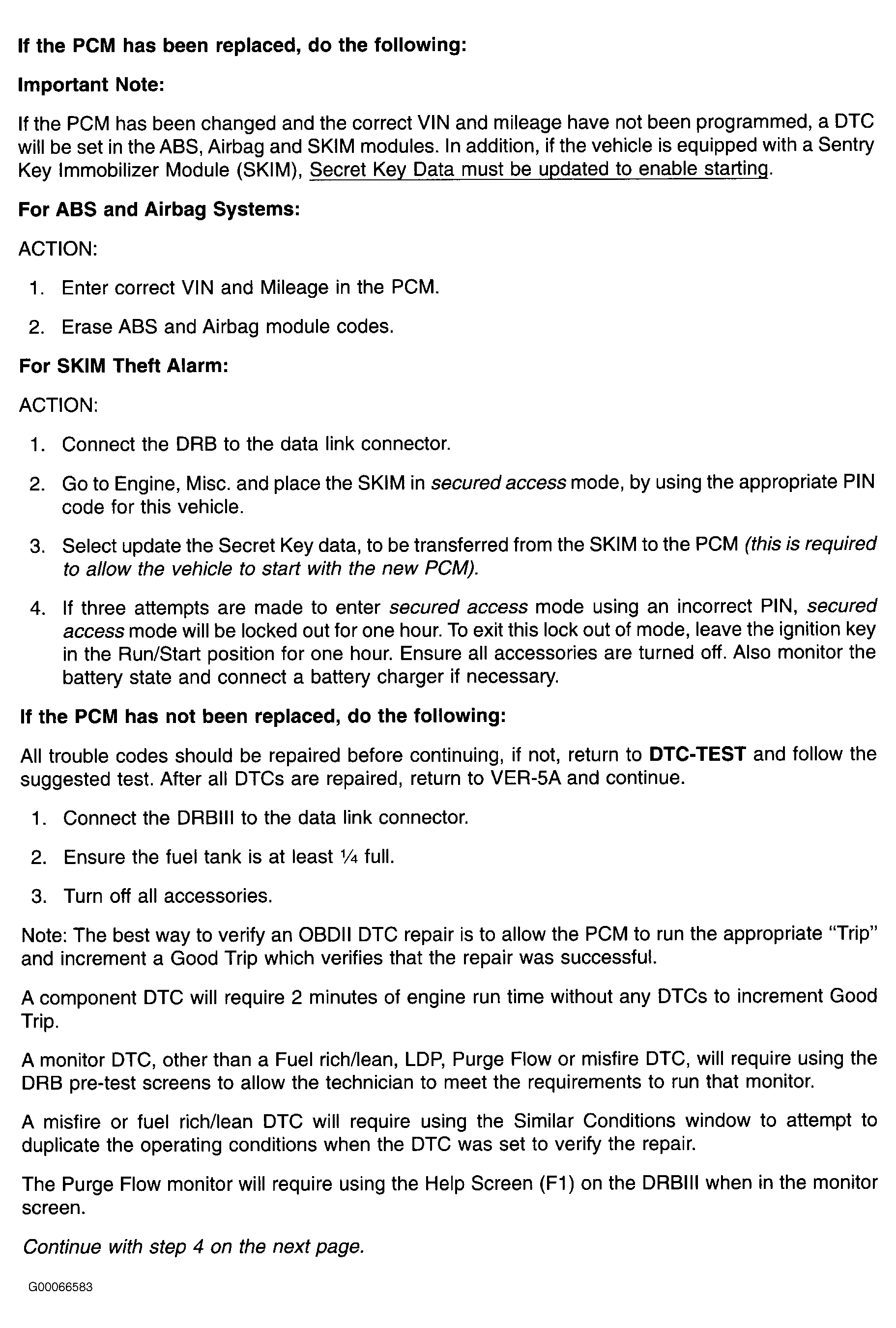

Fig 1: VER-5A: Road Test For OBDII Trouble Codes (1 Of 2)
G00066583Courtesy of DAIMLERCHRYSLER CORPORATION

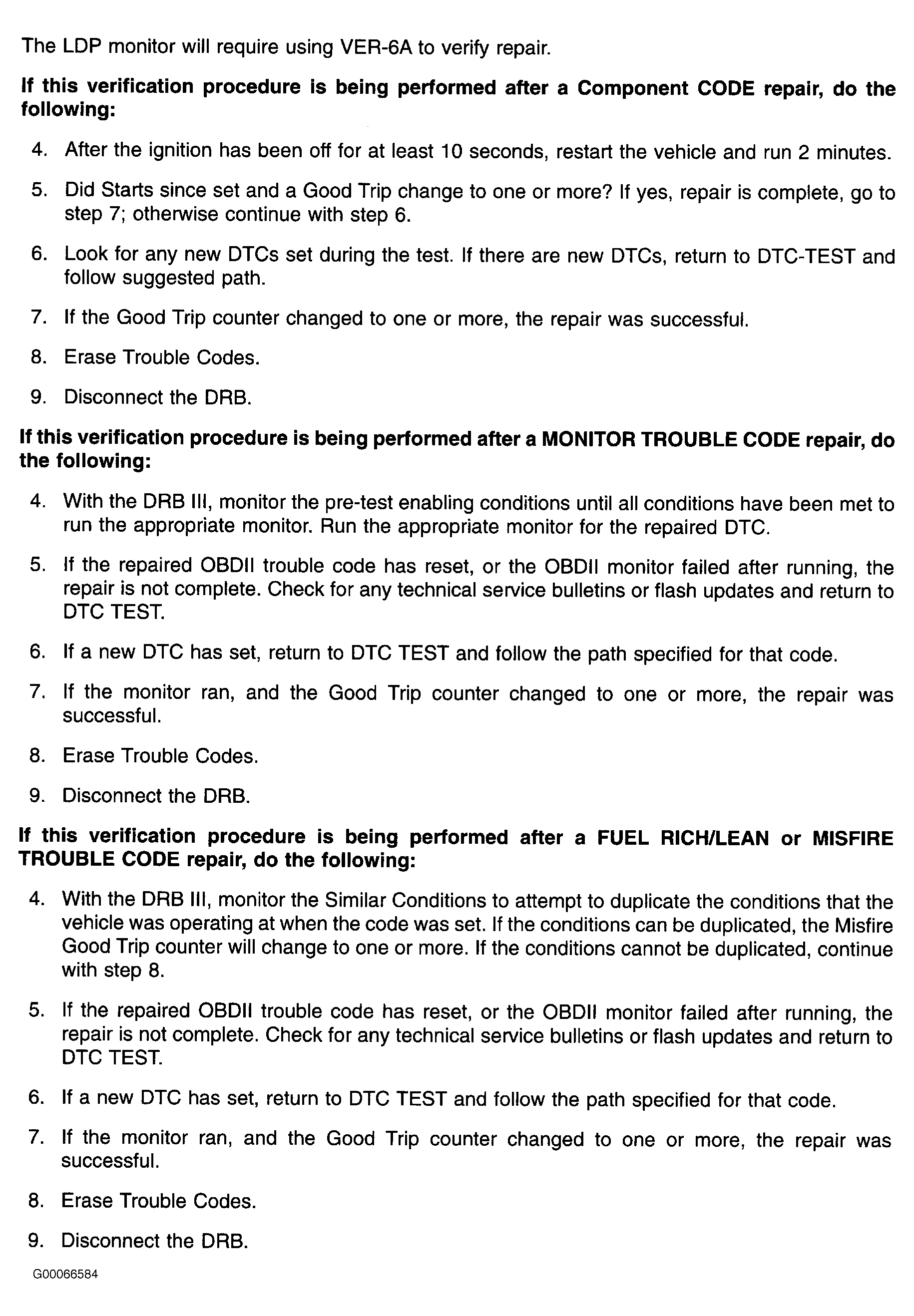

Fig 2: VER-5A: Road Test For OBDII Trouble Codes (2 Of 2)
G00066584Courtesy of DAIMLERCHRYSLER CORPORATION
